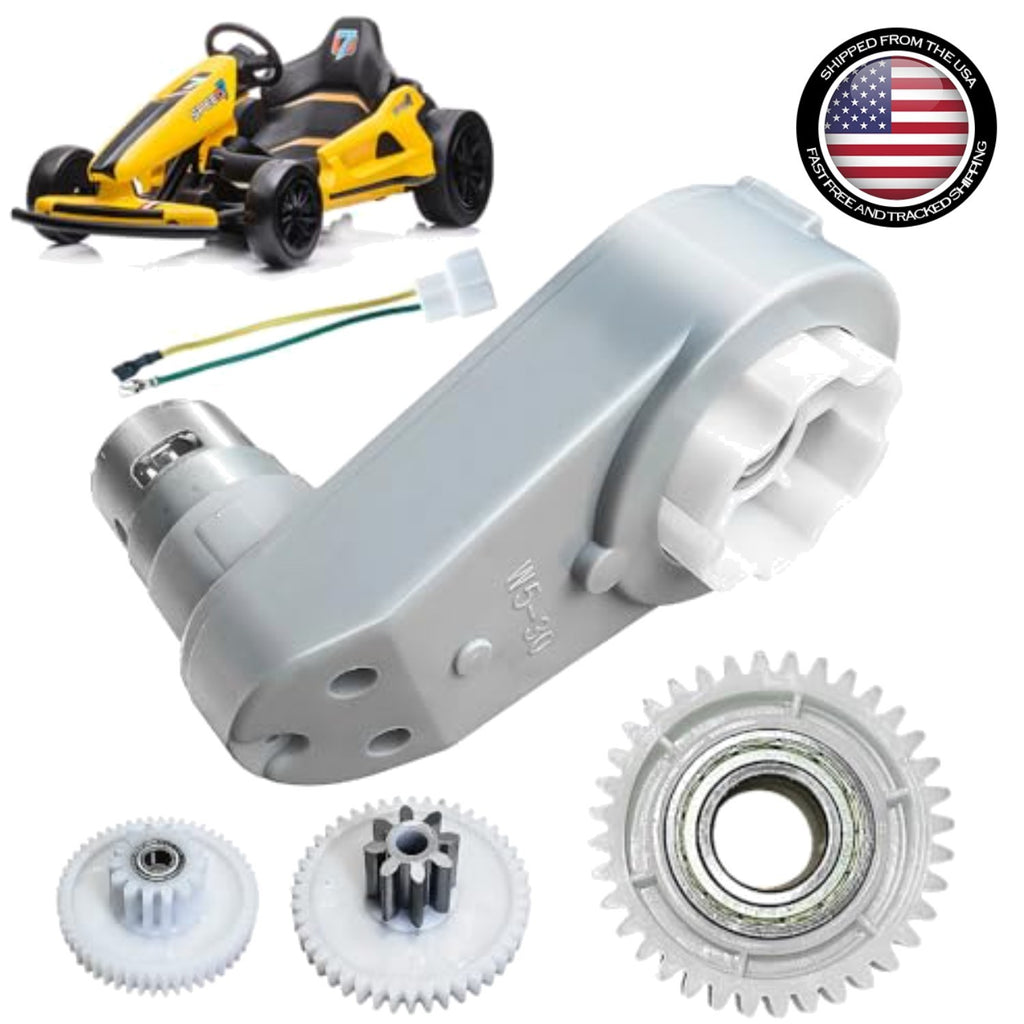

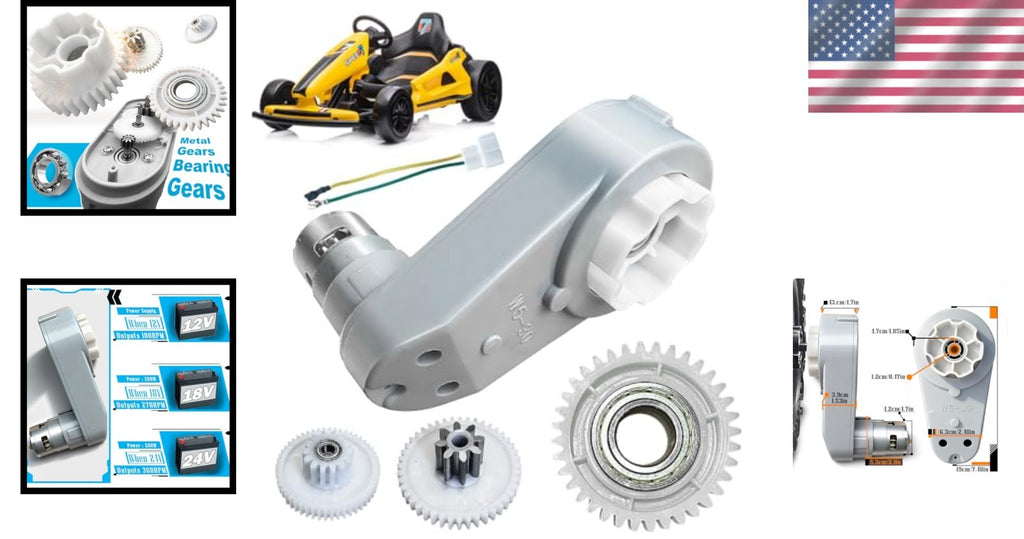

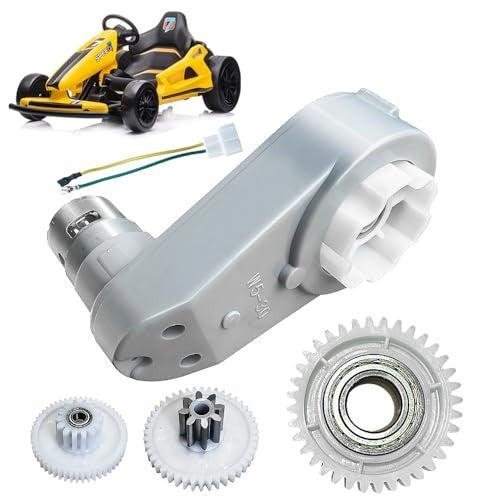

24V RS775 Motor Gearbox for Power Wheels
This RS775 gearbox motor is a drop-in upgrade for Power Wheels ride-on cars that run on 18V to 24V systems. It is built to deliver more torque and a higher output speed, so your child's ride can feel noticeably stronger.
Key Features

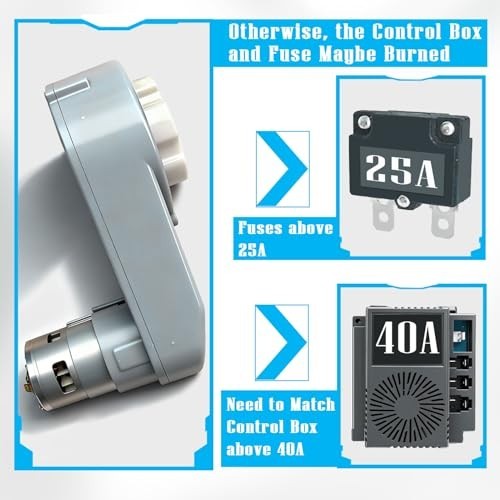

- High Power and Torque: Requires a control box rated at 40A or above and a fuse rated at 25A or above to protect the capacitor.

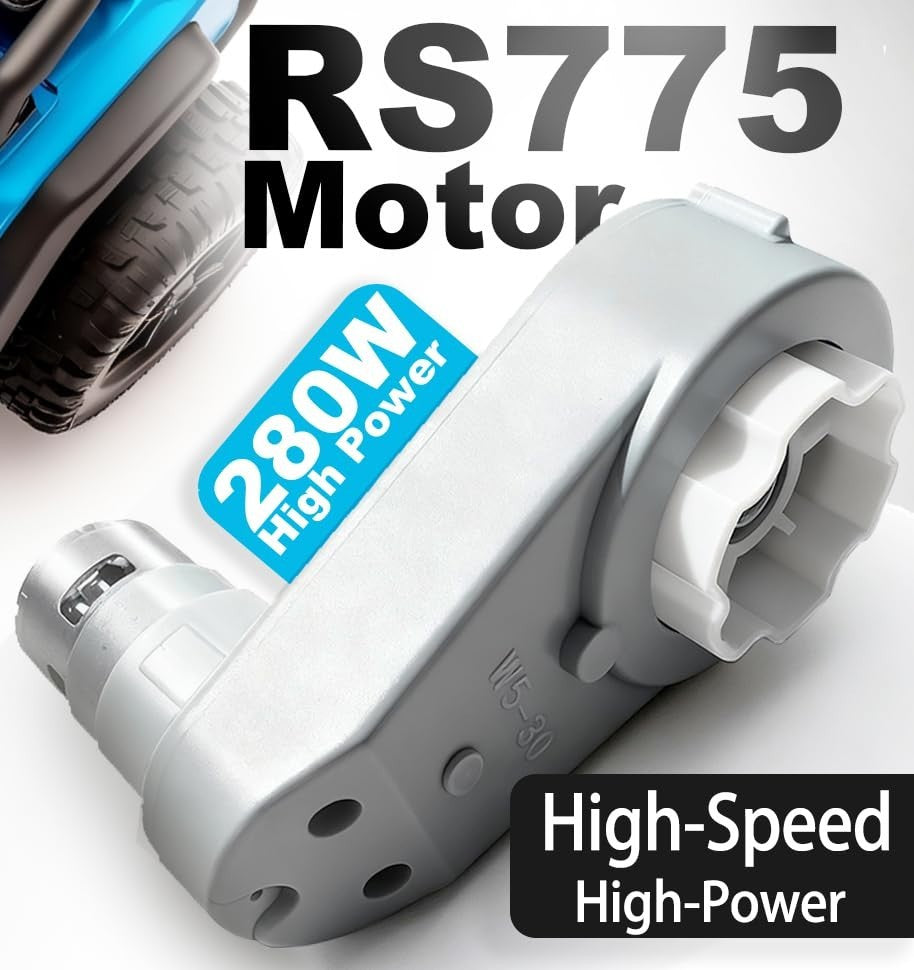

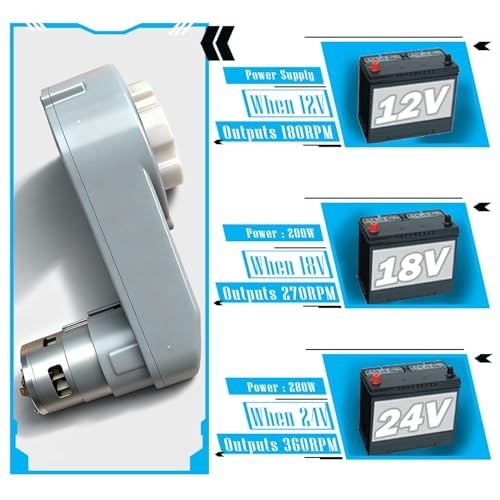

- Power Output: Rated up to 280W at 24V with a speed of 360 RPM. At 18V, it produces 200W at 270 RPM.
- Durable Shell: The gearbox housing is made from high-strength composite material that resists deformation.

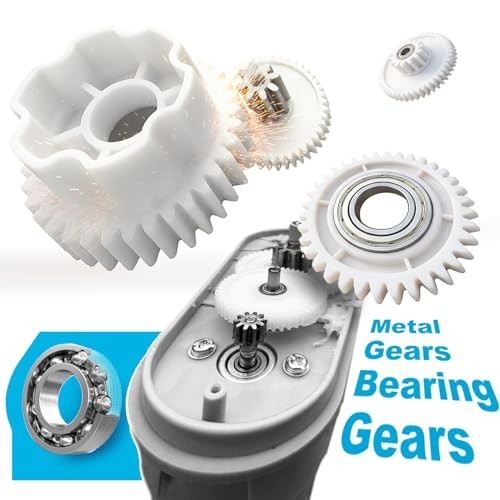

- Efficient Gear System: Built-in bearings in both the small and large gears reduce friction. The middle gear is metal for added durability.
- Speed Ratio: A 1:75 ratio provides higher output speeds.
- Easy Installation: One-click wiring connectors make replacement straightforward.
- Voltage Compatibility: Designed for 24V battery systems. It can also run on 12V, with reduced speeds.
Specifications

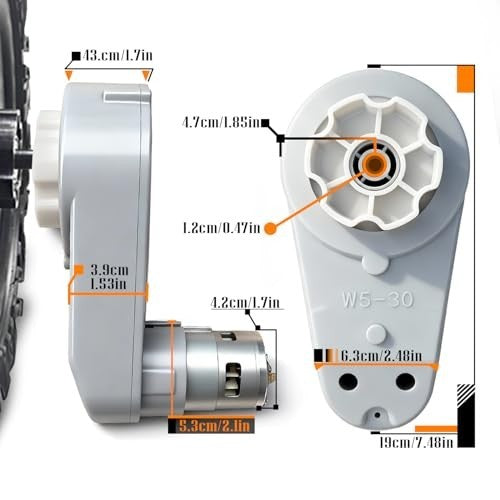

| Voltage: | 24V (designed for 18V to 24V systems) |
| Shaft Hole Diameter: | 12mm (0.47") |
| Length: | 185mm (7.28") |
| Max Width: | 92mm (3.62") |
| Motor Diameter: | 40mm (1.574") |
| Recommended Age Range: | 3-10 |
