24V RS775 High-Speed Motor Gearbox for Power Wheels Performance Upgrade

24 Volt RS775 High-Speed Motor Gearbox for Power Wheels Motor Upgrade

Product Description

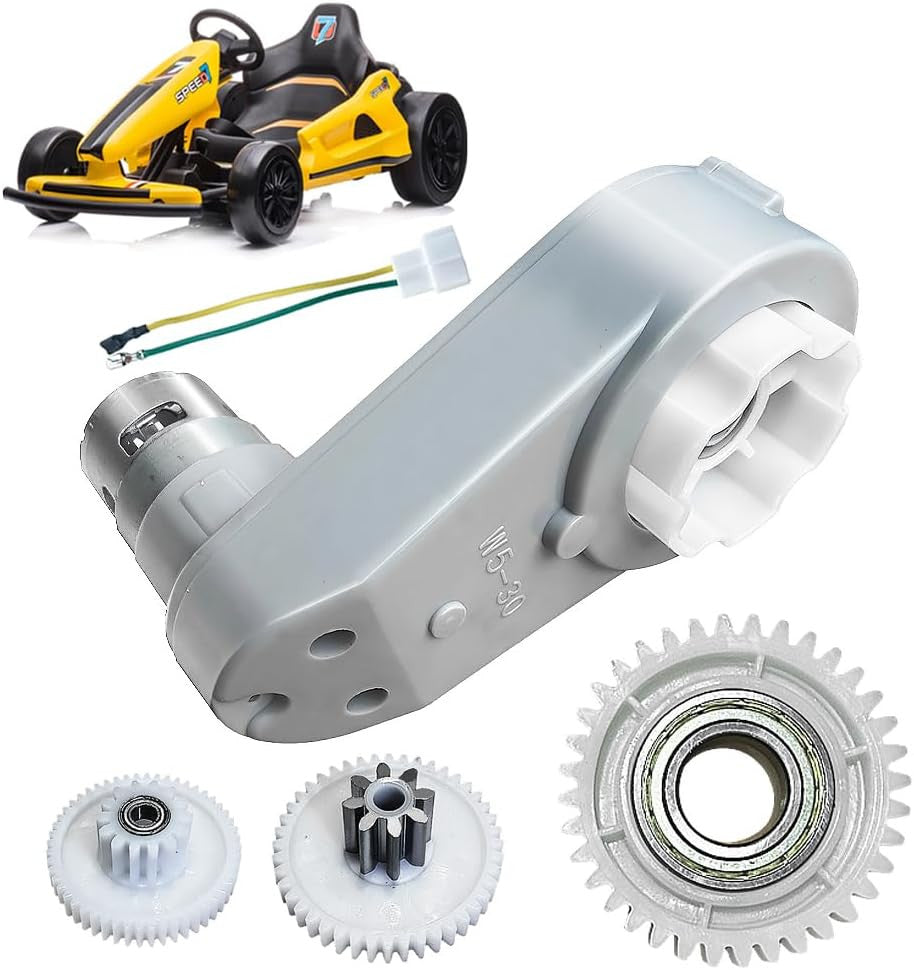

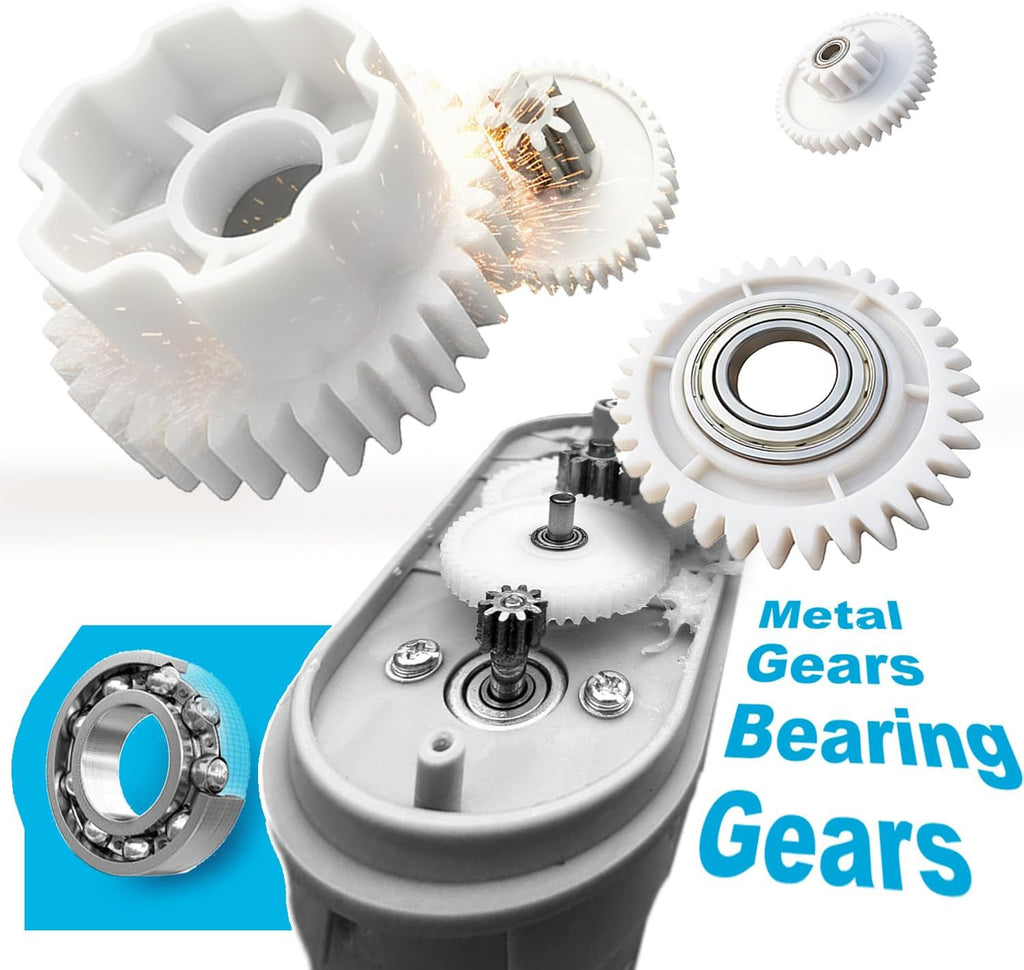

Material: Steel Gear + Bearing Gear + High-Power Motor

Key Features

• Voltage Range: 12V-24V. Optimal speed is achieved at 24V. Avoid exceeding 24V.
• Compatibility: Suitable for DIY modifications and prototype replacements. Measure carefully for compatibility.
• Installation: No professional installation required. User-friendly assembly with proper size measurements.

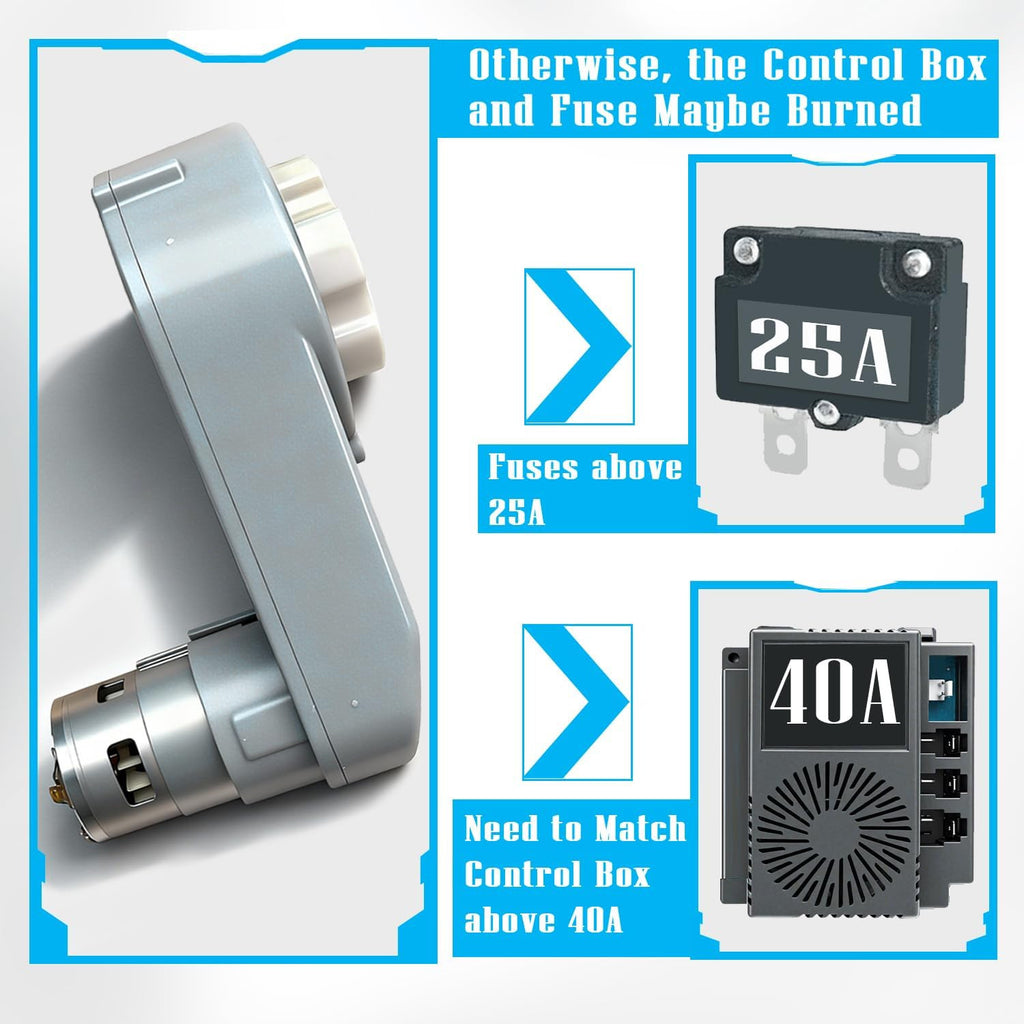

• Installation Instructions: Requires a controller of 40A or above and a fuse of 25A or above. Motor sides are interchangeable.
• Outdoor Use: Designed for power wheel upgrades and DIY electrical projects. Suitable for all environments.

Customer Insights

• Ensure to compare size data as the RS775 motor is larger than the RS550 motor gearbox.
• Double-check size, voltage, and power requirements before purchasing.

Specifications

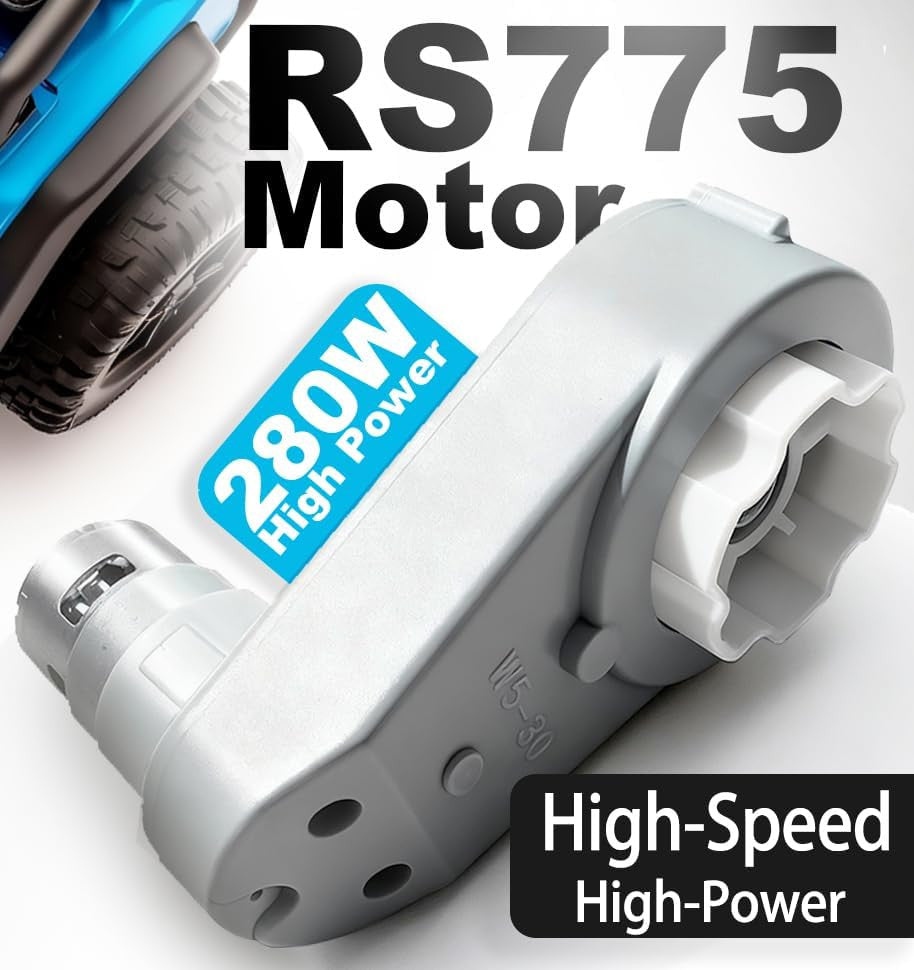

• W5-30 RS775 24 Volt 280 Watt Drive Engine with Gearbox for Power Wheel Motor Upgrade (18V).

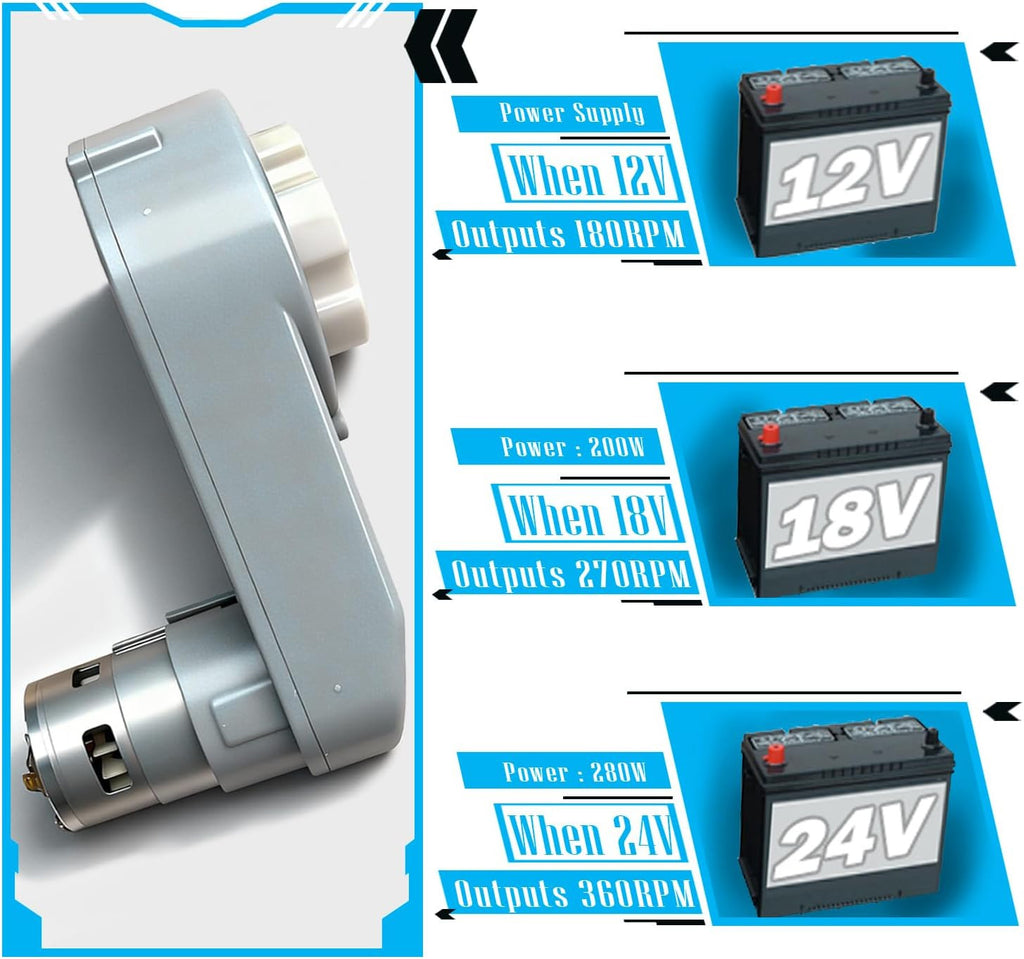

• Power Output: 280W at 24V (360 RPM), 200W at 18V (270 RPM), and 180 RPM at 12V.

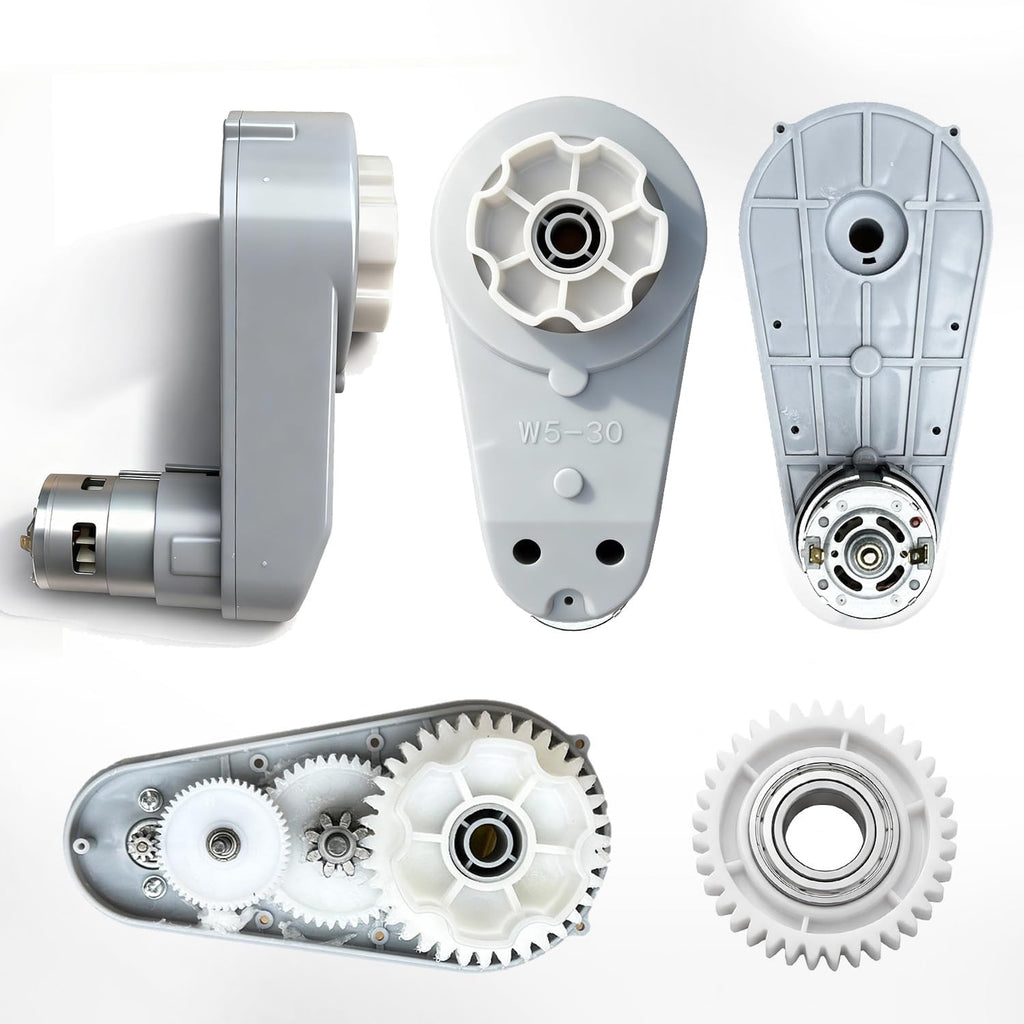

• Gearbox Shell: Made from high-strength composite materials, equipped with built-in bearings to reduce friction.
• Gearbox Speed Ratio: 1:75 for high output speed and torque.

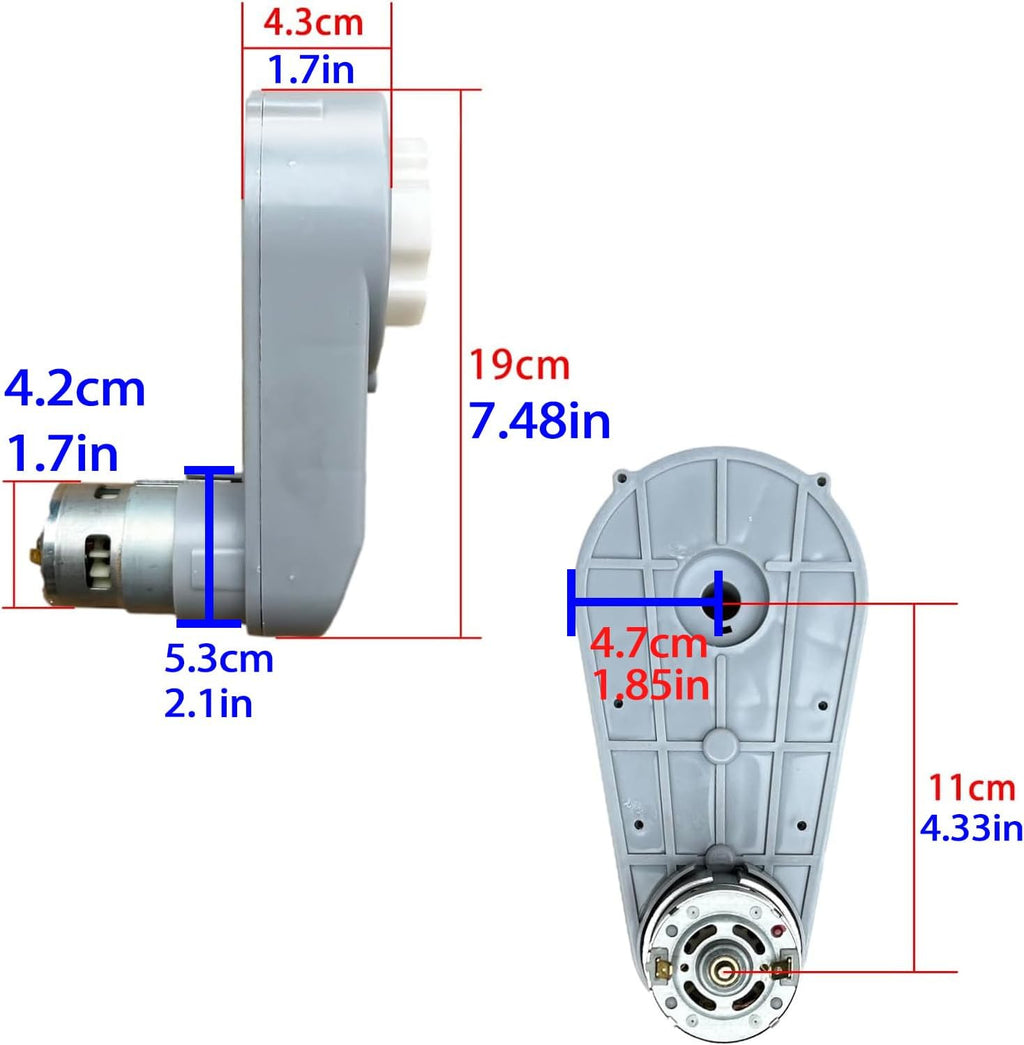

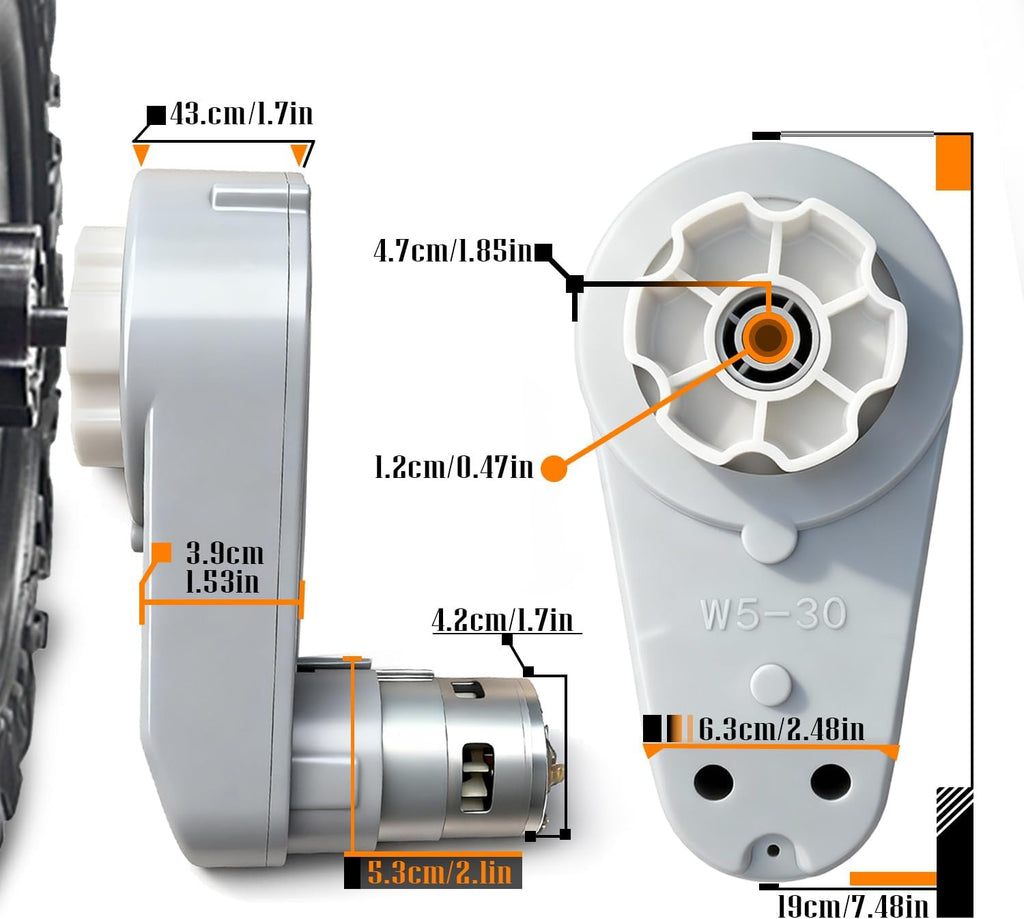

• Dimensions: Shaft Hole Diameter: 12mm (0.47"), Length: 185mm (7.28"), Max Width: 92mm (3.62"), Motor Diameter: 40mm (1.574").
• Designed to operate with a 24V battery; can be used with a 12V battery for reduced speed.
• Installation holes are larger than those of RS550; measure dimensions carefully for proper installation.

Important Notes

Do not exceed 24V power supply. The RS775 motor size is larger than the RS550 motor. If steering errors occur, simply swap the motor cable connections.
