24 Volt RS775 High-Speed Motor Gearbox for Power Wheels Motor Upgrade

Product Description

Material: Steel Gear, Bearing Gear, High-Power Motor

Voltage Range: 12V-24V (Optimal speed at 24V)

Please measure the size before purchasing.

Key Features

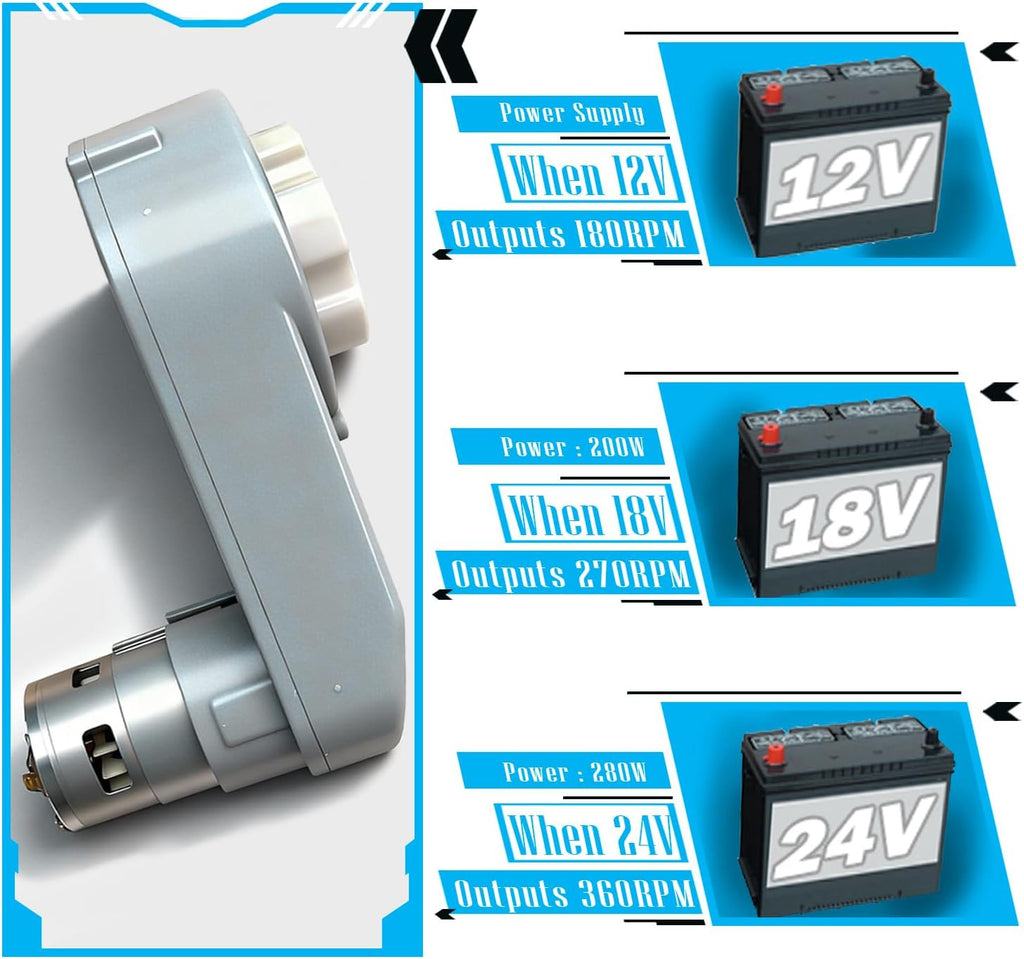

• Power: 280W at 24V; 200W at 18V; 180W at 12V
• Speed: 360 RPM at 24V; 270 RPM at 18V; 180 RPM at 12V
• Gearbox Speed Ratio: 1:75 for high-speed output

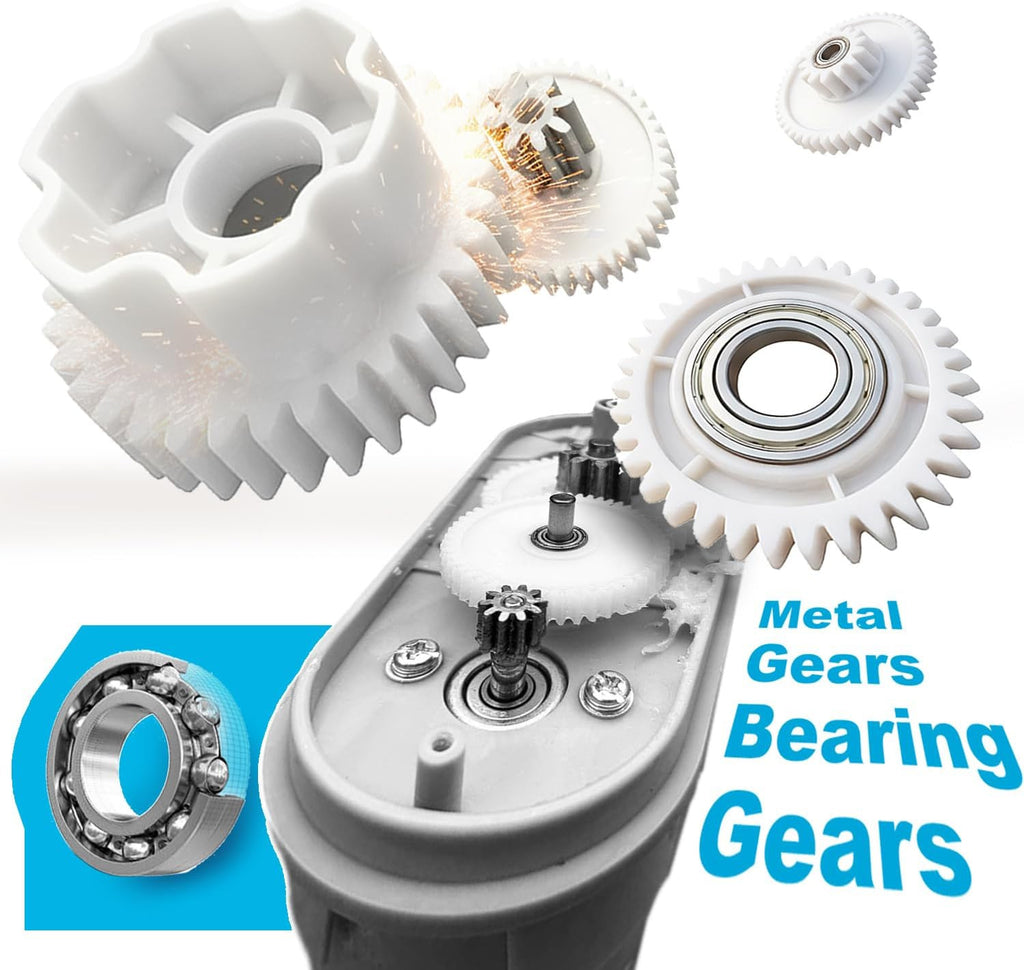

• Material: High-strength composite for durability, with built-in bearings to reduce friction
• Shaft Hole Diameter: 12mm (0.47")

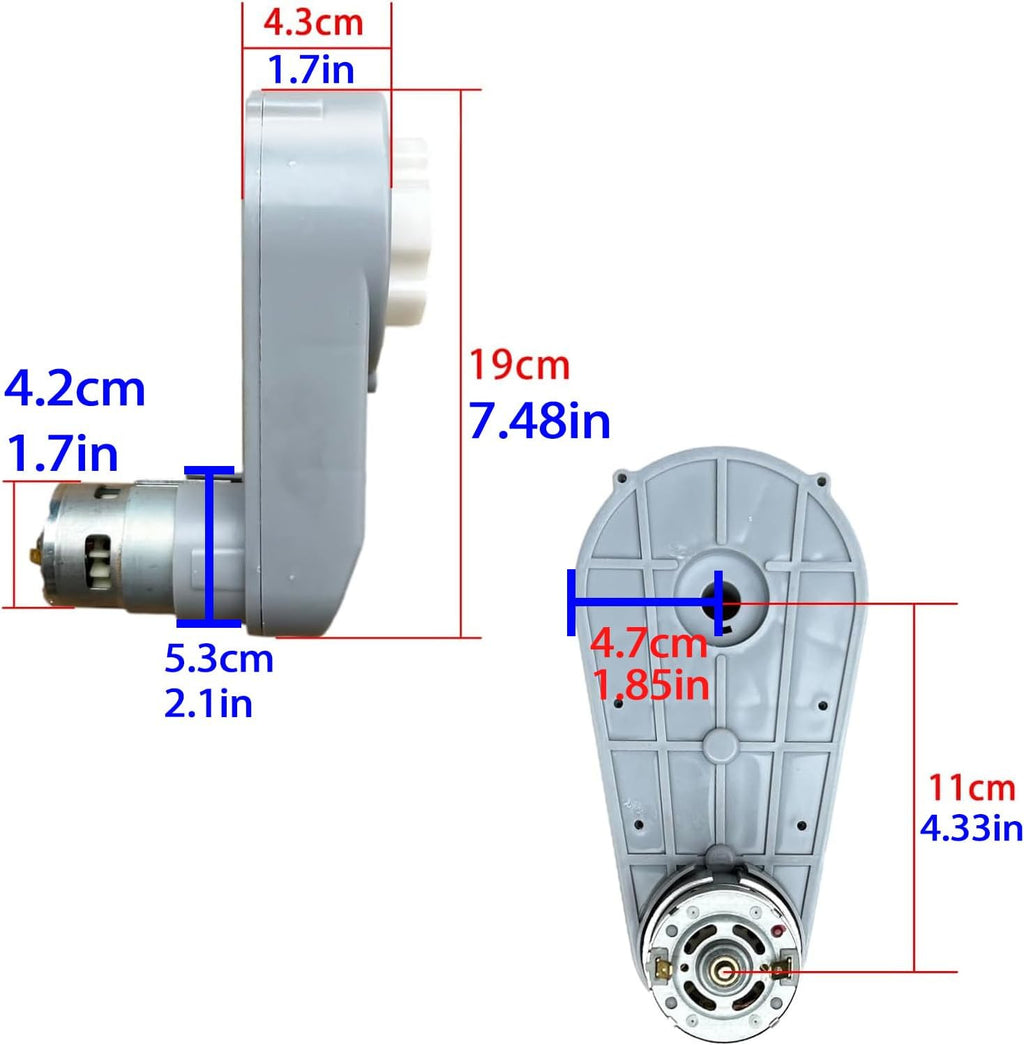

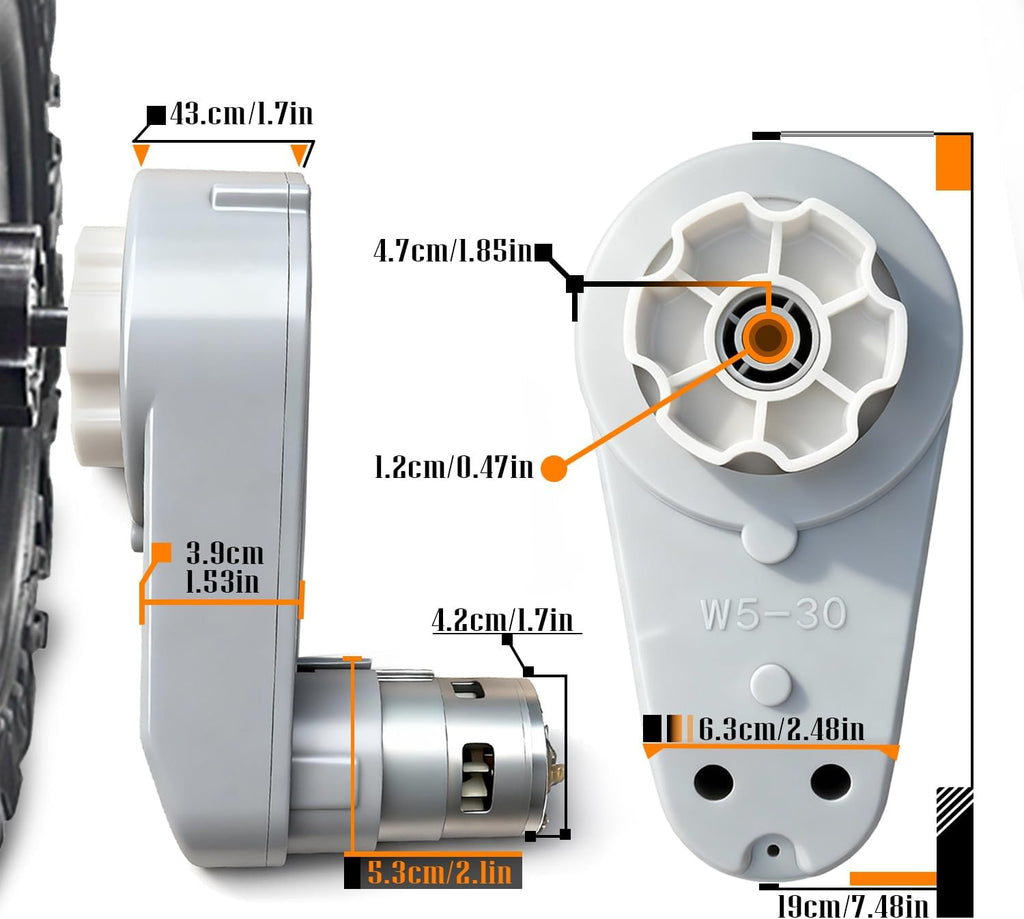

• Dimensions: Length: 185mm (7.28"), Max Width: 92mm (3.62"), Motor Diameter: 40mm (1.574")

Compatibility

This motor is suitable for DIY modifications and prototype replacements. Ensure compatibility by measuring your original motor gearbox.

Installation

No professional installation is required, but careful measurement is necessary for proper fit.

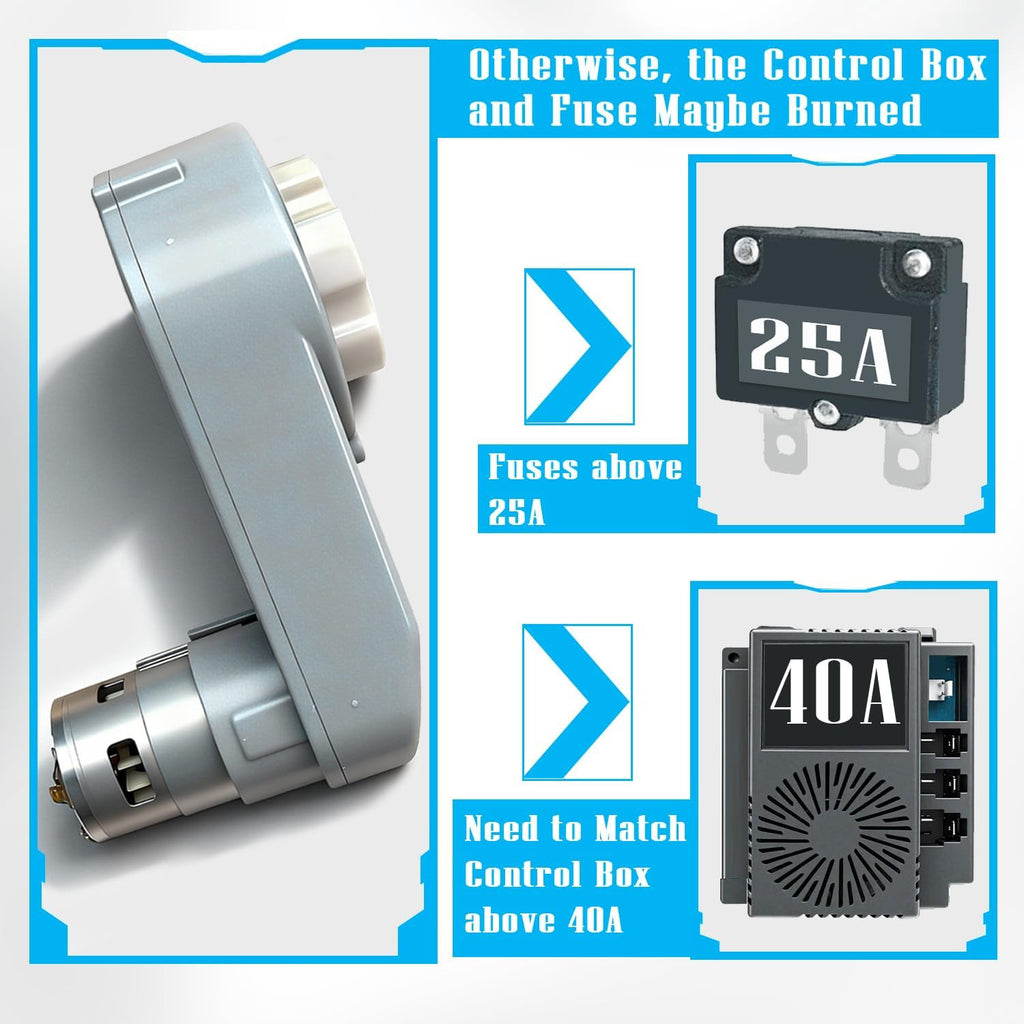

Requires a 40A high-power controller and a 25A fuse to avoid damage.

Installation holes may differ from RS550; ensure correct measurements before purchase.

Outdoor Use

This motor can be used for power wheel upgrades and various DIY electrical projects in outdoor environments.

Customer Feedback

Customers emphasize the importance of size comparison. The RS775 motor is larger than the RS550 motor; please check dimensions for proper installation.

Important Notes

• Do not exceed a power supply of 24V.
• If steering error occurs, adjust the motor cable sequence.
