Description
24 Volt RS775 High-Speed Motor Gearbox for Power Wheels Motor Upgrade
| Number of Packs | 1 |
| Set Name | 24V RS775 Motor GearBox Set (1 Piece) |
| Unit Count | 1 Count |

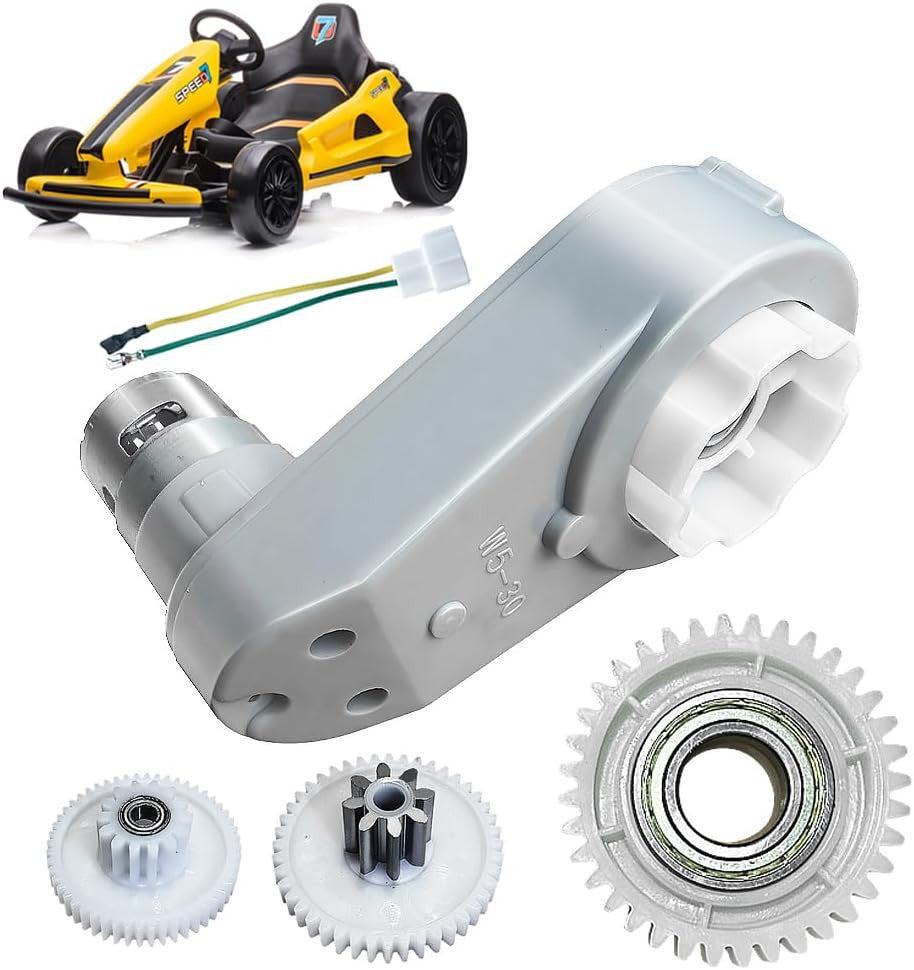

| Included Components | Motor, Gearbox, Cable |
| Item Type | 24V Power Wheels Motor |
| Model Number | 24 Volt RS775 |
| Manufacturer Part Number | 775 |
| Recommended Age | 0 - 7 years |
| Number of Players | 1 |
| Educational Objective | DIY Electrical Project, Power Wheels Motor Upgrade |
| Power Source | Battery Powered |
| Supported Battery Types | 24V (12V with reduced speed) |
| Operation Mode | Automatic |
| Theme | Toys |
| Color | Grey |
| Subject Character | Power Wheels |
| Size | Large, Small |
| Item Dimensions | 7.48 x 3.74 x 4.92 inches |
| Material Type | Metal, Plastic |
Important Information

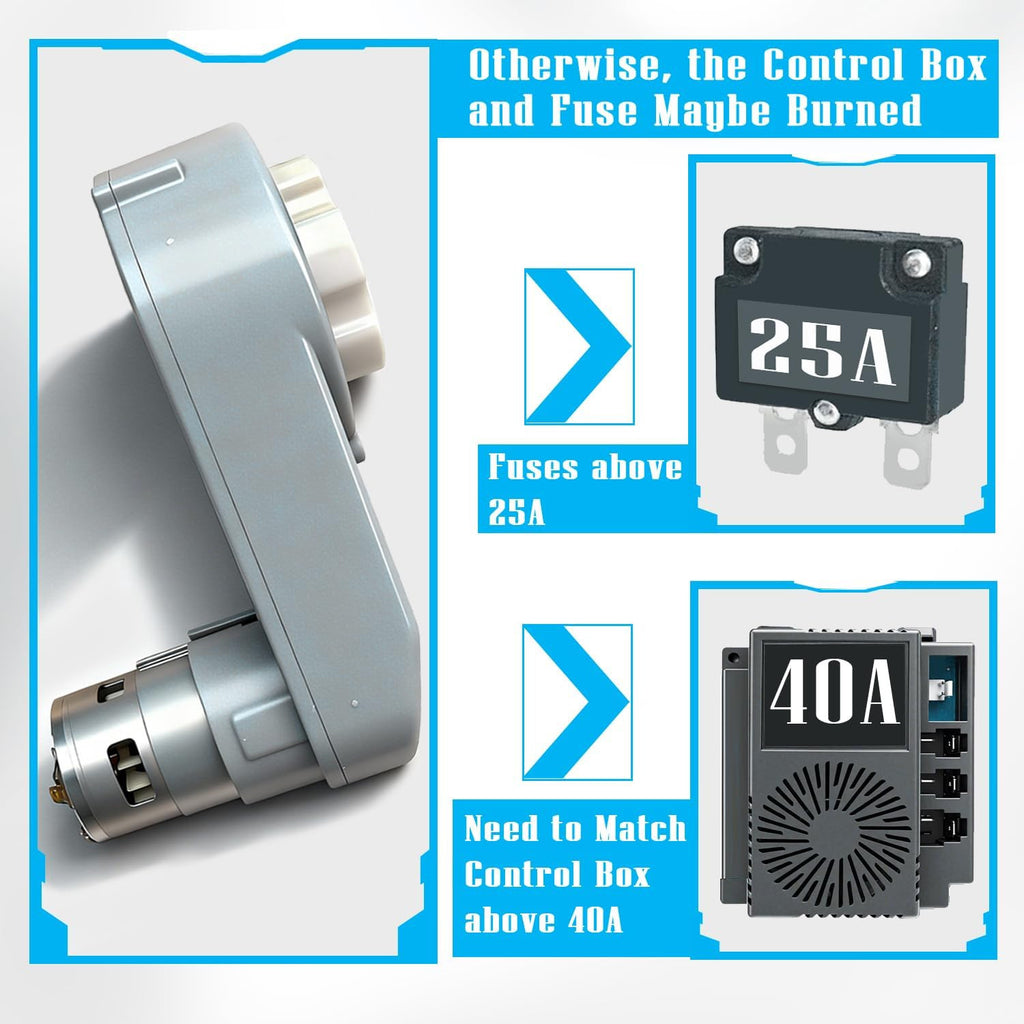

For optimal performance, we recommend using this motor with a 40A high-power controller and a 25A fuse.
Voltage Range
The motor operates within a voltage range of 12V to 24V. Using a power supply above 24V is not recommended. Speed will decrease when using a 12V supply.
Compatibility
This motor is suitable for DIY modifications and replacements. Please measure existing components carefully before upgrading.
Installation
No professional installation is required. You can assemble it yourself, but ensure that the motor size matches your model.
Usage Instructions
Requires pairing with a controller rated at 40A or above and a fuse rated at 25A or above. The motor does not need to be distinguished between left and right sides. If steering issues occur, simply adjust the motor cable sequence.
Outdoor Use
This motor can be used for outdoor applications, making it ideal for various DIY electrical projects.
Customers are advised to compare size data, as the RS775 motor is larger than the RS550 motor. Ensure compatibility before purchase.
Additional Considerations

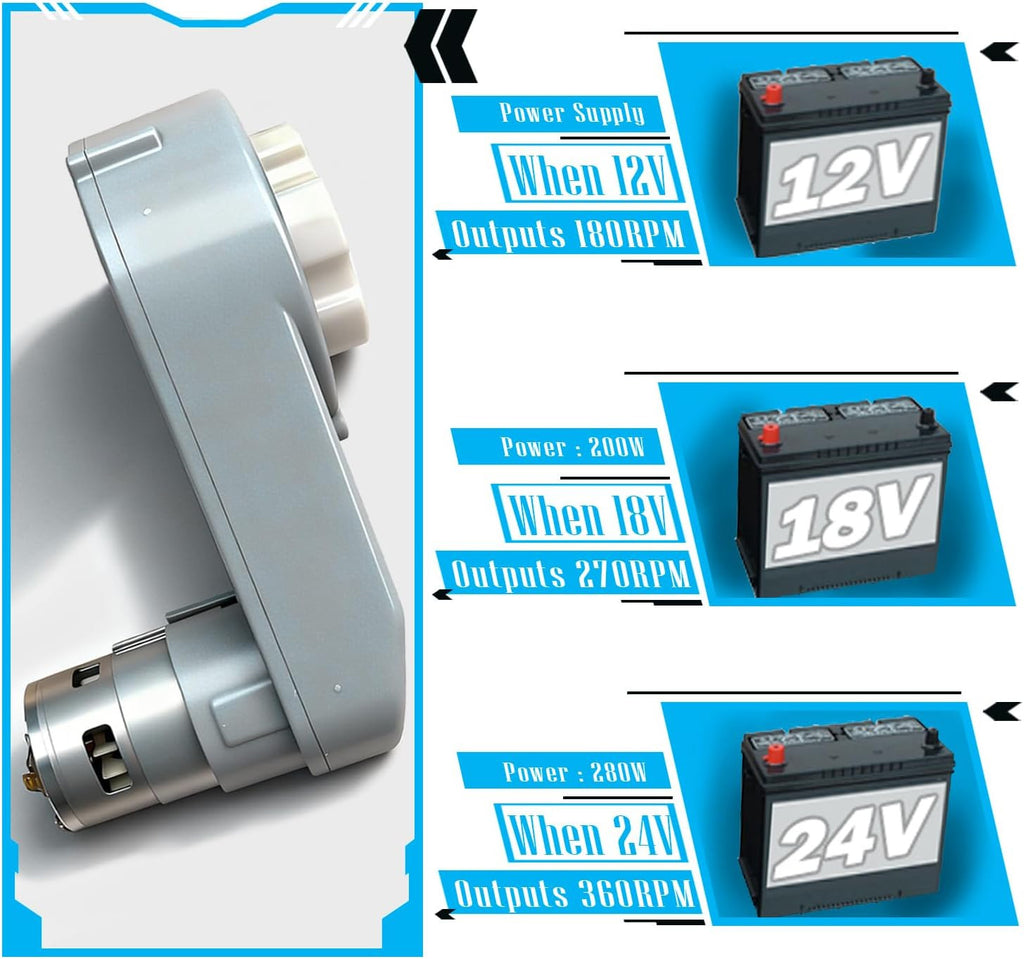

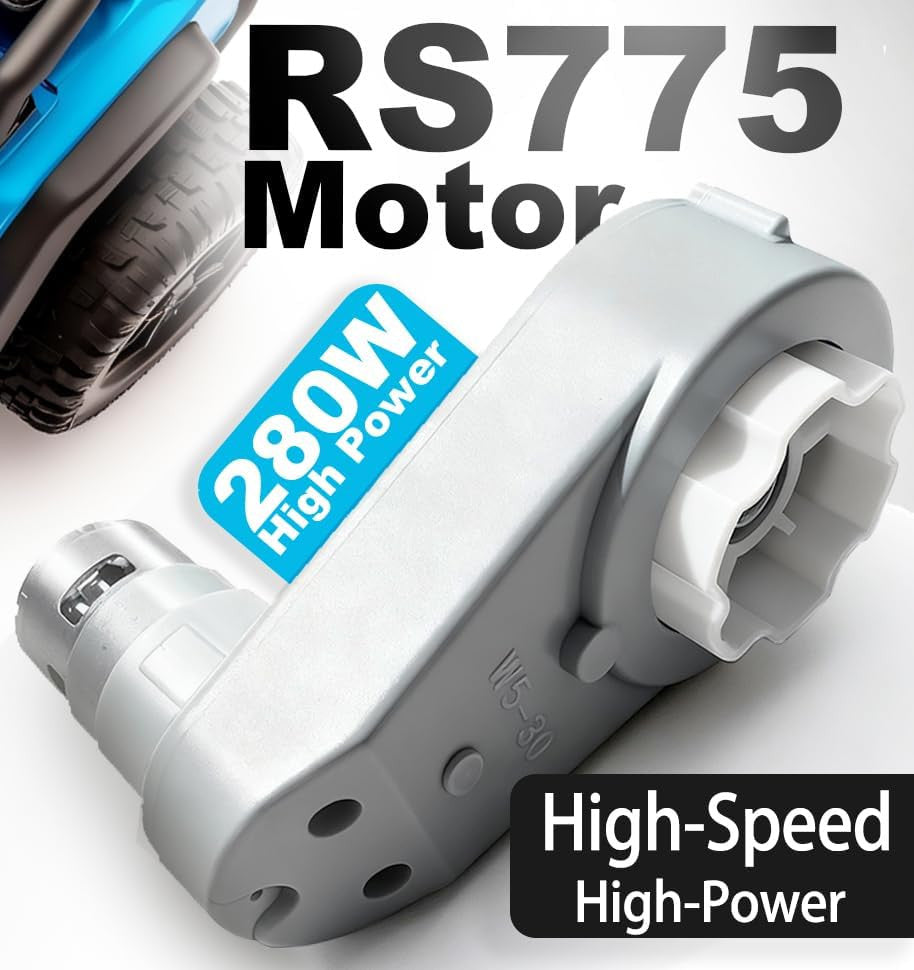

- Motor power is 280W at 24V, delivering 360 RPM. At 18V, it provides 200W and 270 RPM, and at 12V, it outputs 180 RPM.

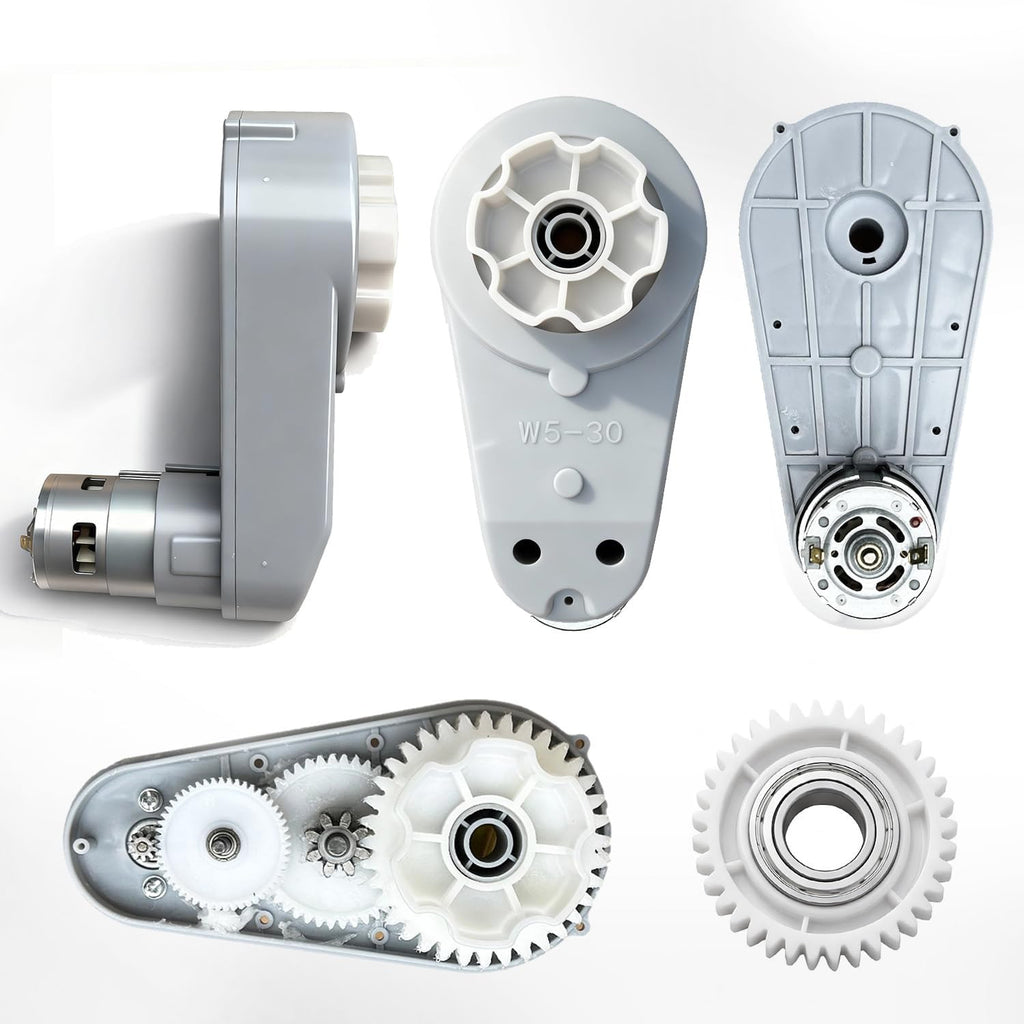

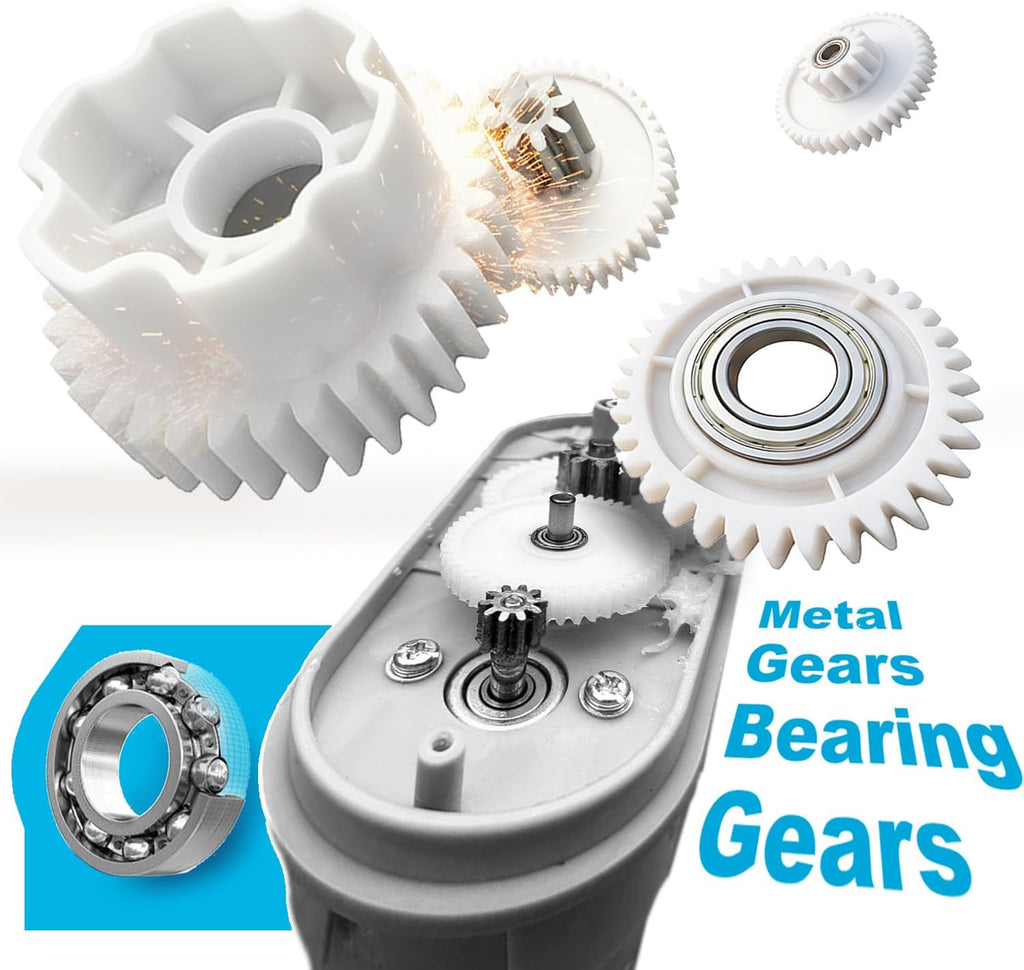

- The gearbox is made from high-strength composite materials for durability.
- Speed ratio of 1:75 ensures high-speed output and torque.

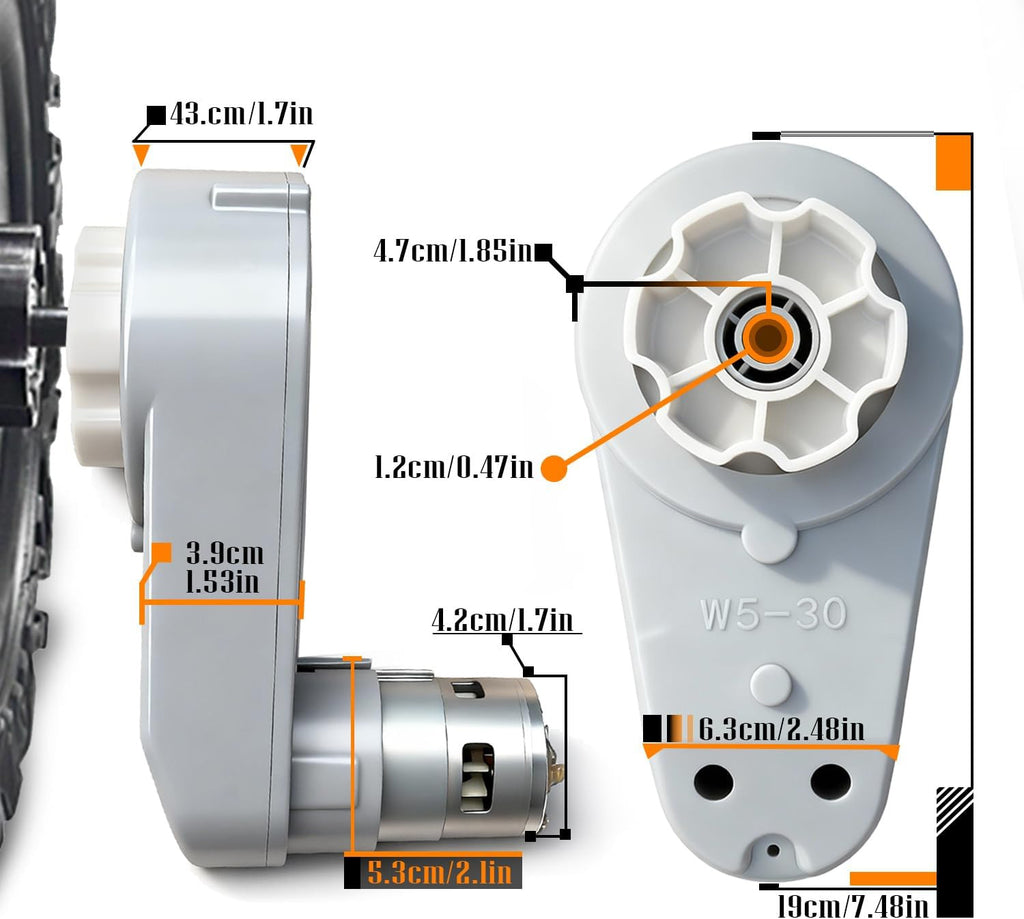

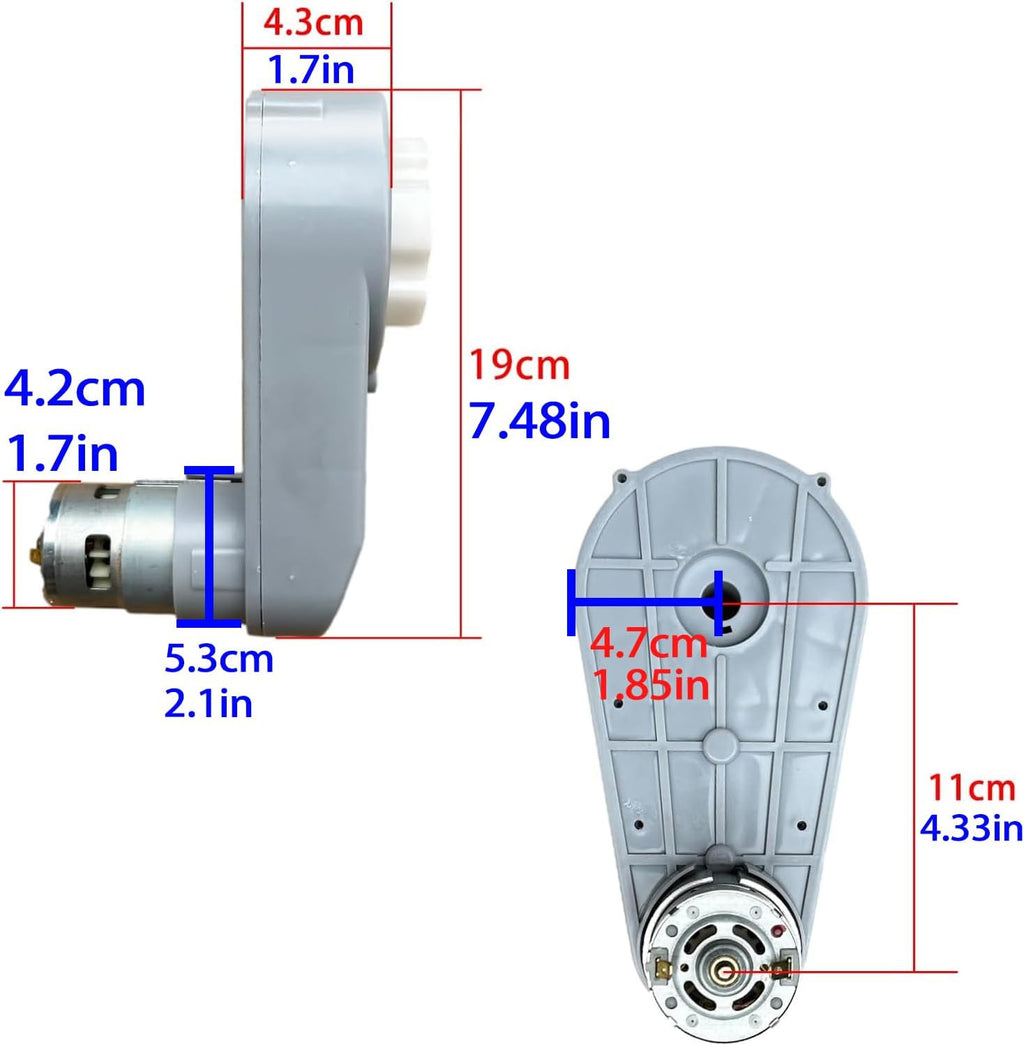

- Carefully compare dimensions: Shaft hole diameter is 12mm (0.47"), length is 185mm (7.28"), max width is 92mm (3.62"), and motor diameter is 40mm (1.574").
- The installation holes for this motor will be larger than those of the RS550 model. Measure carefully to ensure a proper fit.
