RS775 High-Speed 24V Motor Gearbox for Power Wheels Upgrade, Compatible with 18V-24V

Specifications

• Model: W5-30 RS775
• Voltage: 18V - 24V
• Power: 280W at 24V, 200W at 18V
• Gearbox Output RPM:
  • 360 RPM at 24V
  • 270 RPM at 18V
  • 180 RPM at 12V
• Gearbox Speed Ratio: 1:75

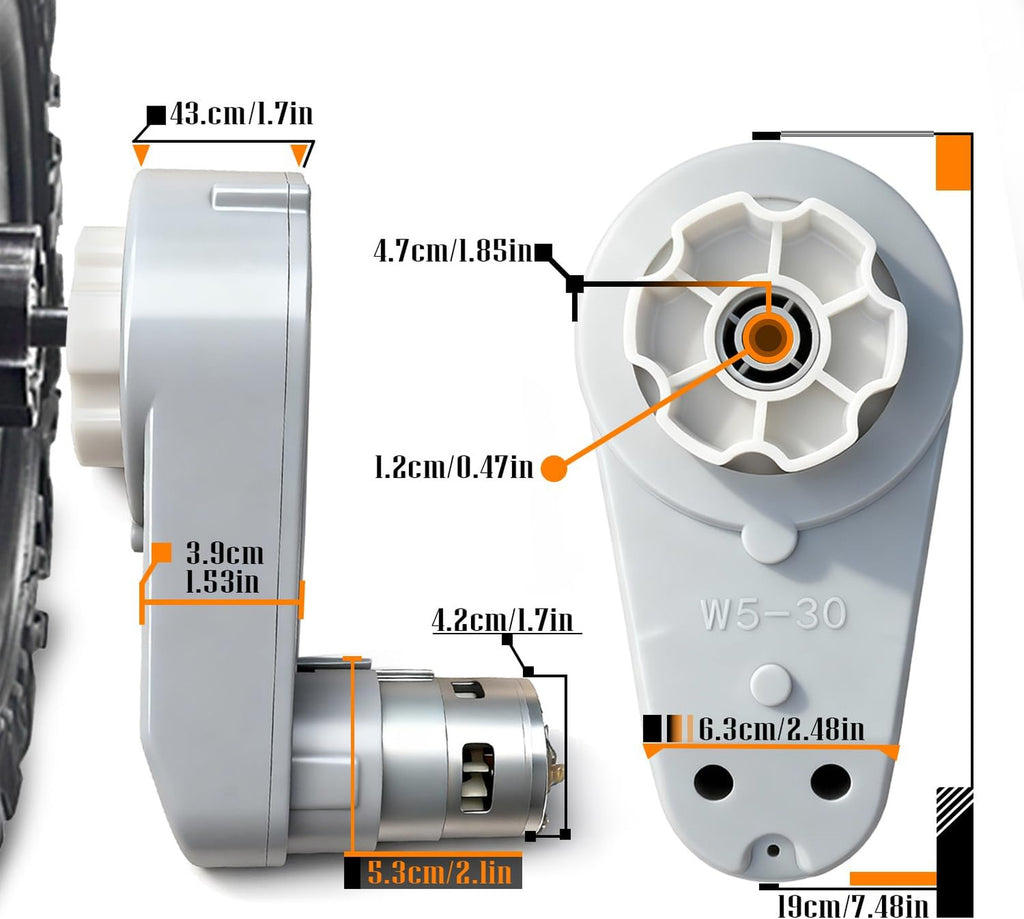

• Shaft Hole Diameter: 12mm (0.47")

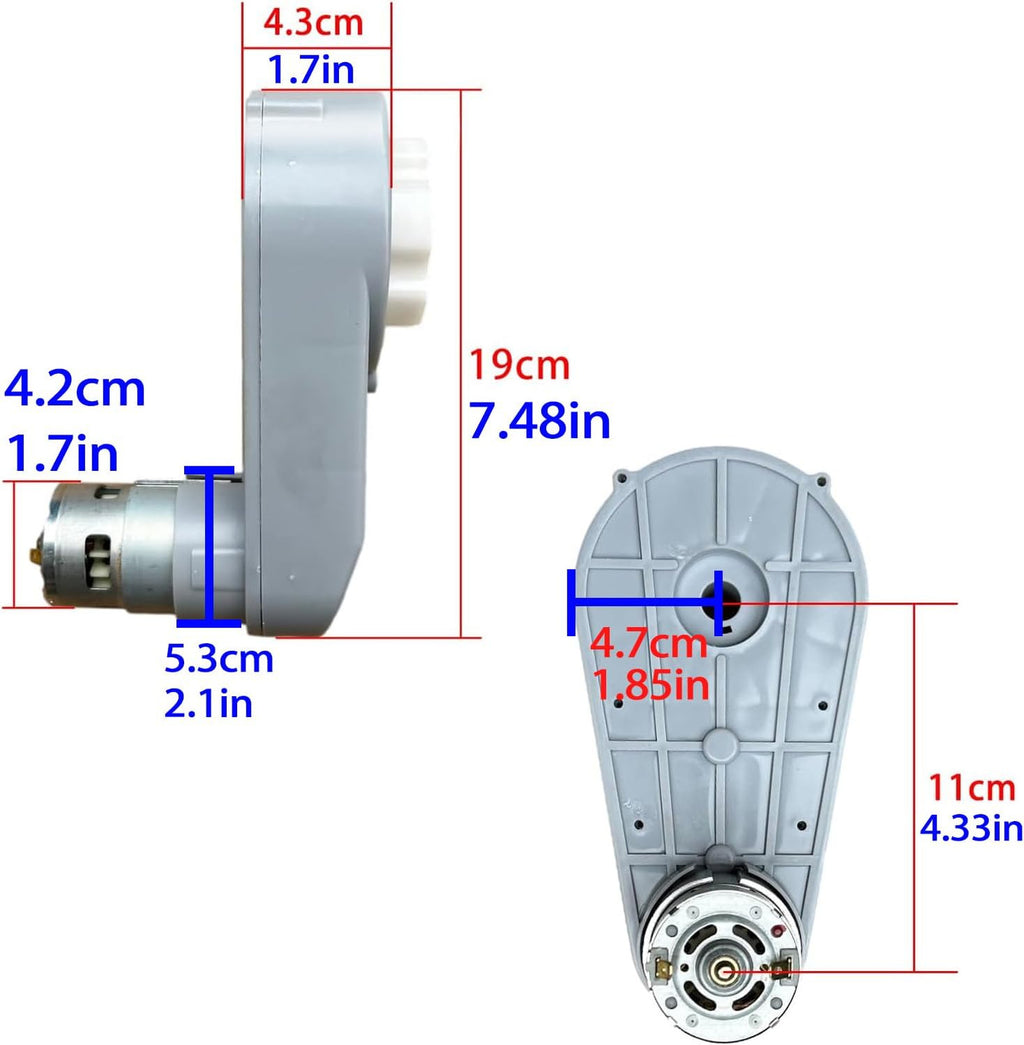

• Length: 185mm (7.28")
• Max Width: 92mm (3.62")
• Motor Diameter: 40mm (1.574")

Features

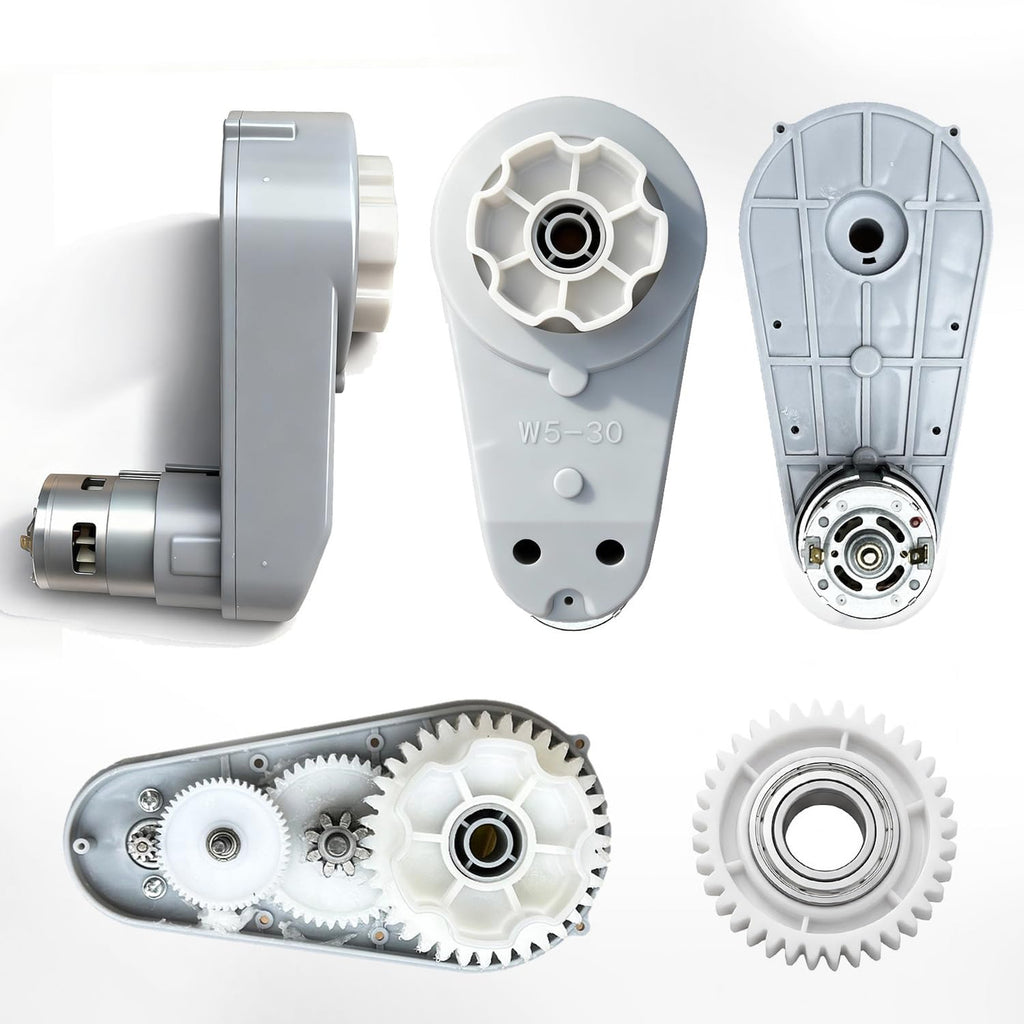

• High-strength composite material for durable performance

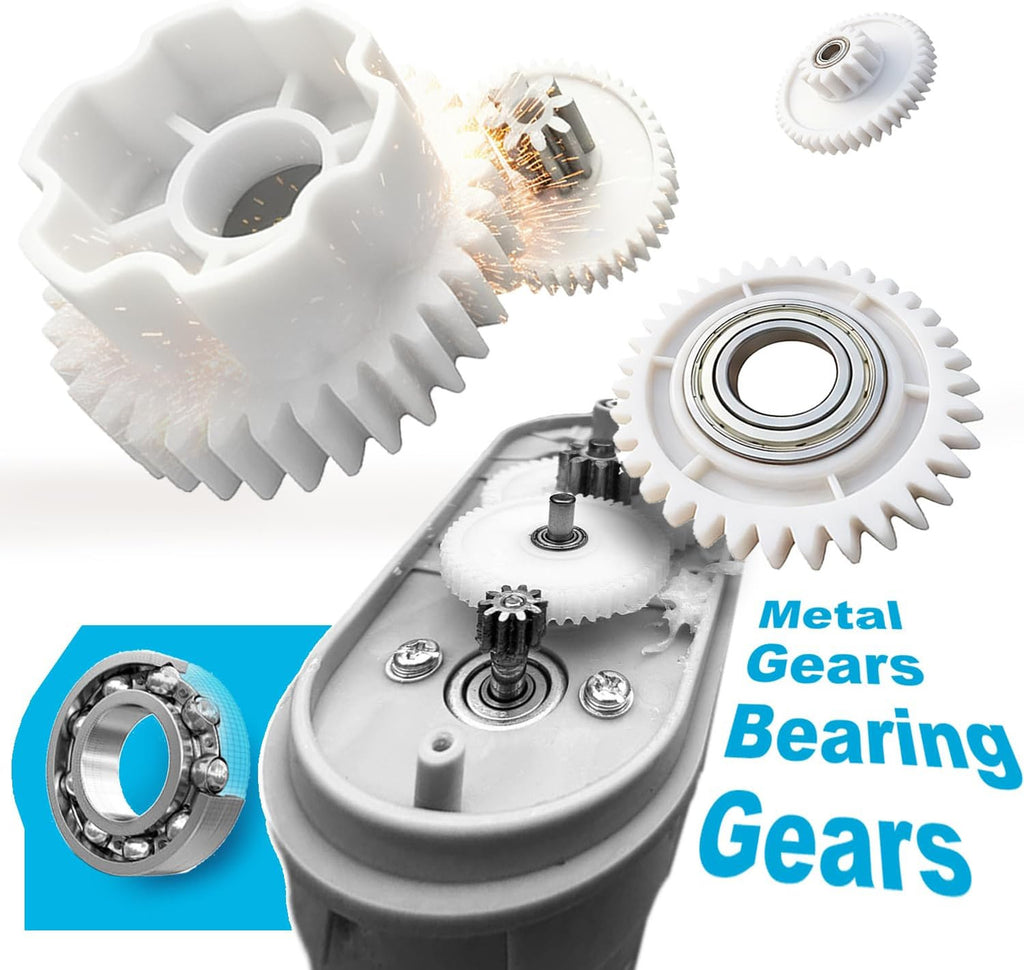

• Built-in bearings in both small and large gears to reduce friction
• Metal middle gear for improved reliability

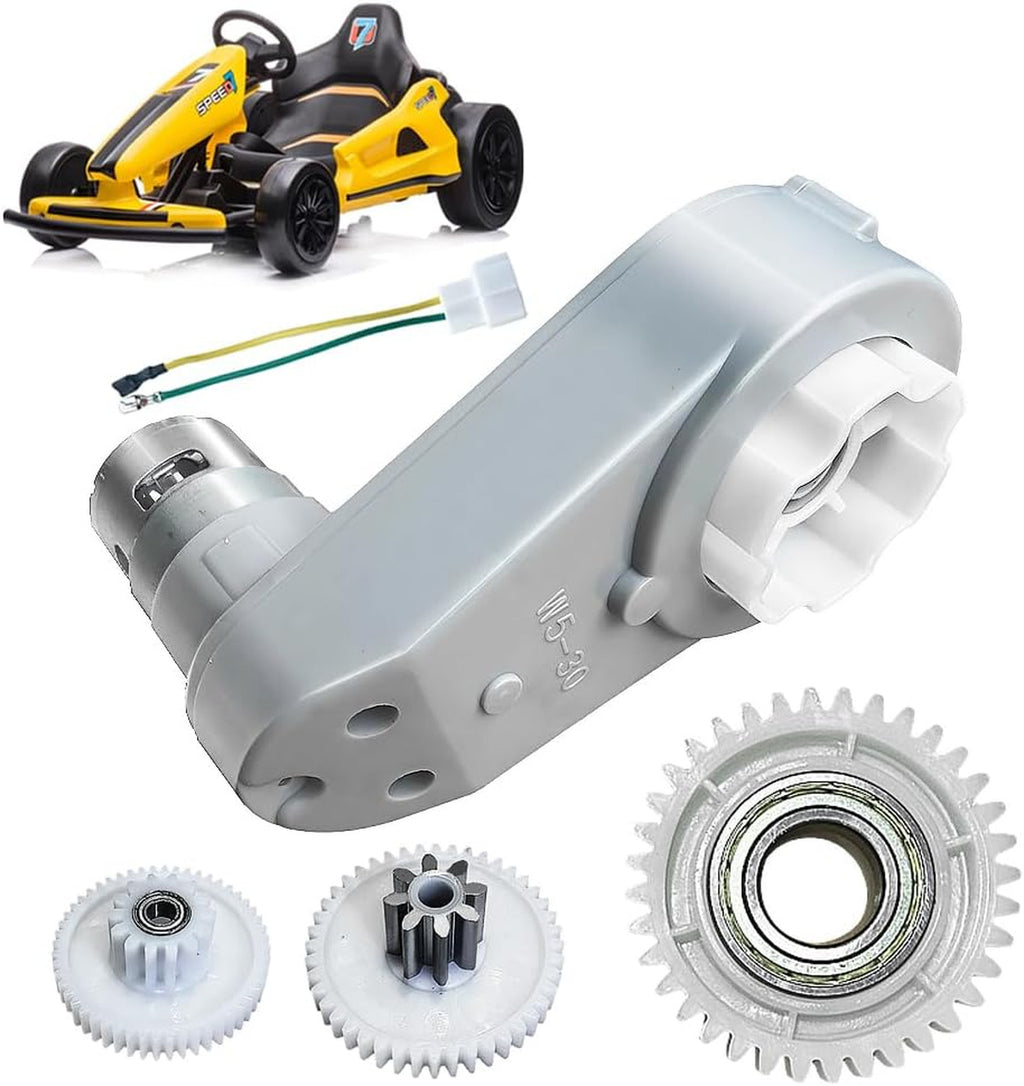

• One-click installation wires for easy replacement
• Compatible with 6 Plum Blossom gearboxes for children's ride-on cars
• Designed for use with 24V batteries, can also operate on 12V with reduced speed

Installation Instructions

Please measure the original motor gearbox dimensions before purchasing to ensure compatibility. Note that installation holes will be larger than those of the RS550 motor due to size differences. If steering errors occur, swap the motor cable connections.

Important Notes

• Do not exceed 24V power supply to avoid damage.
• Motor is a single unit; no left/right distinction required.
