High-Performance 24V RS775 Motor Gearbox for Power Wheels Enhancement

24 Volt RS775 High-Speed Motor Gearbox for Power Wheels Motor Upgrade

Enhance your kids' ride-on cars with the 24 Volt RS775 high-speed motor gearbox, designed for optimal performance and durability. This motor upgrade is compatible with 18V-24V systems, providing high torque and fast speeds for an exhilarating experience.

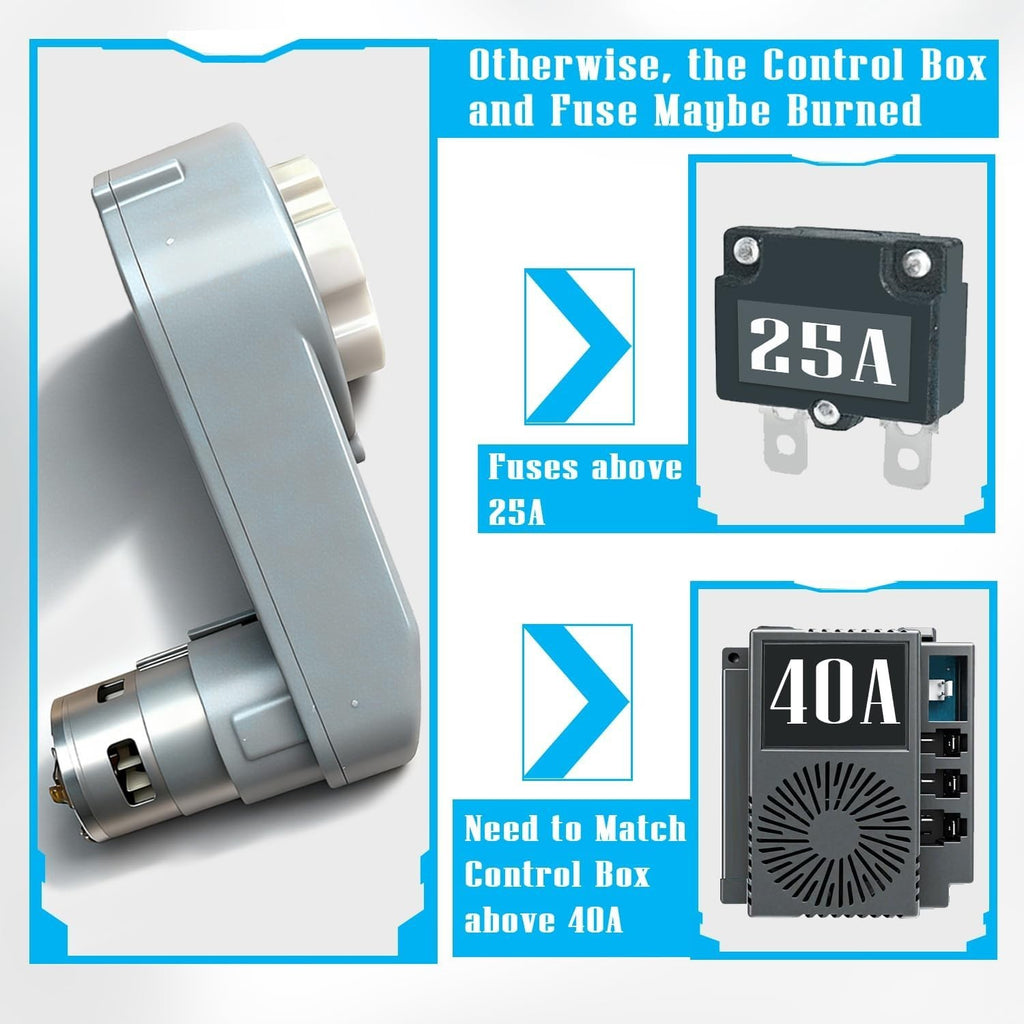

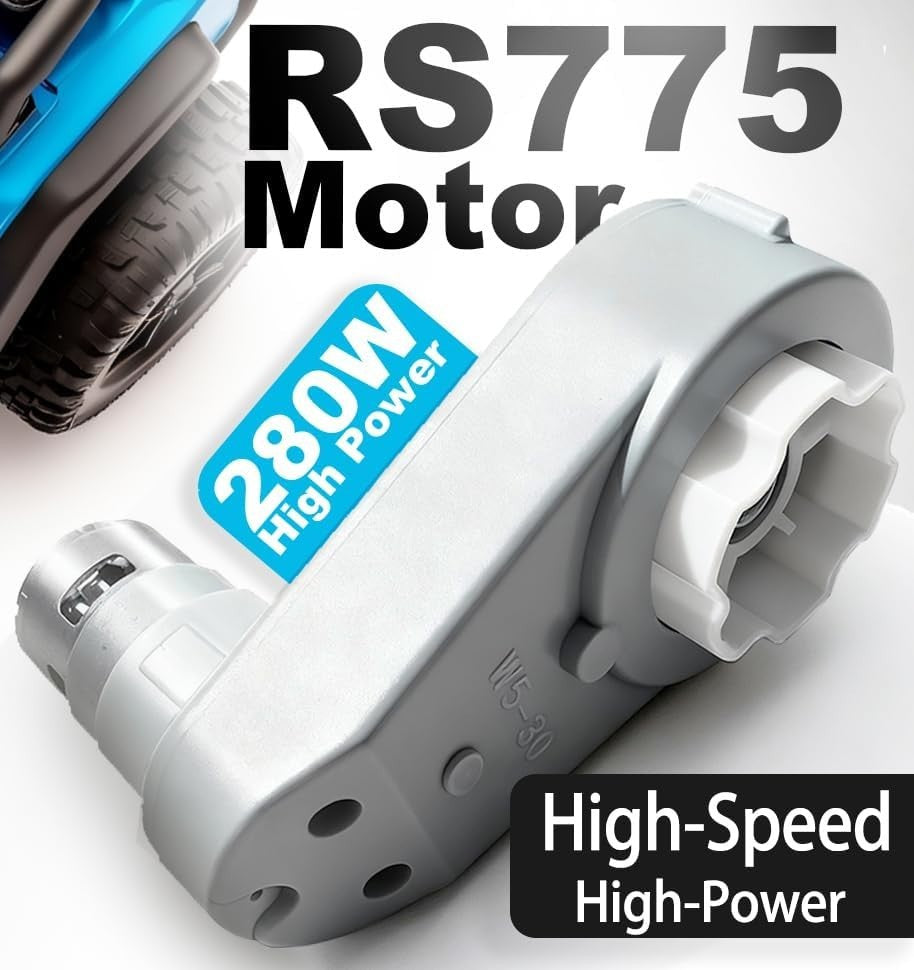

• Power and Compatibility: W5-30 RS775 24 Volt, 280 Watt drive engine with gearbox. Requires matching control box of 40A or above and fuse of 25A or above to prevent capacitor damage.

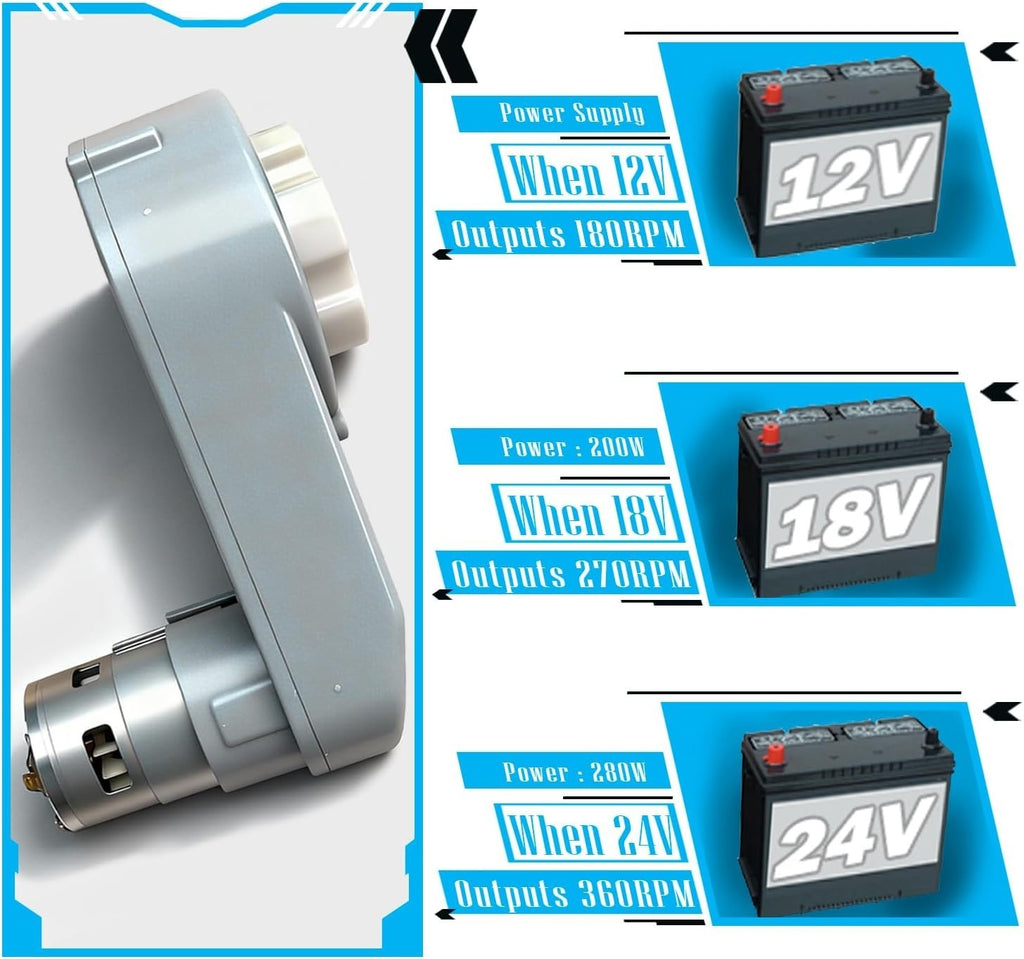

• Performance Specs: At 24V, the motor delivers 280W with a gearbox output of 360 RPM. At 18V, it outputs 200W at 270 RPM, and at 12V, it delivers 180 RPM.

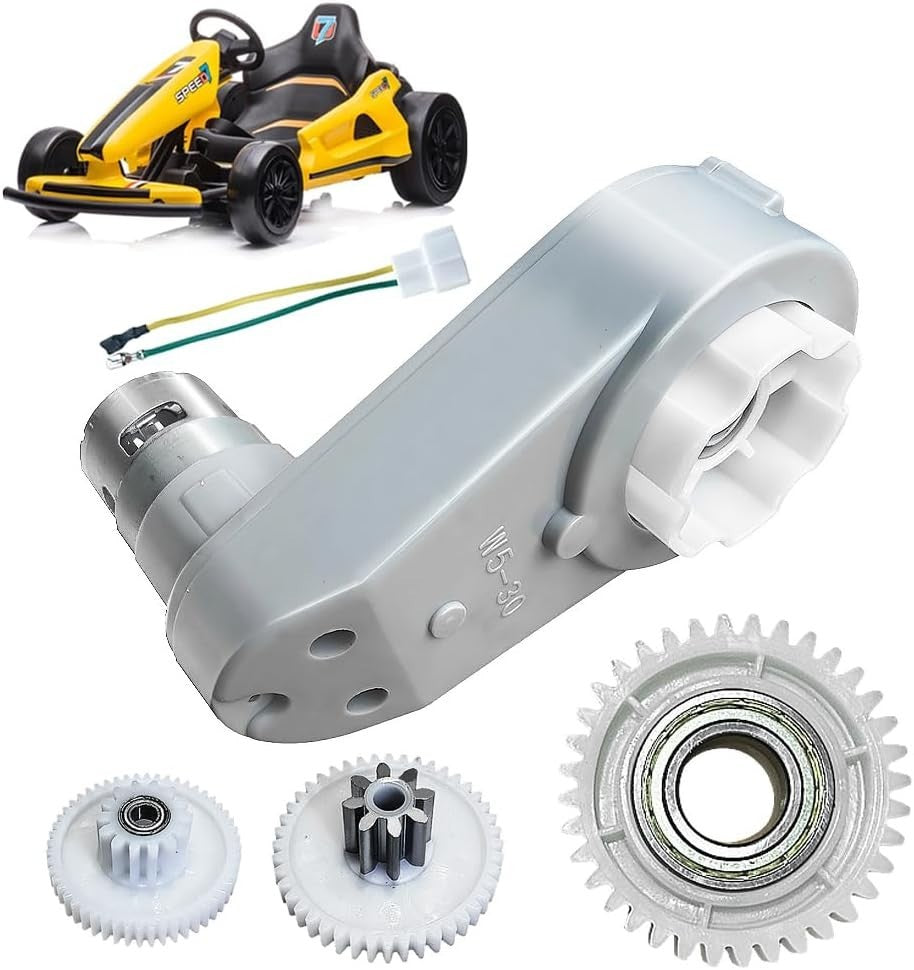

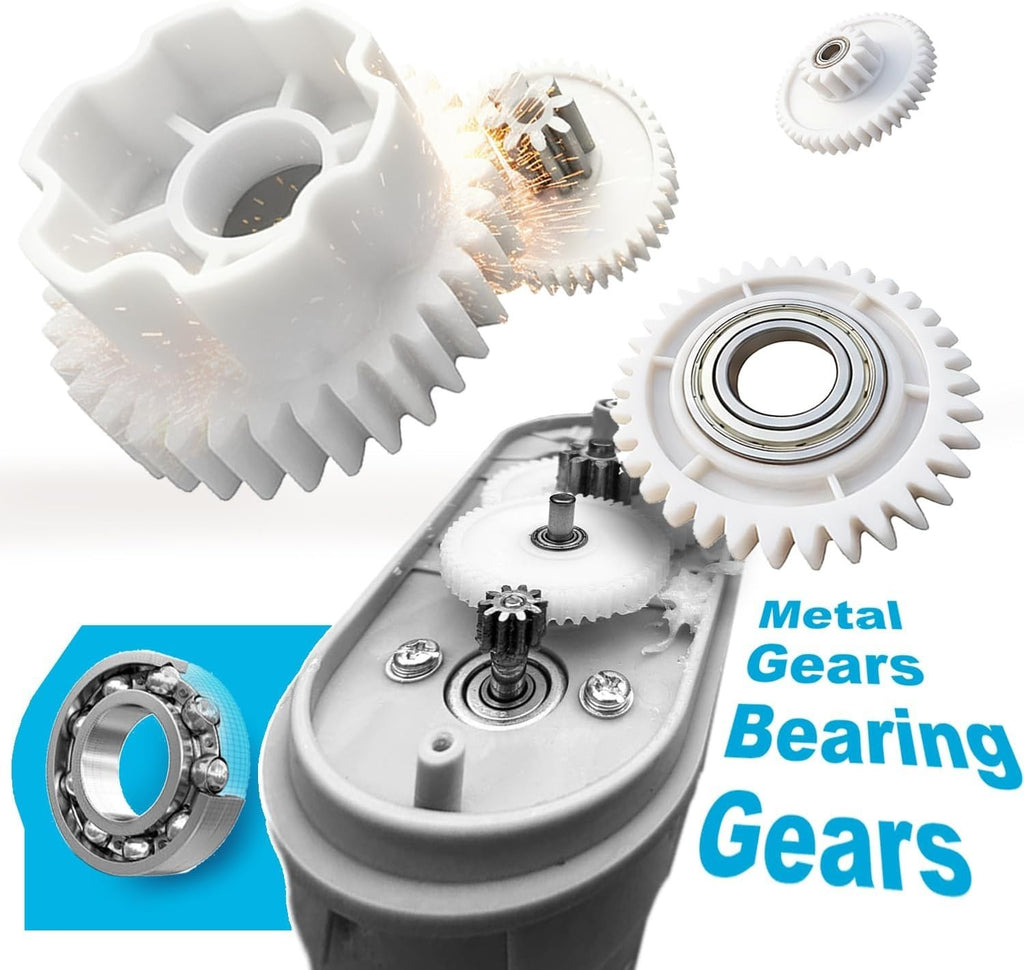

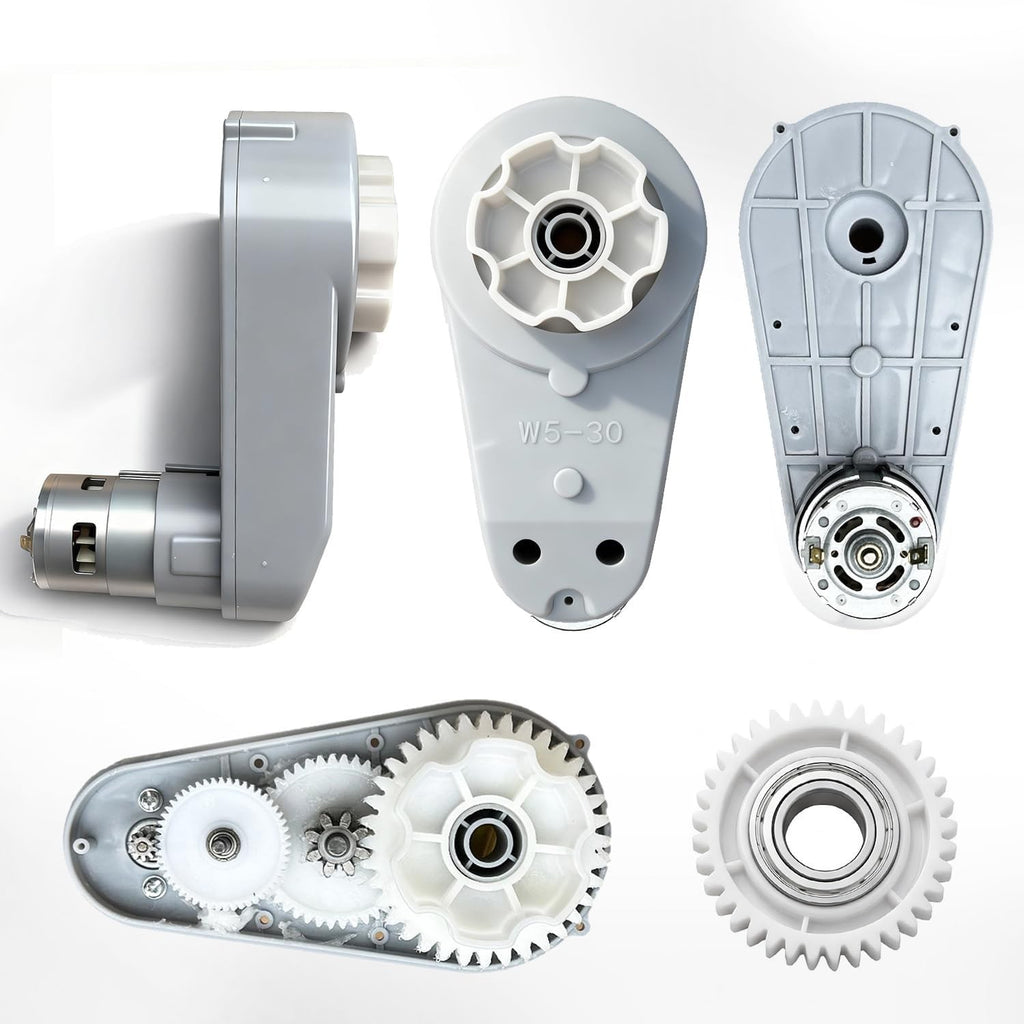

• Durable Construction: The gearbox shell is made from high-strength composite materials, preventing deformation. Both small and large gears feature built-in bearings to reduce friction and extend service life, while the middle gear is metal for added strength.
• High Torque Output: Gearbox speed ratio is 1:75, ensuring higher motor power of 280W and superior torque.

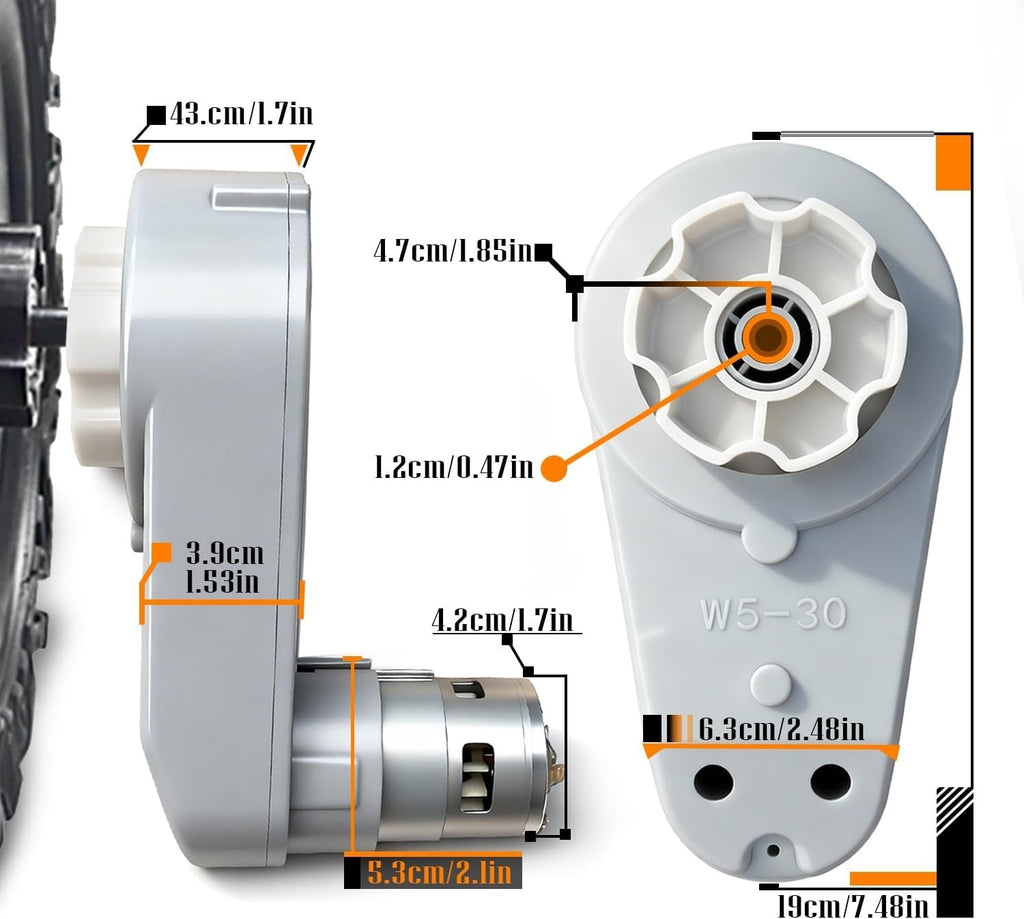

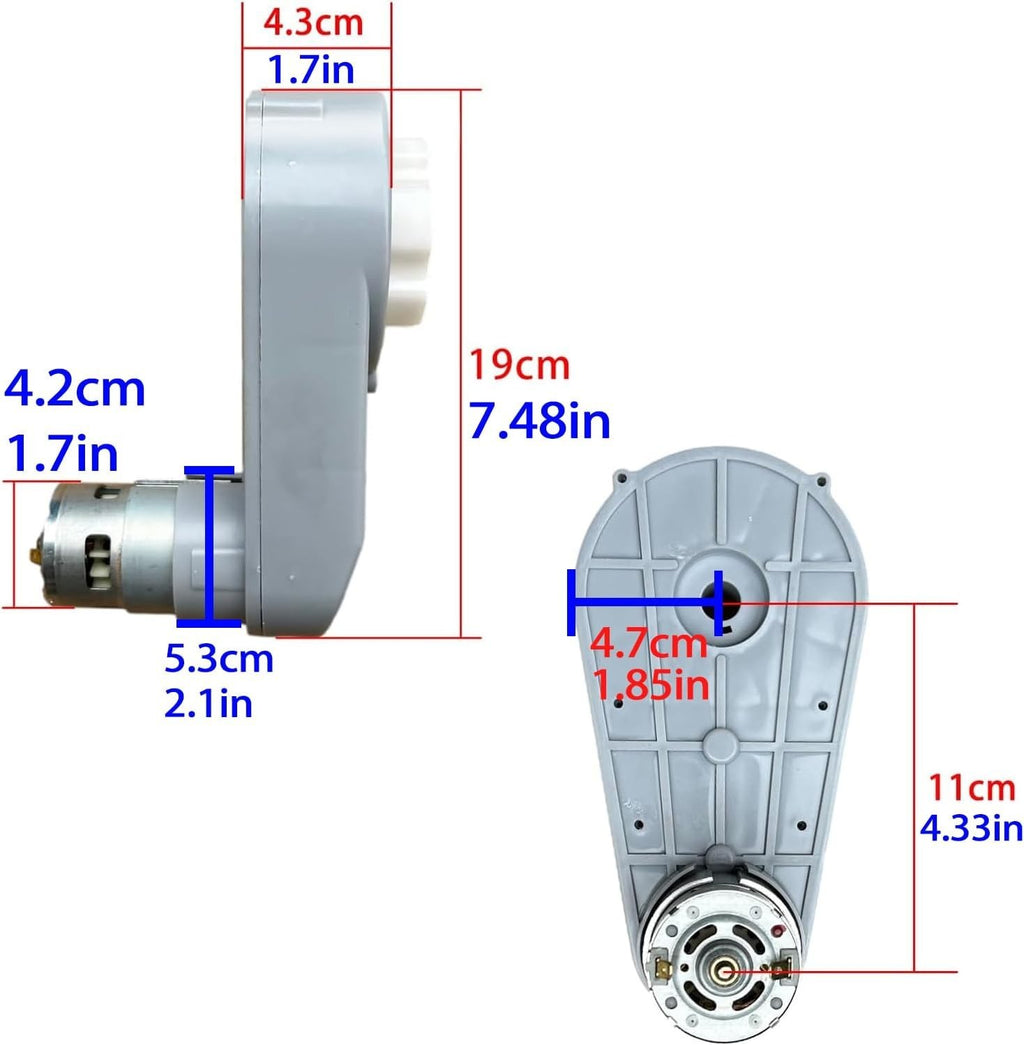

• Size Specifications: Carefully compare the dimensions: Shaft hole diameter: 12mm; Length: 185mm; Max width: 92mm; Motor diameter: 40mm. Designed for easy one-click installation and suitable for replacing gearboxes with 6 plum blossoms.
• Voltage Compatibility: Designed for 24V batteries but can also operate on 12V. Note that speed will be reduced by half at 12V while still providing impressive performance.
• Installation Considerations: The installation holes for this motor are larger than those of the RS550 due to the larger motor diameter. Measure all dimensions before purchasing to ensure proper fit.
• Important Notes: Do not exceed 24V power sources. The RS775 motor is larger than the RS550; it installs as a single unit without distinguishing left or right. To correct steering errors, simply swap the cable connections.
