24V DIY Ride-On Car Wiring & Switch Kit with 2.4G Bluetooth Remote – Model DZRX30
Ignite your child’s imagination and transform any compatible ride-on car into a thrilling, high-powered adventure machine with this all-in-one 24-volt wiring and switch accessory kit. Perfect for parents who love hands-on customization and children ages 14 and up, this kit provides everything you need to bring your ride-on car’s electronics to life. You’ll get a smart circuit control box, robust wiring harness, downloadable slow-start Bluetooth remote, foot pedal, and safety overload protector—everything except the gearbox, motor, and battery. With straightforward DIY assembly, you and your young engineer can bond over an electrifying project that delivers hours of electric car excitement.
Why You’ll Love This Kit
- Full DIY Transformation: This 24V accessory package empowers you to upgrade your child’s ride-on car electronics without buying a whole new vehicle. You supply the gearbox, motor, and battery; we supply the heart and mind of the system.
- Progressive Speed Control: The integrated slow-start feature protects young drivers by gently ramping up power until they gain confidence. No more sudden jolts—just smooth acceleration every time.
- Wireless Freedom: Pair the high-power motherboard with the included 2.4G Bluetooth remote for hands-free operation. You can take manual control when needed or let your child master driving skills on their own.
- Compact Yet Mighty: Our sleek control box measures just 5.6 x 3.5 x 2.8 inches and weighs only 1.5 pounds—small enough for easy mounting, yet powerful enough to drive 24-volt system demands.
- Safety Overload Protection: Built-in safeguards automatically cut power if the motor draws excessive current, protecting electronics and wiring from damage.
- Easy Sync Button: A single white button on top of the control box lets you sync the remote in 3–5 seconds. No complicated codes, just simple plug-and-play pairing.
Key Specifications
- Model Number: DZRX30
- Recommended Age: 14 years and up
- Operating Voltage: 24 volts DC
- Package Dimensions: 5.6 × 3.5 × 2.8 inches
- Package Weight: 1.5 pounds
- Country of Origin: China

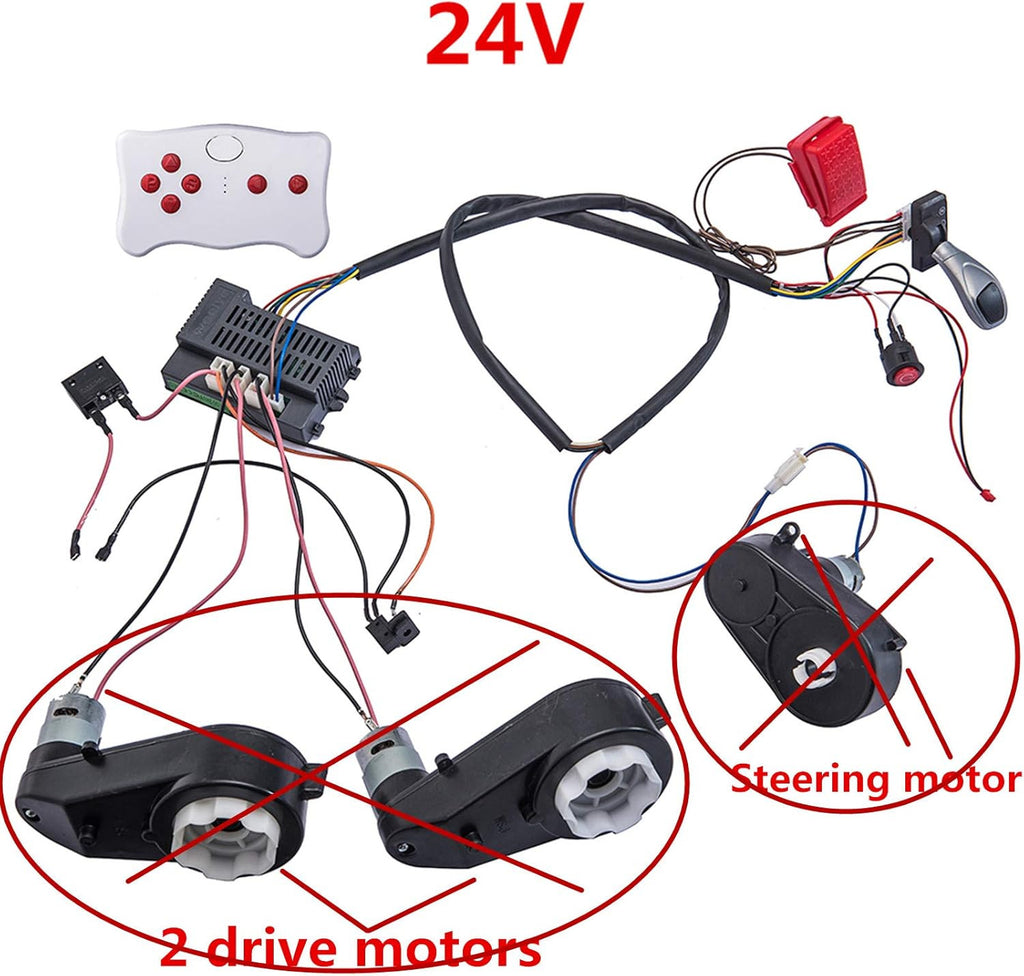

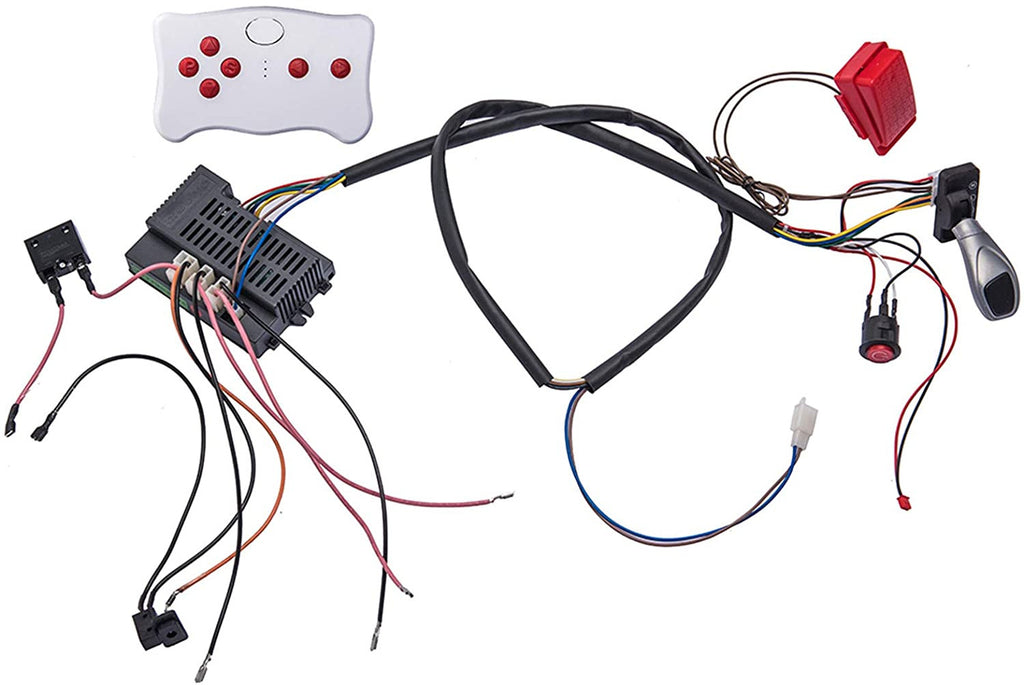

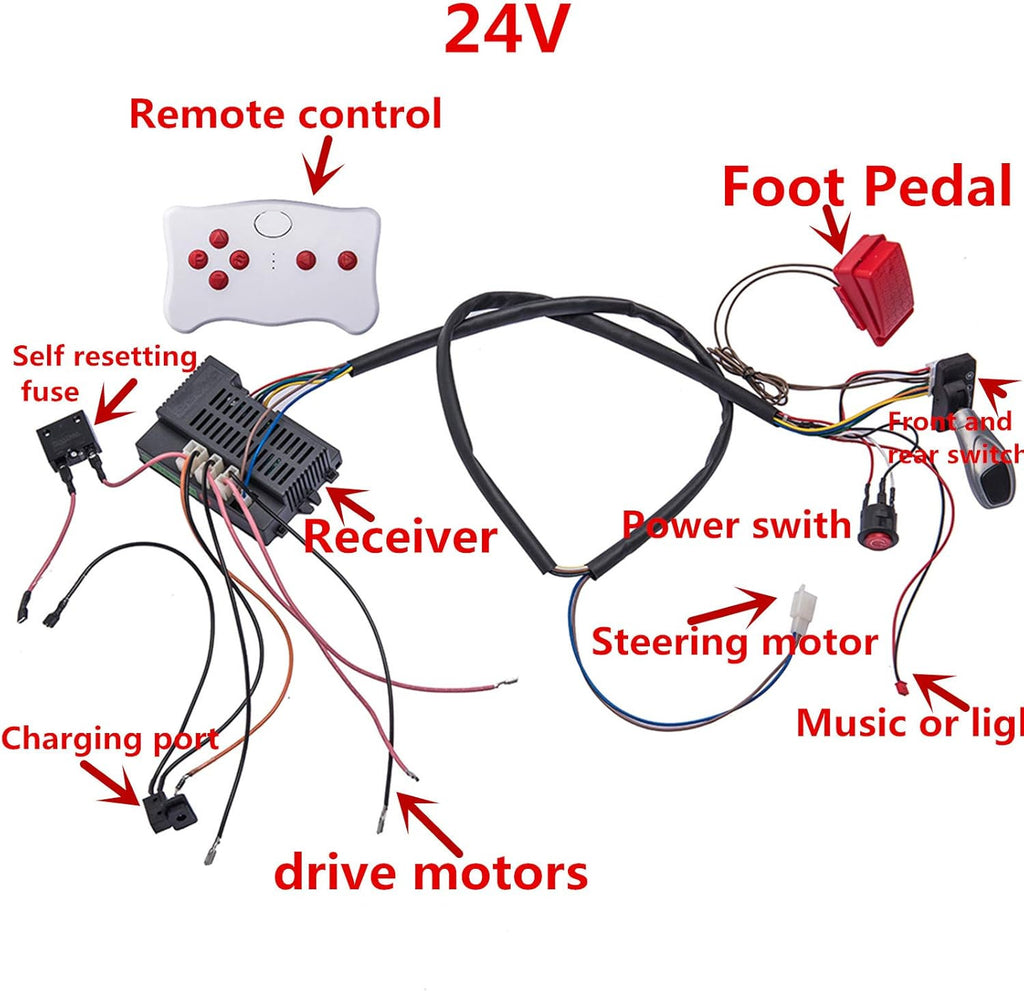

- Kit Includes:
- 2.4G Bluetooth Remote Control & Receiver

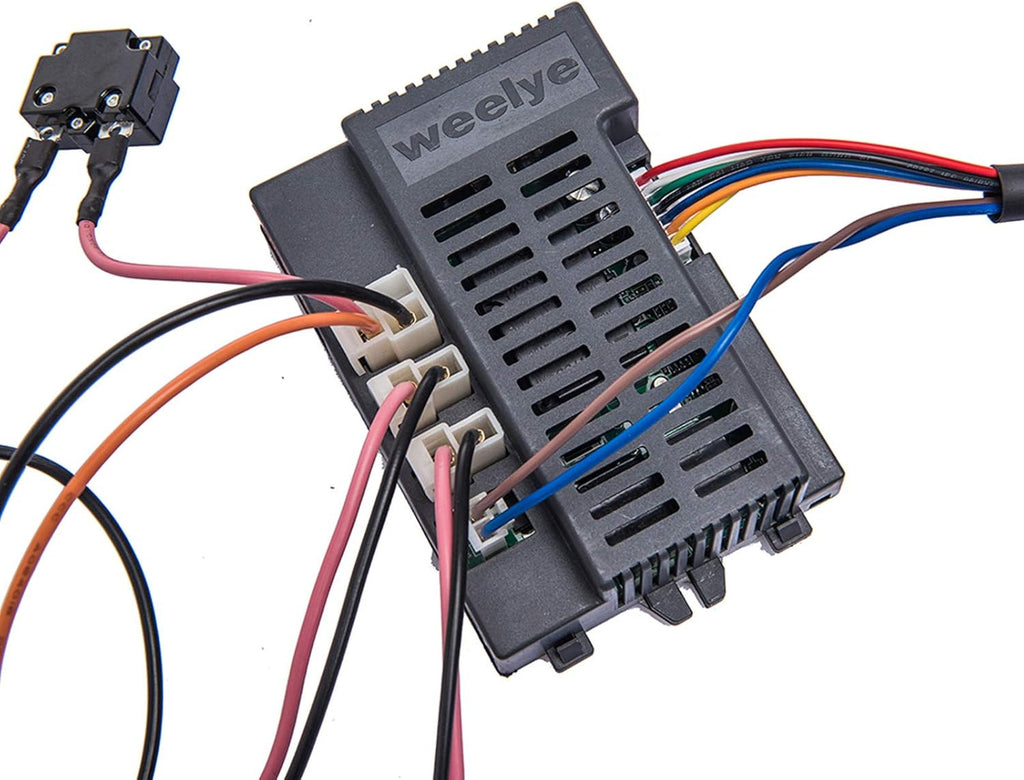

- High-Power 24V Control Box (Motherboard)
- Premium Wiring Harness
- Manual On/Off Switch

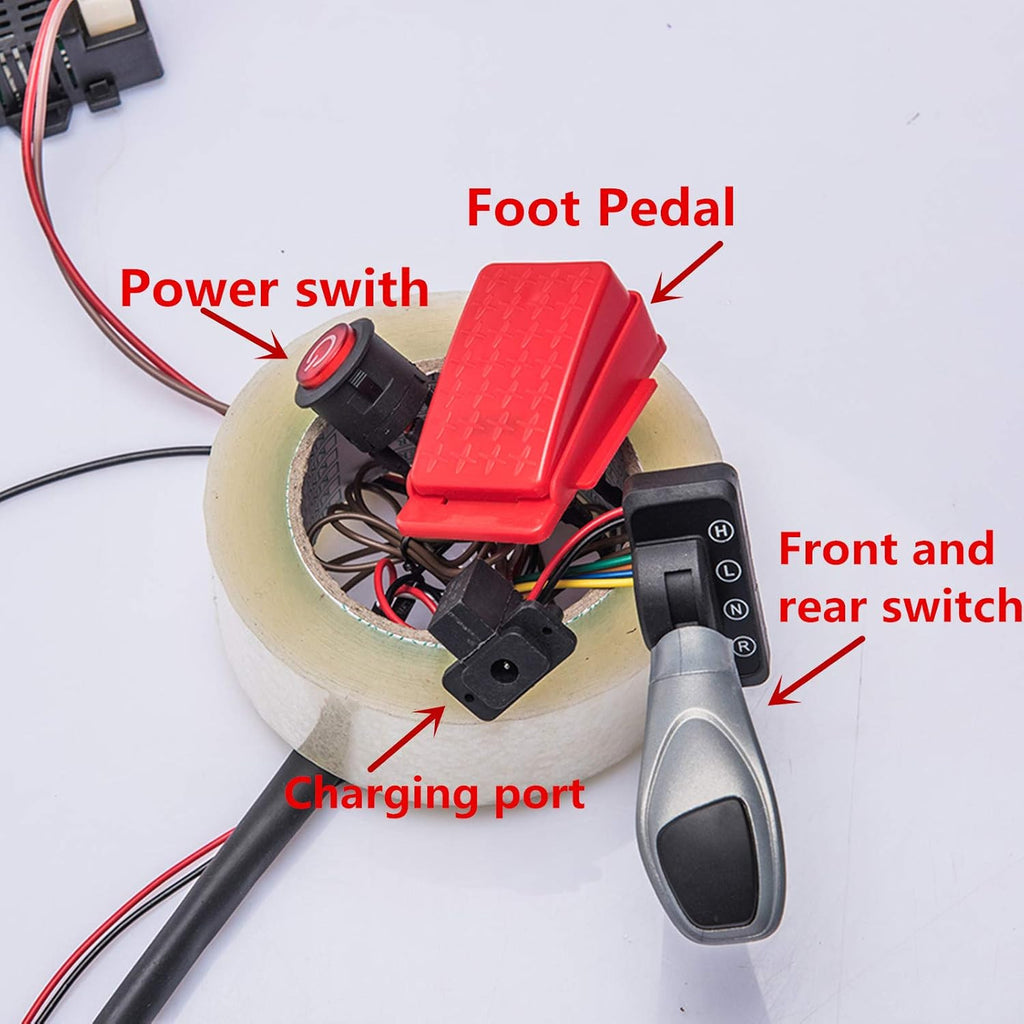

- Foot Pedal Accelerator
- Overload Protector Circuit
Step-by-Step DIY Installation
1. Mount the Control Box: Select a flat spot inside your ride-on car’s battery compartment or under the seat. Use zip-ties or screws (not included) to secure the box. 2. Connect the Wiring Harness: Follow the color-coded diagram to hook up motor leads, battery leads, and switch lines. Each cable end snaps into place with foolproof connectors. 3. Install the Foot Pedal: Position the pedal where your child’s right foot naturally rests. Run the harness to the control box and snap in the pedal connector. 4. Attach the Overload Protector: Clip the protector in line between the battery and control box. This safeguard interrupts current if the system ever exceeds safe draw levels. 5. Pair Your Remote: Press and hold the white button on top of the control box for 3–5 seconds. The LED will blink. Activate the remote’s power button—once the light stays solid, pairing is complete! 6. Test & Go: Charge or install a 24-volt battery pack (not included), switch on the system, and have your young driver gently press the pedal. Watch their eyes light up as the ride-on car comes to life!
Benefits for You and Your Young Engineer
- Family Bonding: Turn a weekend project into quality time. Teach your teen fundamental electronics and mechanics in a hands-on, exciting way.
- Cost-Effective Upgrade: Instead of investing in a whole new ride-on car, revitalize the one you already own with this affordable accessory kit.
- Customizable Performance: Adjust speed curves via the remote control’s programming options. Whether your child is a beginner or a budding daredevil, you’ll have the right settings.
- Enhanced Safety: The slow-start functionality and overload protection give you peace of mind while your teen learns to control an electric ride-on vehicle.
- Endless Adventure: From backyard racetracks to curb-side parades, this kit helps your kid explore, create, and embark on imaginative journeys.
Perfect for Gift-Givers
Looking for a standout birthday or holiday gift that blends technology, creativity, and adventure? This 24V wiring and switch kit for ride-on cars is an unforgettable surprise. You’re giving more than parts—you’re gifting an electrifying experience that encourages STEM learning, mechanical aptitude, and pure, exhilarating fun.
What You’ll Need (Not Included)
- 24V Battery Pack (sealed lead-acid or lithium-ion recommended)
- Compatible Gearbox & Drive Motor
- Mounting Hardware (screws or zip-ties)
- Basic Hand Tools (wire strippers, screwdrivers)
Let the thrill begin—transform your ride-on car today with this complete 24V wiring and switch kit. You’ll be amazed at how quickly you can build a fully controllable electric race car experience right in your own driveway!
