Description

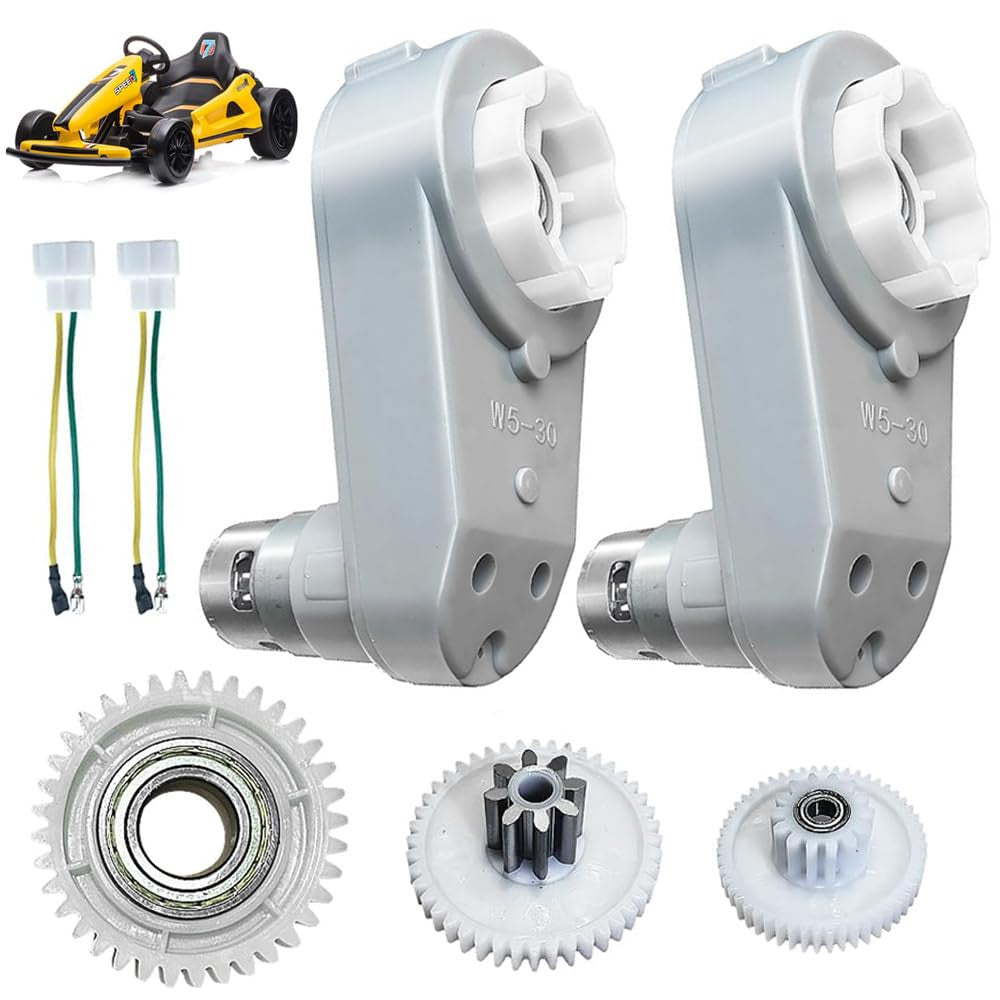

2-Pack 24V RS775 Motor Gearbox for Power Wheels Motor Gearbox Upgrade Kit
| Model Name | RS775 Motor |
| Number of Items | 2 |
| Item Highlight | 24V DC RS775 for Ride on Toy Car Replacement Motor Parts, Fast, High Torque, 280W, Steel Gear with Bearing, 18V 20V Wide Voltage |
| Included Components | Motor Gearbox |
| Part Number | RS775 Motor Gearbox |
| Speed | 27000 rpm |
| Voltage | 18 volts, 24 volts |
| Horsepower | 280 watts |
| Material Type | Metal, Plastic |
Important Notice
Please pay attention to the comparison size before buying.

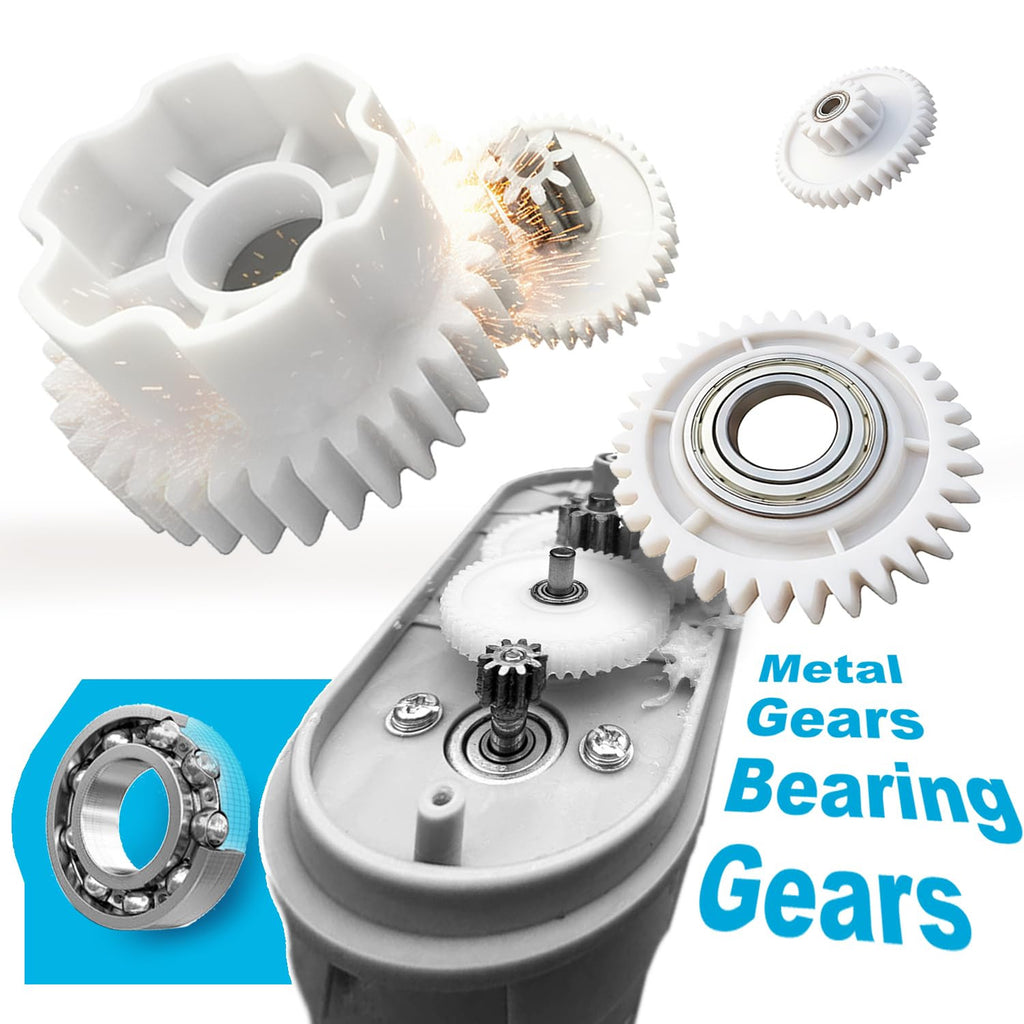

Steel Gear + Bearing Gear + High-Power Motor
Universal Voltage & Performance
This motor is designed to operate across a voltage range of 12V to 24V. To achieve optimal performance, it is recommended to use it with a 40A high-power controller and a 25A fuse.
-
Voltage Range
The motor operates within a voltage range of 12V-24V. Avoid exceeding 24V to prevent damage. At 12V, speed is reduced; at 24V, optimal speed is achieved.
-
Vehicle Compatibility
This motor is suitable for DIY modifications or prototype replacements. Ensure accurate measurements before upgrading.
-
Installation Requirements
Professional installation is not necessary. You can assemble it yourself, but please measure the motor size carefully to ensure compatibility.
-
Installation Instructions
Requires a 40A or higher controller and a 25A or higher fuse. The motor does not have a left or right side distinction; if there's a steering error, adjust the motor cable sequence.
-
Outdoor Use
This upgrade motor can be used outdoors and is ideal for various DIY electrical projects.
-
Customers emphasize the importance of comparing size data, as the RS775 motor is larger than the RS550 motor gearbox.
-
Additional Considerations
Ensure to verify size, voltage, and power specifications before purchasing.
- 2PCS RS775 24 Volt 280 Watt Drive Engine with Gearbox for Power Wheel Motor Upgrade.
- The gearbox outputs 360 RPM per minute at 24V and 270 RPM at 18V.

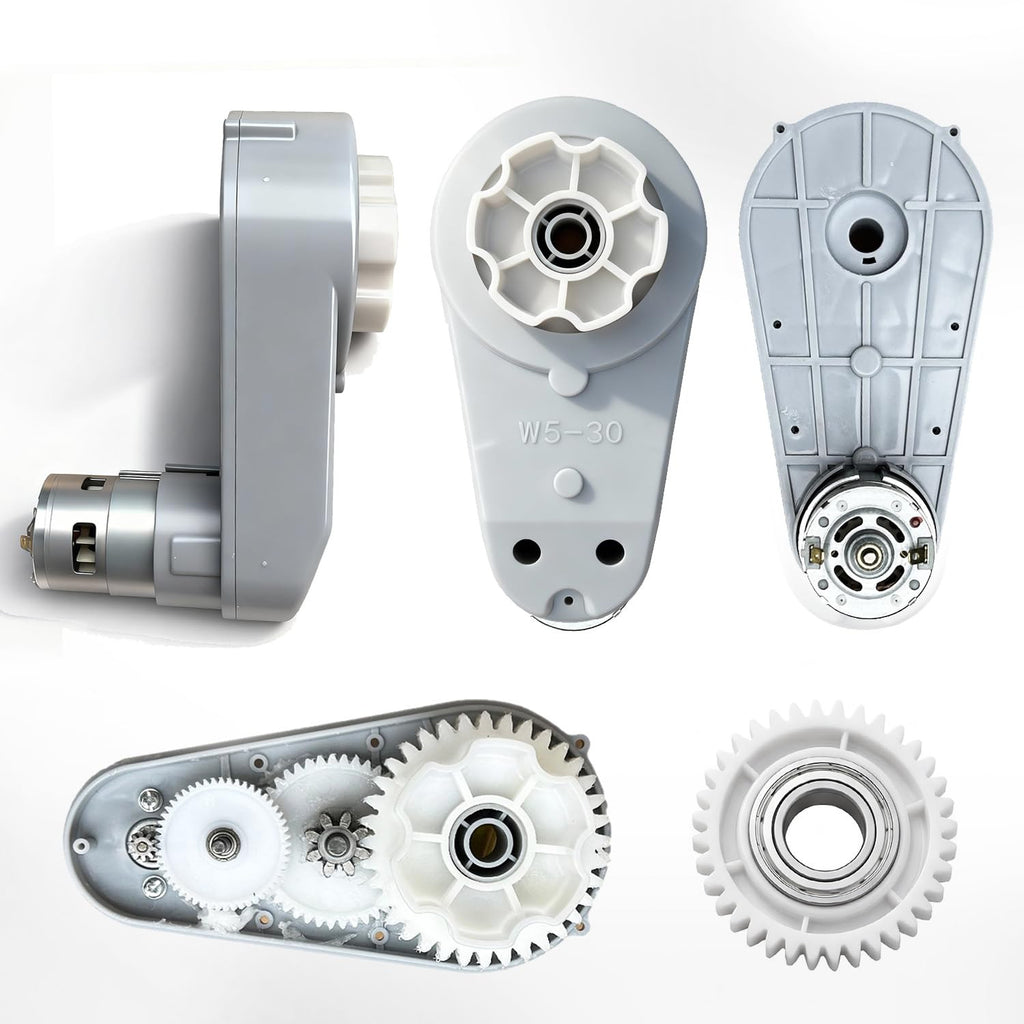

- Constructed from high-strength composite materials for durability, with built-in bearings to reduce friction.
- The gearbox speed ratio is 1:75, ensuring higher output speed.

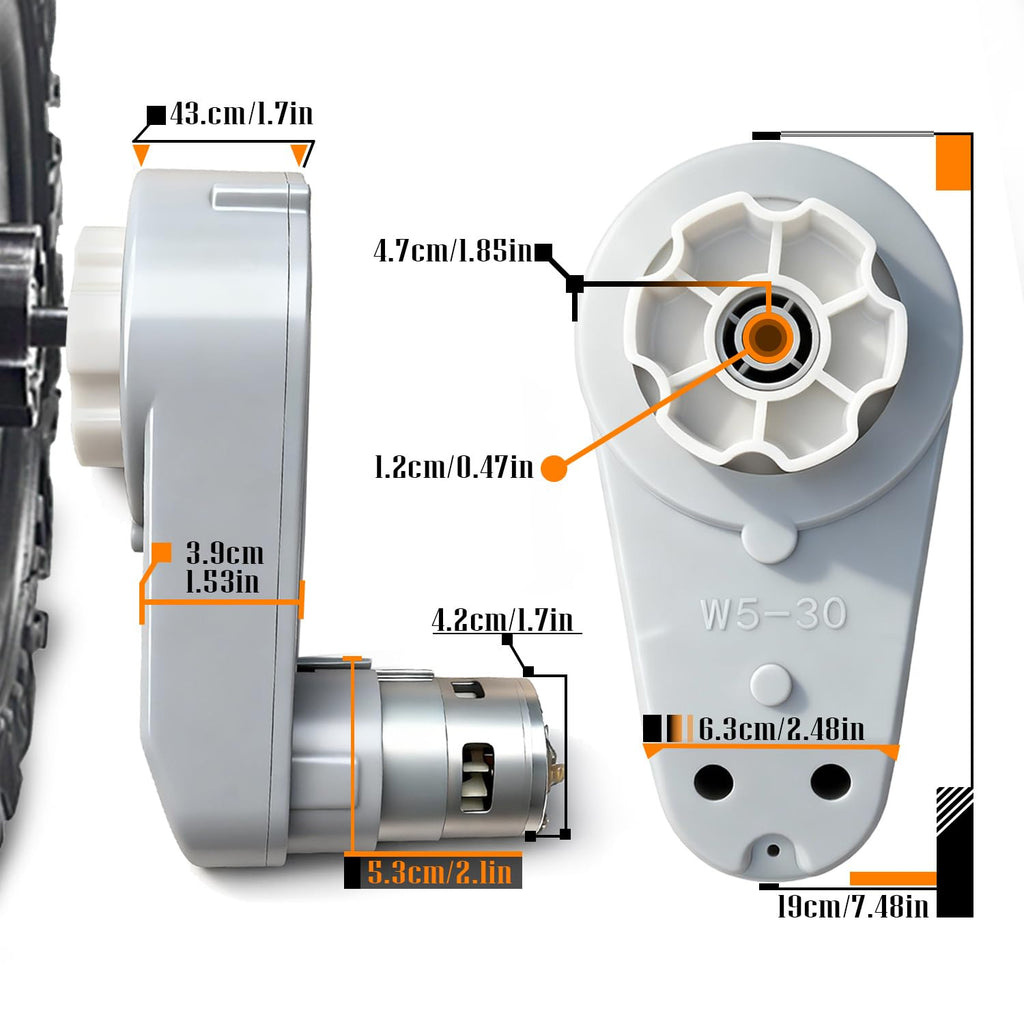

- Carefully compare the original motor gearbox dimensions: Shaft Hole Diameter: 12mm (0.47"); Length: 185mm (7.28"); Width: 92mm (3.62"); Motor Diameter: 40mm (1.574").
- Designed for 24V battery use, but compatible with 12V, albeit at reduced speed.
- The installation holes for this motor gearbox are larger than those of RS550; verify all dimensions before purchasing.
