Description
2-Pack 24V RS775 Motor Gearbox for Power Wheels Motor Gearbox Upgrade Kit
| Model Name | RS775 Motor |
| Number of Items | 2 |
| Item Highlight | 24V DC RS775 for Ride on Toy Car Replacement Motor Parts, Fast, High Torque, 280W, Steel Gear with Bearing, 18V 20V Wide Voltage |
| Included Components | Motor Gearbox |
| Part Number | RS775 Motor Gearbox |
| Speed | 27000 rpm |
| Voltage | 18 volts, 24 volts |
| Horsepower | 280 watts |
| Material Type | Metal, Plastic |
Important: Please Verify Size Before Purchase
Steel Gear + Bearing Gear + High-Power Motor
Universal Voltage Range & Performance

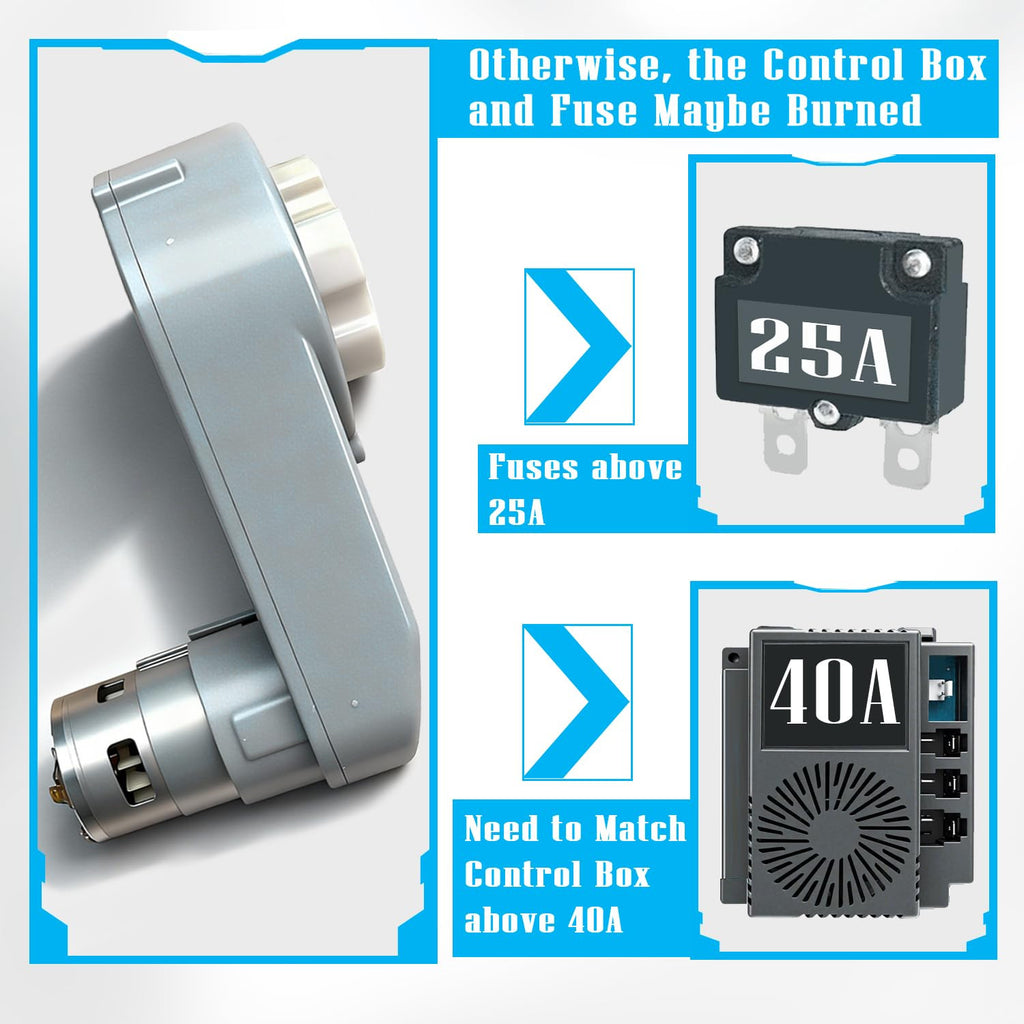

For optimal performance, use with a 40A high-power controller and a 25A fuse.
-
What is the voltage range of the motor?
The motor operates within a voltage range of 12V-24V. Do not exceed 24V. At 12V, speed decreases; at 24V, speed reaches optimal levels.
-
Which vehicles does it match with?
This motor is suitable for DIY modifications or prototype replacements. Ensure precise measurements before upgrading.
-
Is professional installation required?
No professional installation is needed. However, carefully measure the motor size against your model before assembly.
-
Are installation instructions available?
Match with a controller of 40A or above and a fuse of 25A or above. The motor does not require side distinction; adjust the cable sequence if steering errors occur.
-
Can it be used outdoors?
This power wheel upgrade motor is suitable for outdoor use and various DIY electrical projects.
-
What do customers usually say?
Customers emphasize the importance of comparing size data. The RS775 motor is larger than the standard RS550 motor gearbox.
-
What else should I consider?
Always compare size, voltage, and power specifications before making a purchase.
- 2PCS RS775 24 Volt 280 Watt Drive Engine with Gear Box for Power Wheel Motor Upgrade 18V. Requires matching with a control box of 40A or above and a fuse of 25A or above to prevent capacitor damage.

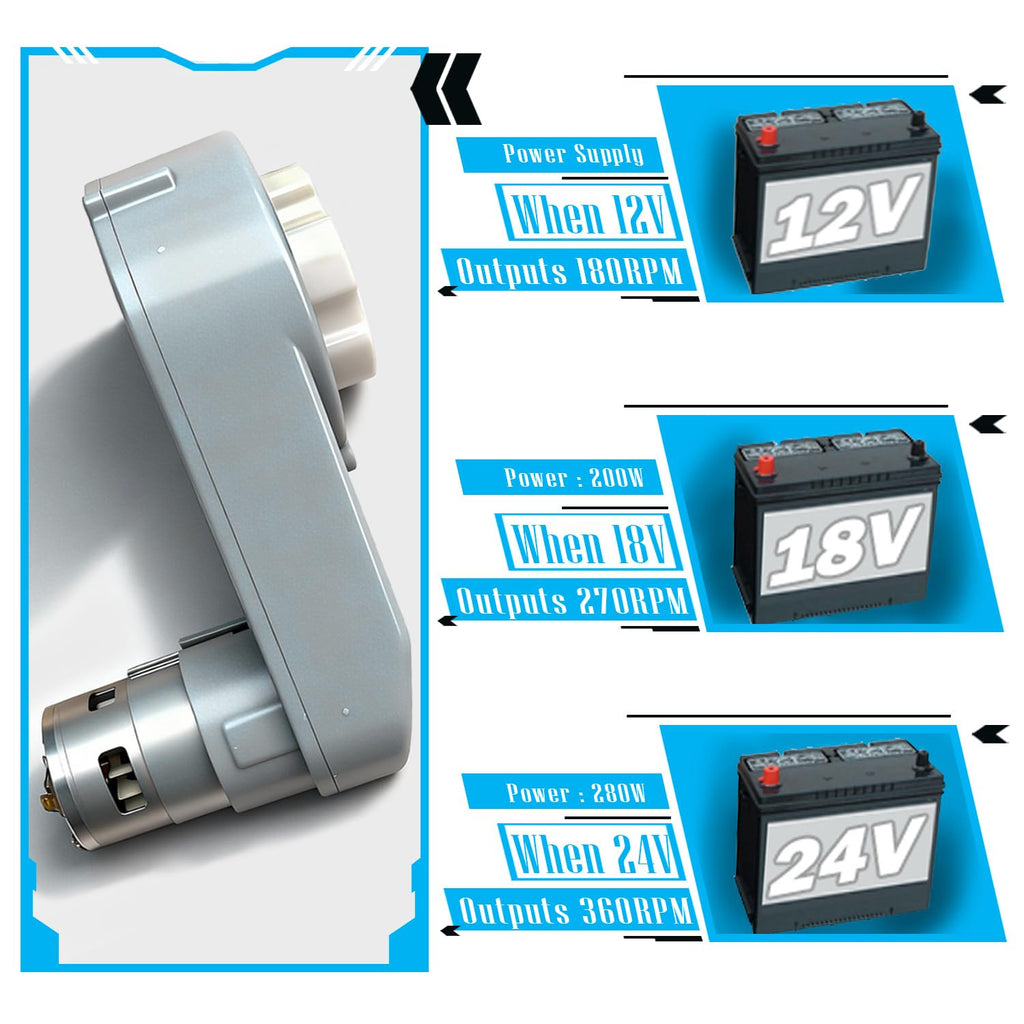

- 18V DC Motor Engine for Power Wheel Ride On Cars Upgrade. At 24V, it delivers 280W power with 360RPM output. At 18V, it provides 200W with 270RPM output. At 12V, expect 180RPM.

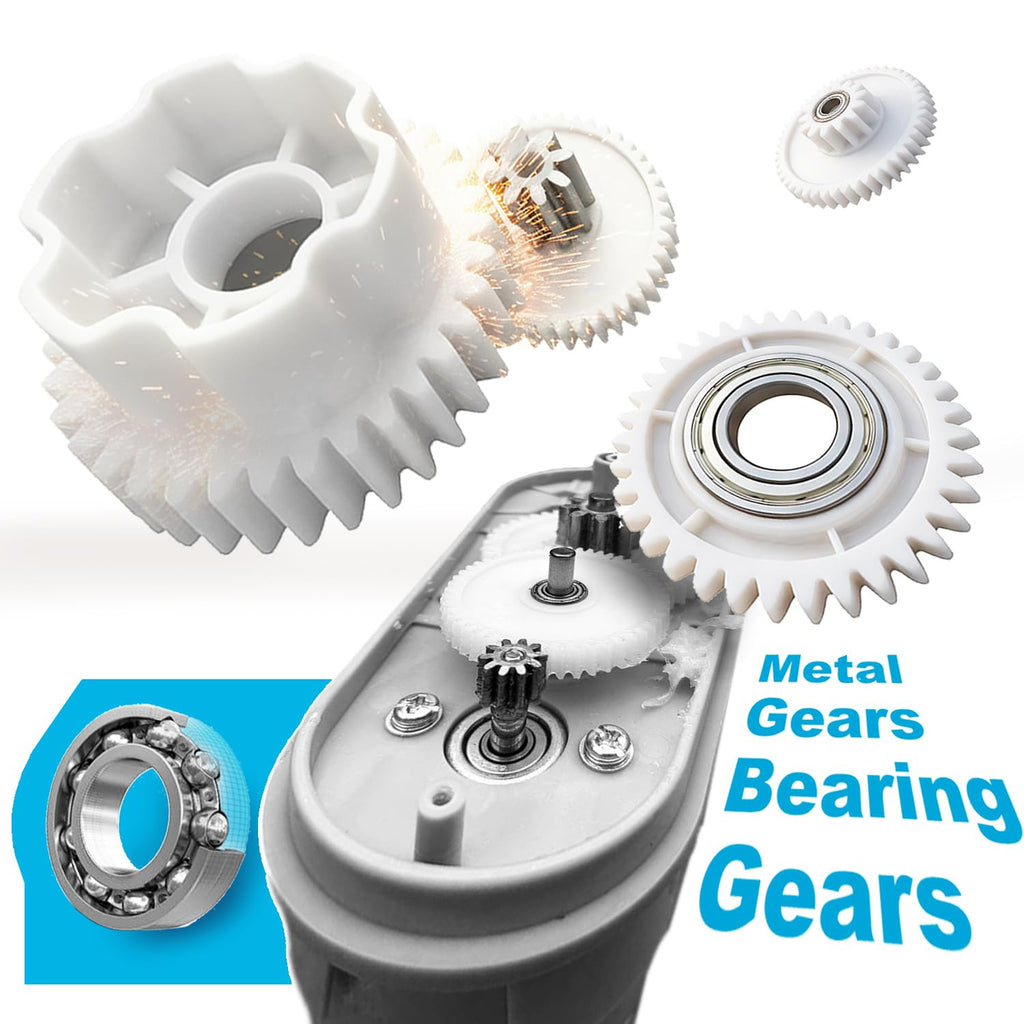

- Gearbox shell made from high-strength composite materials, ensuring durability. Both small and large gears include built-in bearings to reduce friction and enhance lifespan. The middle gear features a metal construction.
- Gearbox speed ratio is 1:75, promoting higher output speed. The motor power is 280W, ensuring superior torque output.
- Carefully compare the original motor gearbox size: Shaft hole diameter: 12mm (0.47"); Length: 185mm (7.28"); Max width: 92mm (3.62"); Motor diameter: 40mm (1.574"). Features one-click installation wires for easy replacement in kids' ride-on cars.
- Designed for use with a 24V battery. Can also be used with a 12V battery, but speed will be halved. The gearbox design still delivers fast speeds.
- Installation holes for this motor gearbox will be larger than those of the RS550 due to the motor's larger diameter. Measure all dimensions before purchasing for optimal installation.
