Description

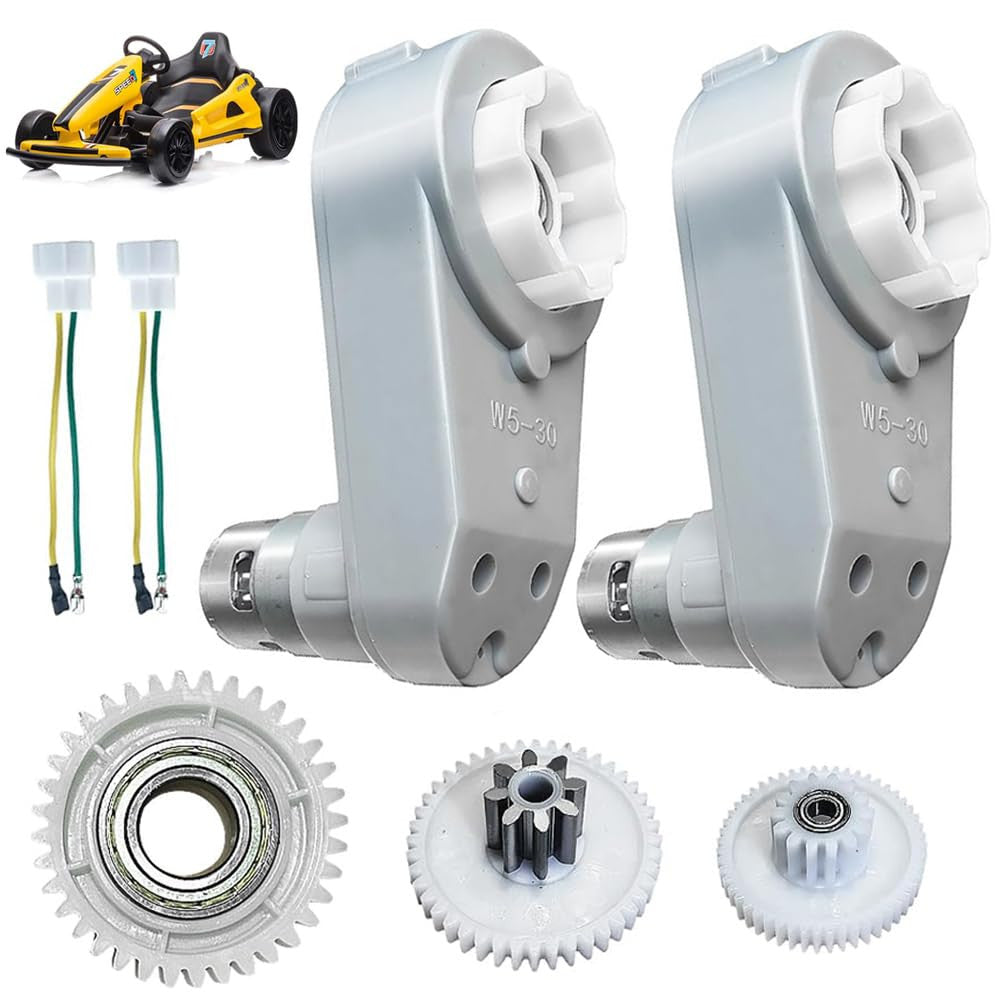

2-Pack 24V RS775 Motor Gearbox for Power Wheels Motor Gearbox Upgrade Kit
| Model Name | RS775 Motor |
| Number of Items | 2 |
| Item Highlight | 24V DC RS775 for Ride on Toy Car Replacement Motor Parts, Fast, High Torque, 280W, Steel Gear with Bearing, 18V 20V Wide Voltage |
| Included Components | Motor Gearbox |
| Part Number | RS775 Motor Gearbox |
| Speed | 27000 RPM |
| Voltage | 18V, 24V |
| Horsepower | 280 Watts |
| Material Type | Metal, Plastic |
Important Installation Notes
Steel Gear + Bearing Gear + High-Power Motor
Universal Voltage & Performance
Recommended to use with a 40A high-power controller and a 25A fuse.
-
Voltage Range
The motor operates within a voltage range of 12V-24V. Do not exceed 24V. Optimal performance is at 24V.
-
Compatibility
This motor is designed for DIY modifications or prototype replacements. Measure carefully before upgrading.
-
Installation Requirements
No professional installation required; however, precise measurements are essential for compatibility.
-
Installation Instructions
Requires matching with a 40A controller and a 25A fuse. The motor does not distinguish between left and right sides; adjust cable sequence if steering issues arise.
-
Outdoor Usage
This motor is suitable for outdoor use in power wheels and DIY electrical projects.
Customer Insights
-
Ensure to compare size data; RS775 motor is larger than RS550. Confirm compatibility before installation.
-
Pre-Purchase Considerations
Verify size, voltage, and power specifications before purchase.
Product Features
- 2PCS RS775 24 Volt 280 Watt Drive Engine with Gearbox for Power Wheel Upgrade. Requires a compatible controller of 40A or above and a fuse of 25A or above to prevent capacitor damage.
- Power output: 280W at 24V (360 RPM), 200W at 18V (270 RPM), and 180 RPM at 12V.

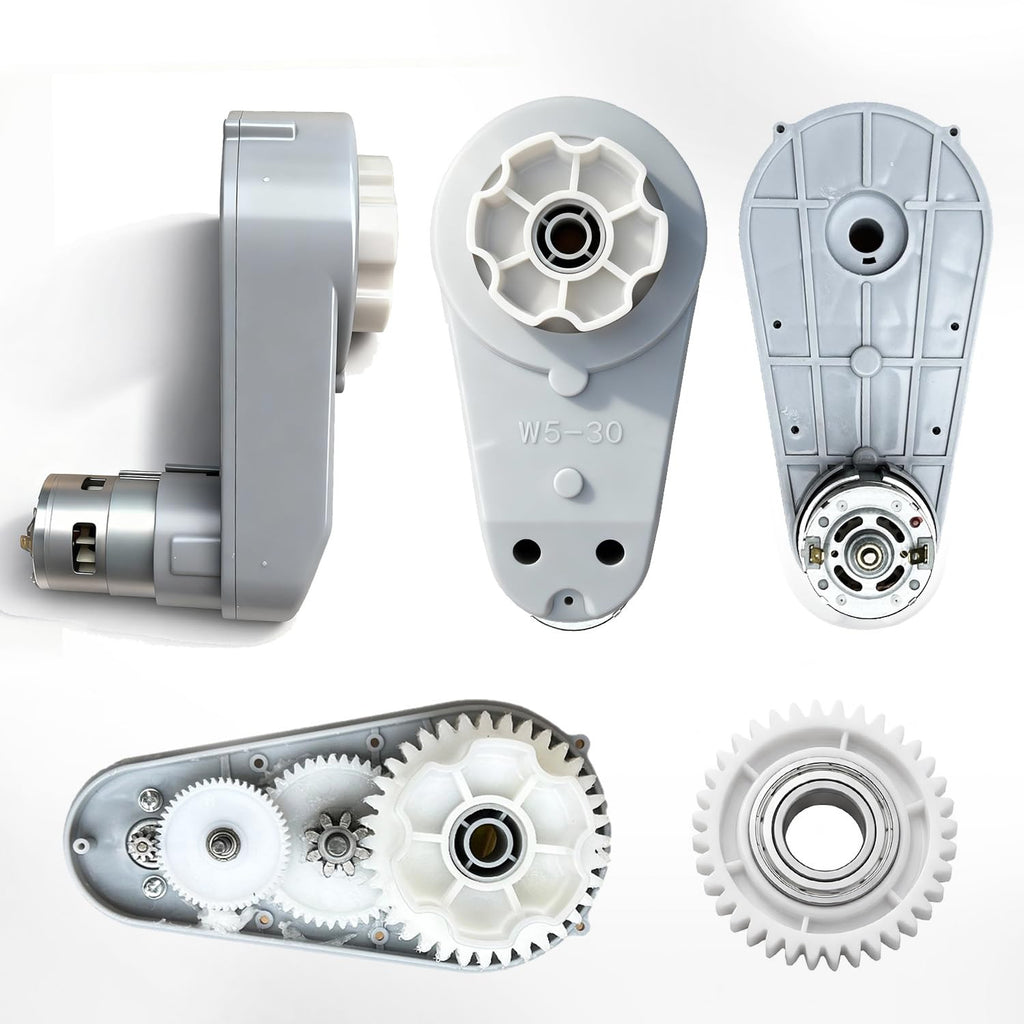

- High-strength composite gearbox shell for durability. Integrated bearings in gears reduce friction and extend service life.
- Gearbox speed ratio of 1:75 for high-speed output; motor power ensures superior torque.
- Dimensions for compatibility: Shaft Hole Diameter: 12mm (0.47"), Length: 185mm (7.28"), Max Width: 92mm (3.62"), Motor Diameter: 40mm (1.574"). Easy one-click installation.
- Designed for 24V battery use. Compatible with 12V, but speed will be halved.
- Installation holes for motor gearbox will be larger than RS550 due to motor diameter. Measure dimensions carefully.
