Description

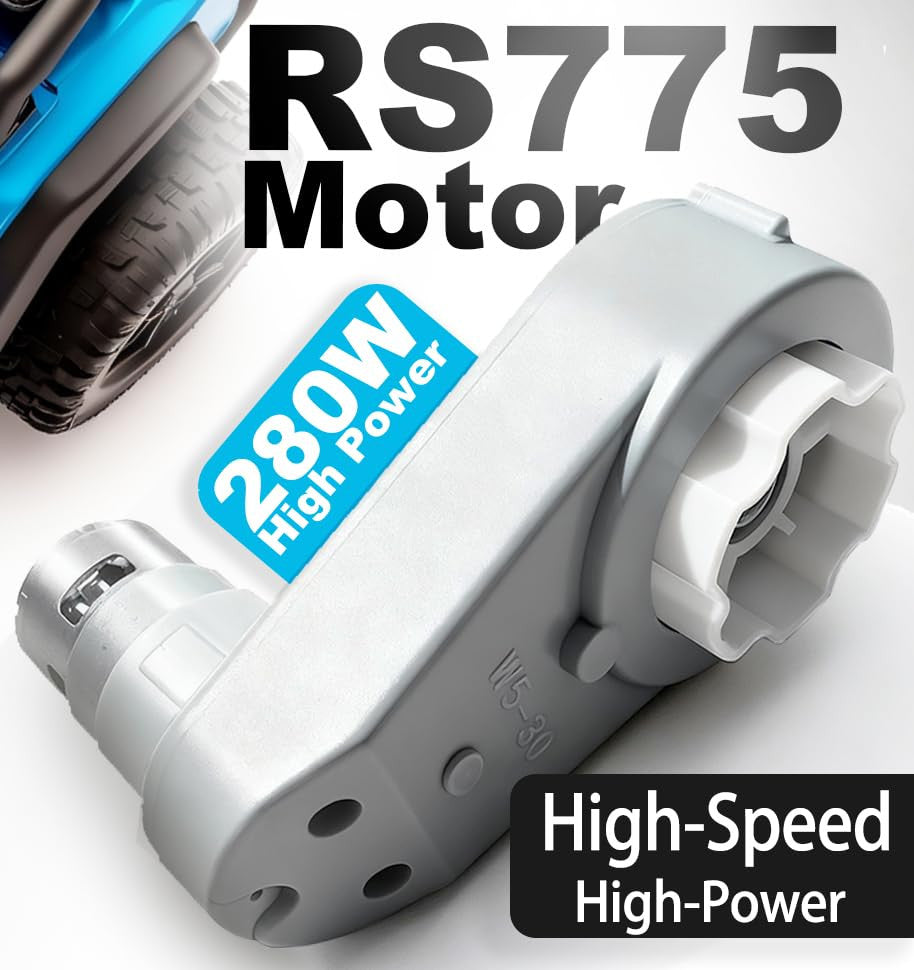

2-Pack 24V RS775 Motor Gearbox for Power Wheels Motor Gearbox Upgrade Kit
| Model Name | RS775 Motor |
| Number of Items | 2 |
| Item Highlight | 24V DC RS775 for Ride on Toy Car Replacement Motor Parts, Fast, High Torque, 280W, Steel Gear with Bearing, 18V 20V Wide Voltage |
| Included Components | Motor gearbox |
| Part Number | RS775 Motor gearbox |
| Speed | 27000 rpm |
| Voltage | 18 volts, 24 volts |
| Horsepower | 280 watts |
| Material Type | Metal, Plastic |
Important Size Comparison
Steel Gear + Bearing Gear + High-Power Motor
Universal Voltage Performance

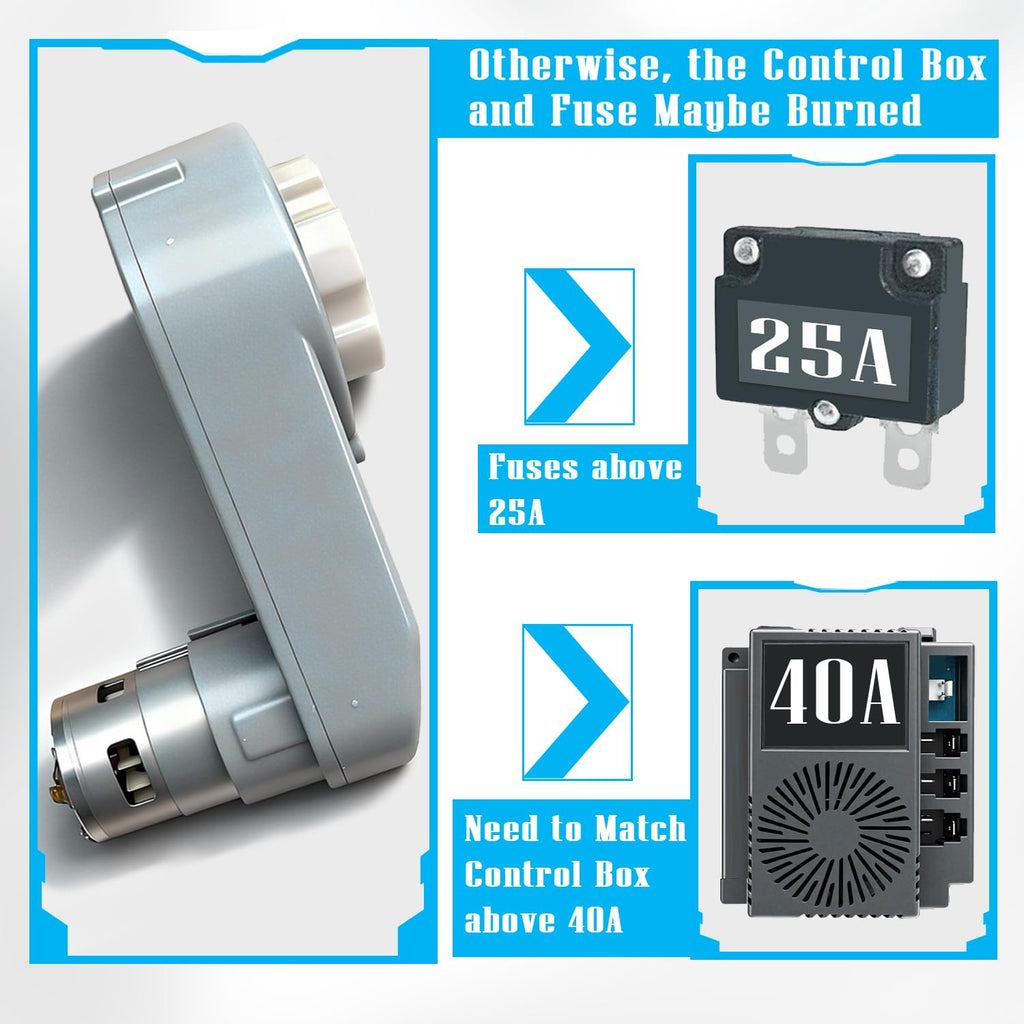

Recommended to use with a 40A high-power controller and a 25A fuse.
-
What is the voltage range of the motor?
The voltage range is 12V-24V. Do not exceed 24V. Using 12V will reduce speed, while 24V provides optimal performance.
-
Which vehicles does it match with?
This motor is suitable for DIY modifications or prototype replacements. Measure carefully before upgrading.
-
Do you need professional installation?
No professional installation needed. Ensure to measure the motor size against your model's specifications.
-
Do you have installation instructions?
Requires a controller of 40A or above and a fuse of 25A or above. The motor is not side-specific; adjust cable sequence if steering is incorrect.
-
Can it be used outdoors?
This motor is designed for power wheel upgrades and DIY projects, suitable for outdoor use in any environment!
-
What do customers usually say?
Customers are reminded to compare size data. The RS775 motor is larger than the RS550 motor gearbox. Ensure proper fitting!
-
What else should I pay attention to?
Make sure to compare size, voltage, and power before purchasing.

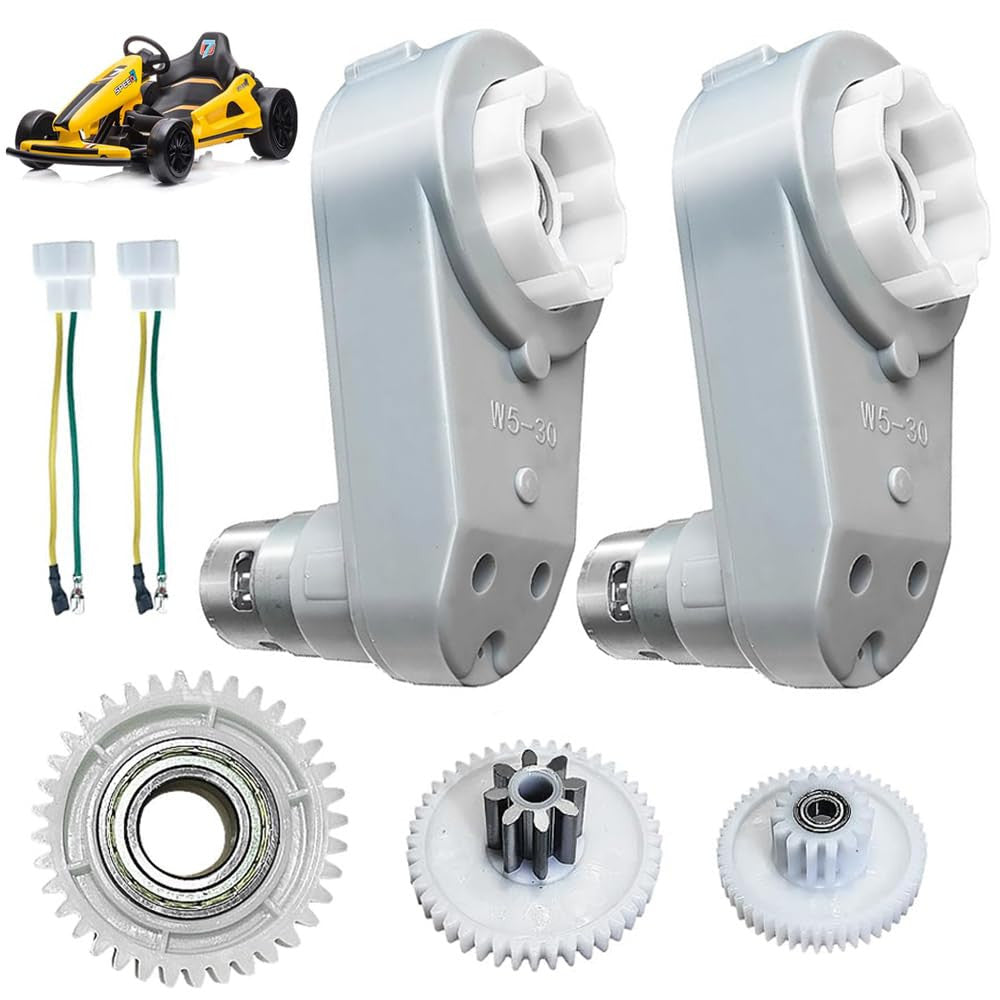

- 2PCS RS775 24 Volt 280 Watt Drive Engine with Gearbox for Power Wheel Motor Upgrade 18V. Requires matching with a controller of 40A or above and a fuse of 25A or above to prevent capacitor damage.

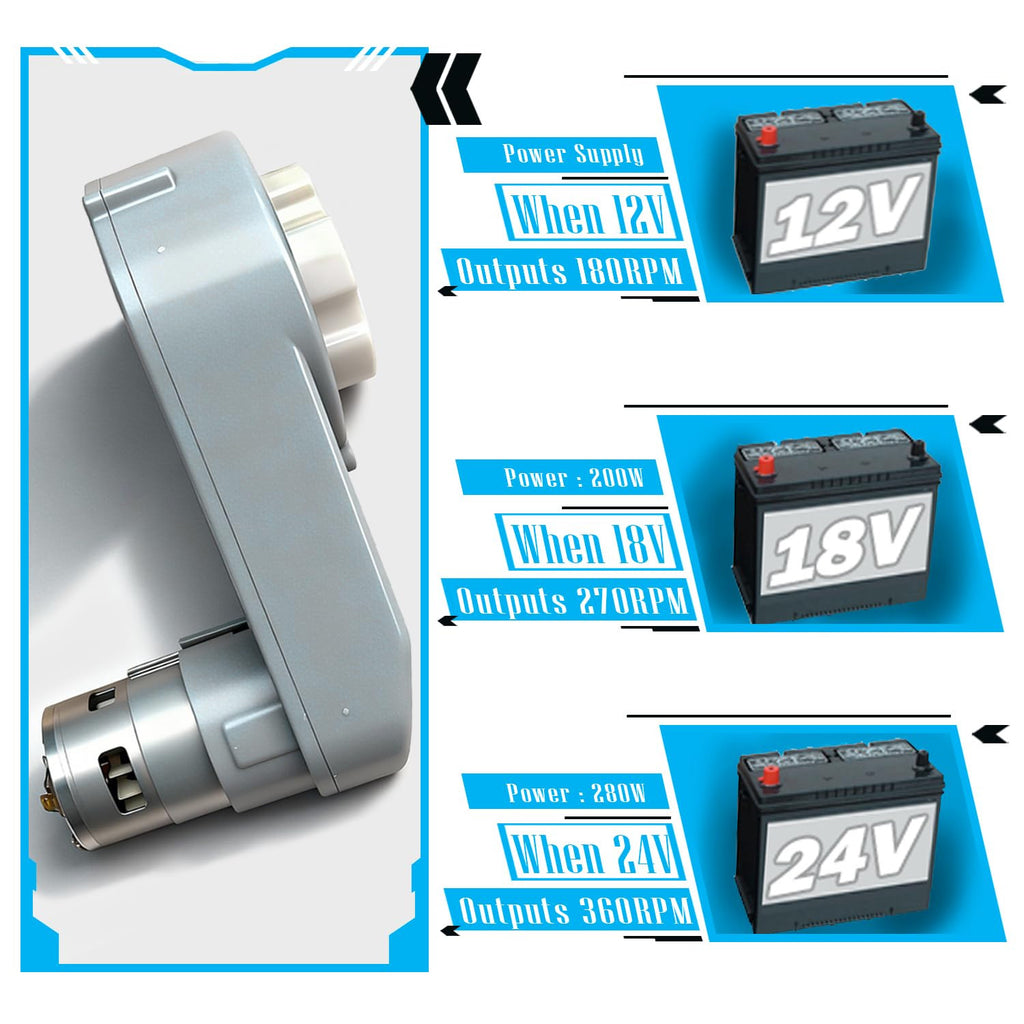

- At 24V, the motor provides 280W and the gearbox outputs 360RPM per minute. At 18V, it outputs 270RPM per minute, and at 12V, 180RPM per minute.

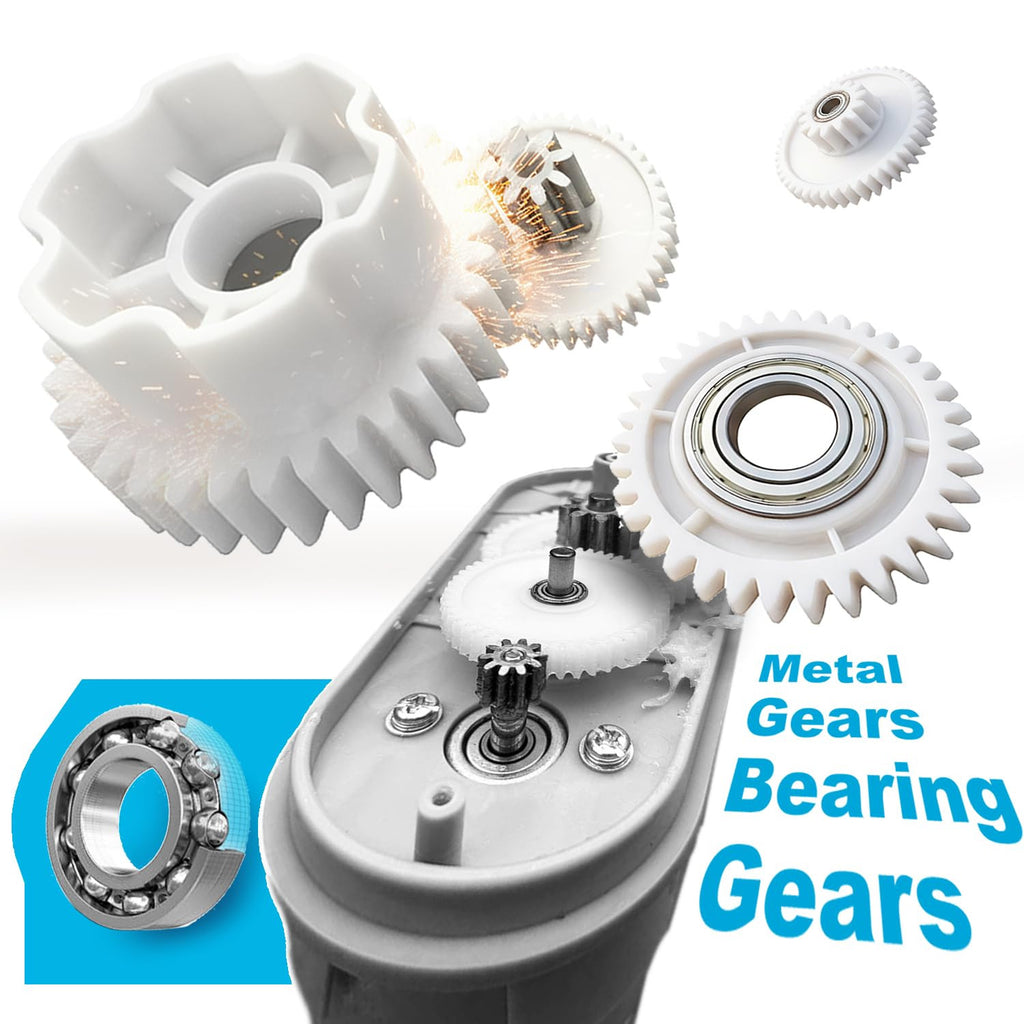

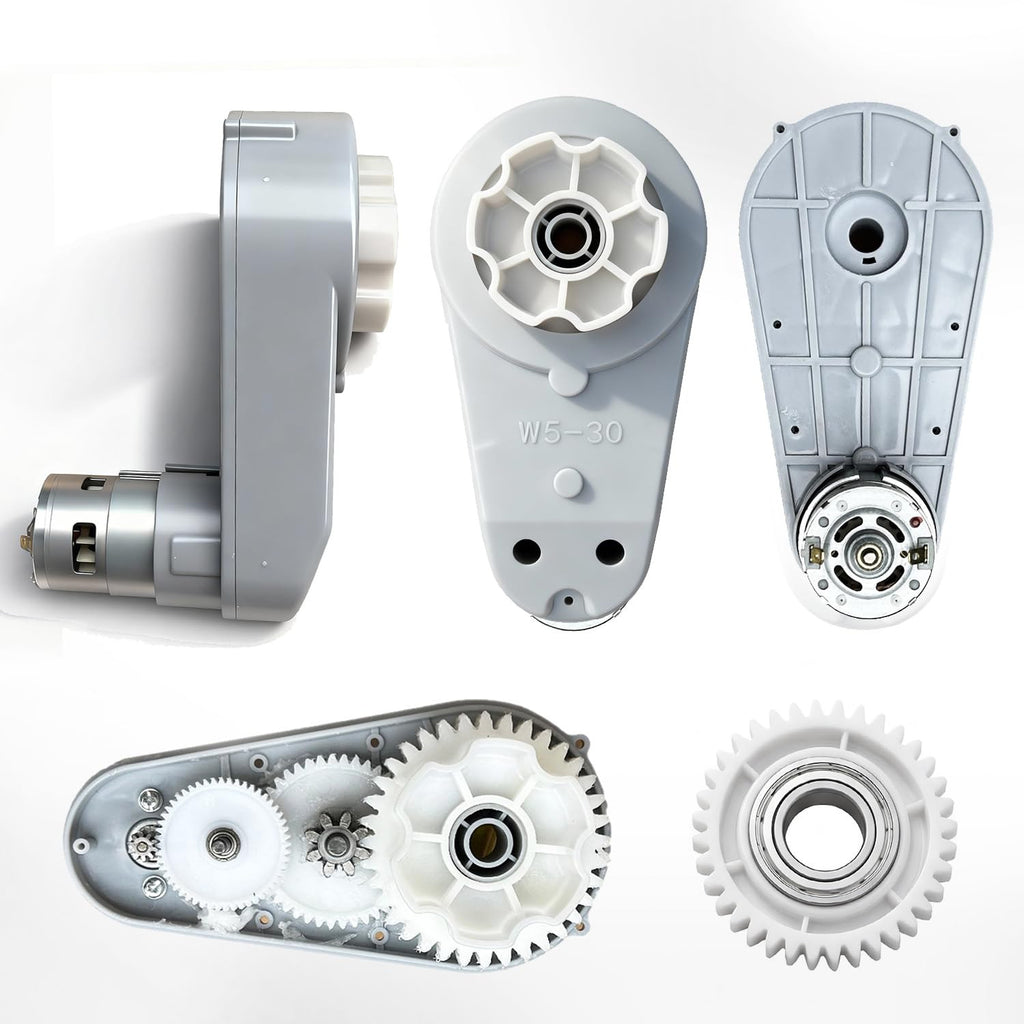

- The Gearbox shell is made from high-strength composite materials, resistant to deformation. Both small and large gears feature built-in bearings for reduced friction and increased lifespan.
- Gearbox speed ratio is 1:75, ensuring high speed and torque output.

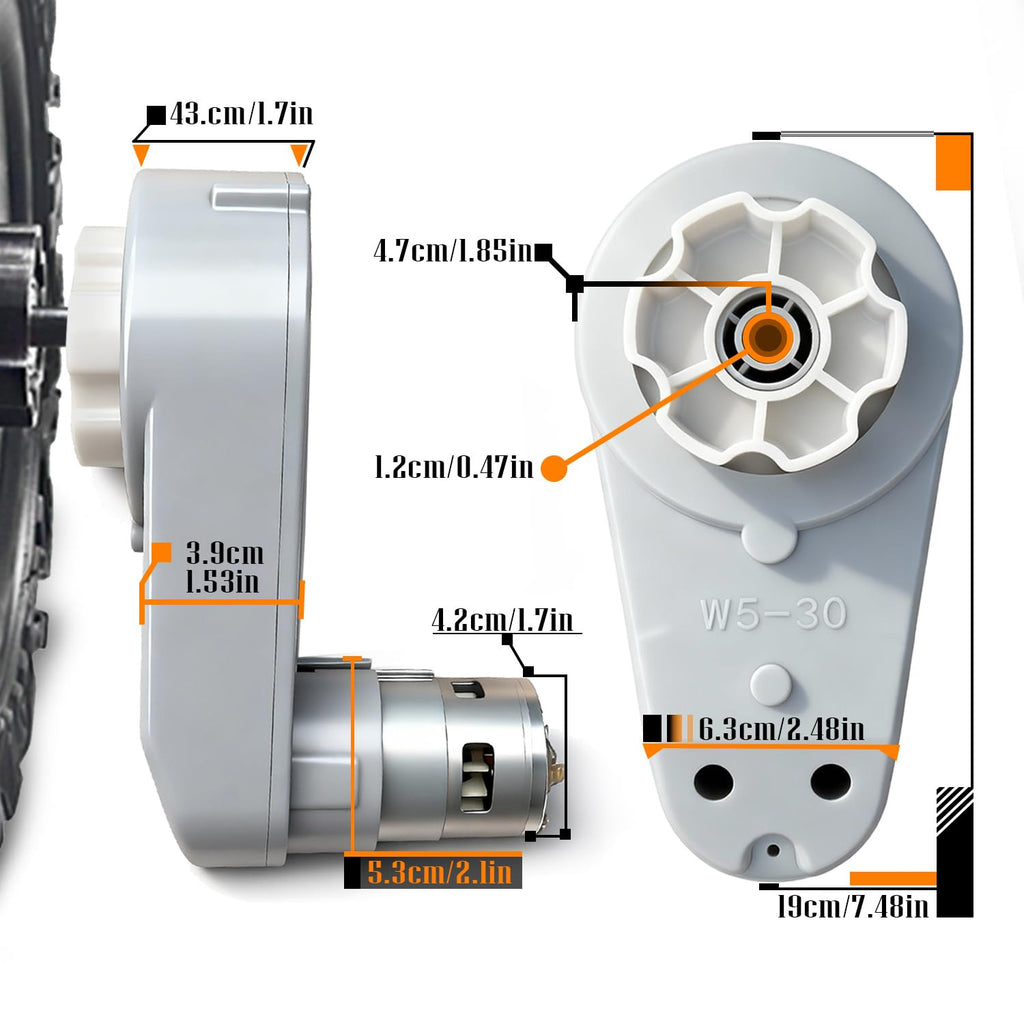

- Carefully compare the original motor gearbox dimensions: Shaft hole diameter: 12mm (0.47"); Length: 185mm (7.28"); Max Width: 92mm (3.62"); Motor diameter: 40mm (1.574"). Easy installation for kids' ride-on cars.
- Designed for use with 24V battery. Can also be used with 12V, but speed will be halved. Gearbox design ensures fast performance.
- Installation holes for this motor gearbox are larger than those of the RS550. Measure all dimensions before purchasing for perfect installation.
