Description

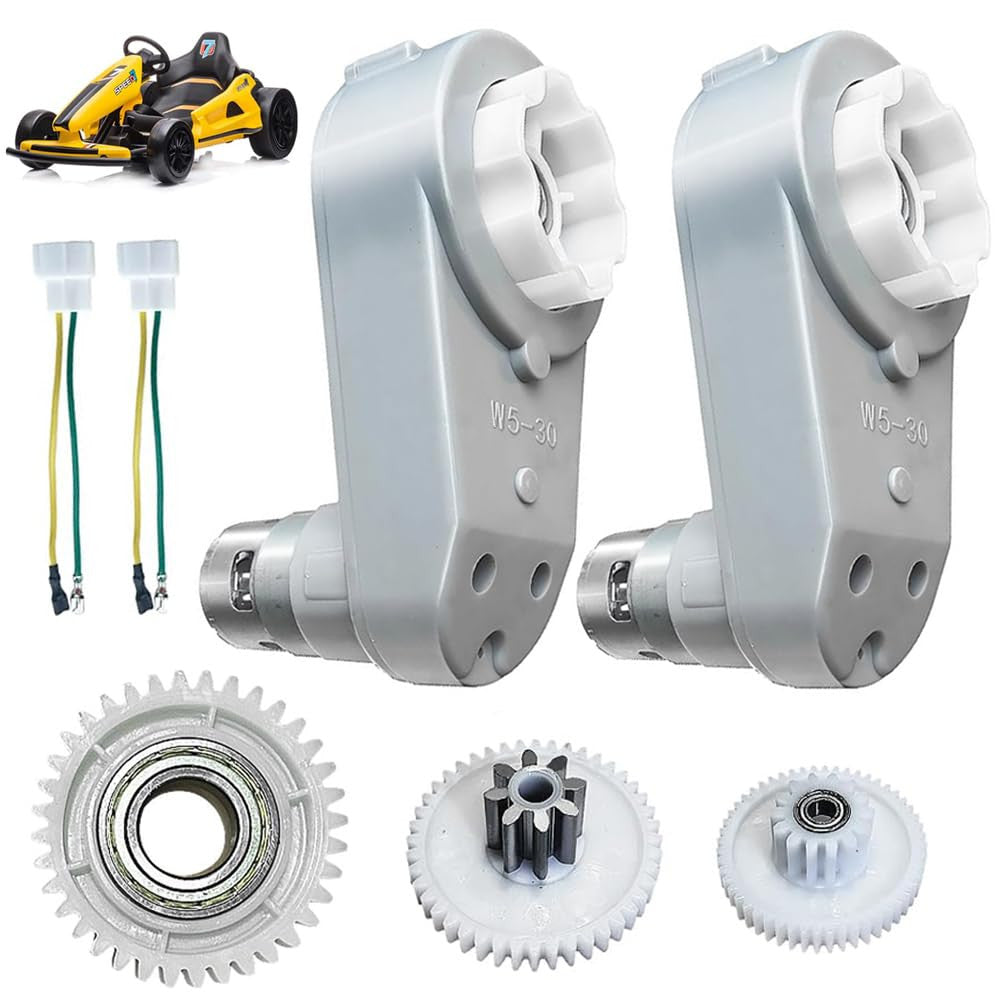

2-Pack 24V RS775 Motor Gearbox for Power Wheels Motor Gearbox Upgrade Kit
Specifications
| Model Name | RS775 Motor |
|---|---|
| Included Components | Motor Gearbox |
| Part Number | RS775 Motor Gearbox |
| Speed | 27000 RPM |
| Voltage | 18V, 24V |
| Horsepower | 280 Watts |
| Material Type | Metal, Plastic |
Performance Overview
Motor Speed at Different Voltages
- 12V: 13500 RPM
- 18V: 20250 RPM
- 24V: 27000 RPM
Gearbox Outputs
- 12V: 180 RPM
- 18V: 270 RPM
- 24V: 360 RPM
Key Features

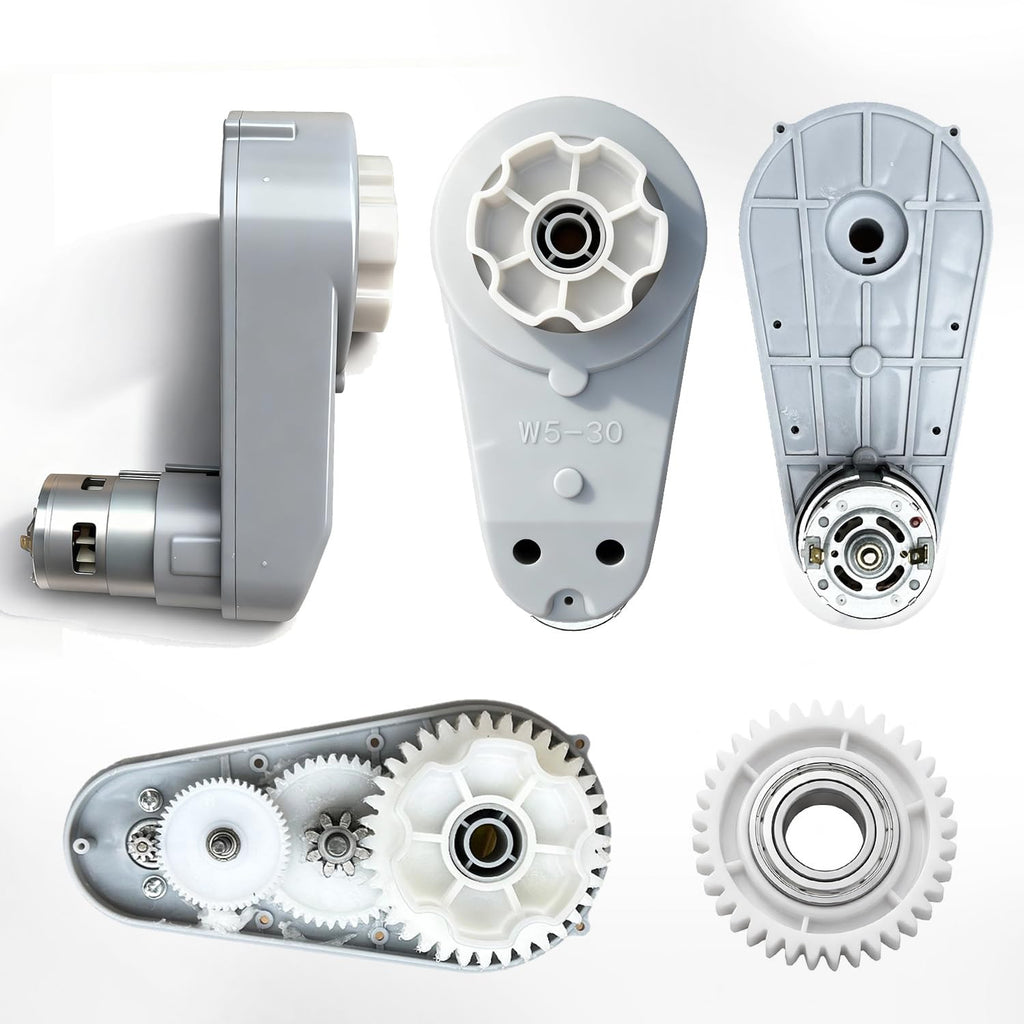

- High-Power Motor with Steel Gear and Bearing for enhanced durability.
- Universal voltage compatibility (12V-24V) for versatile applications.
- Recommended to use with a 40A controller and a 25A fuse for optimal performance.
- Perfect for DIY modifications and replacements in ride-on toy cars.
- Easy installation with one-click wiring for user-friendly setup.
Installation Notes
- Ensure to measure the dimensions of your original motor gearbox before purchasing.

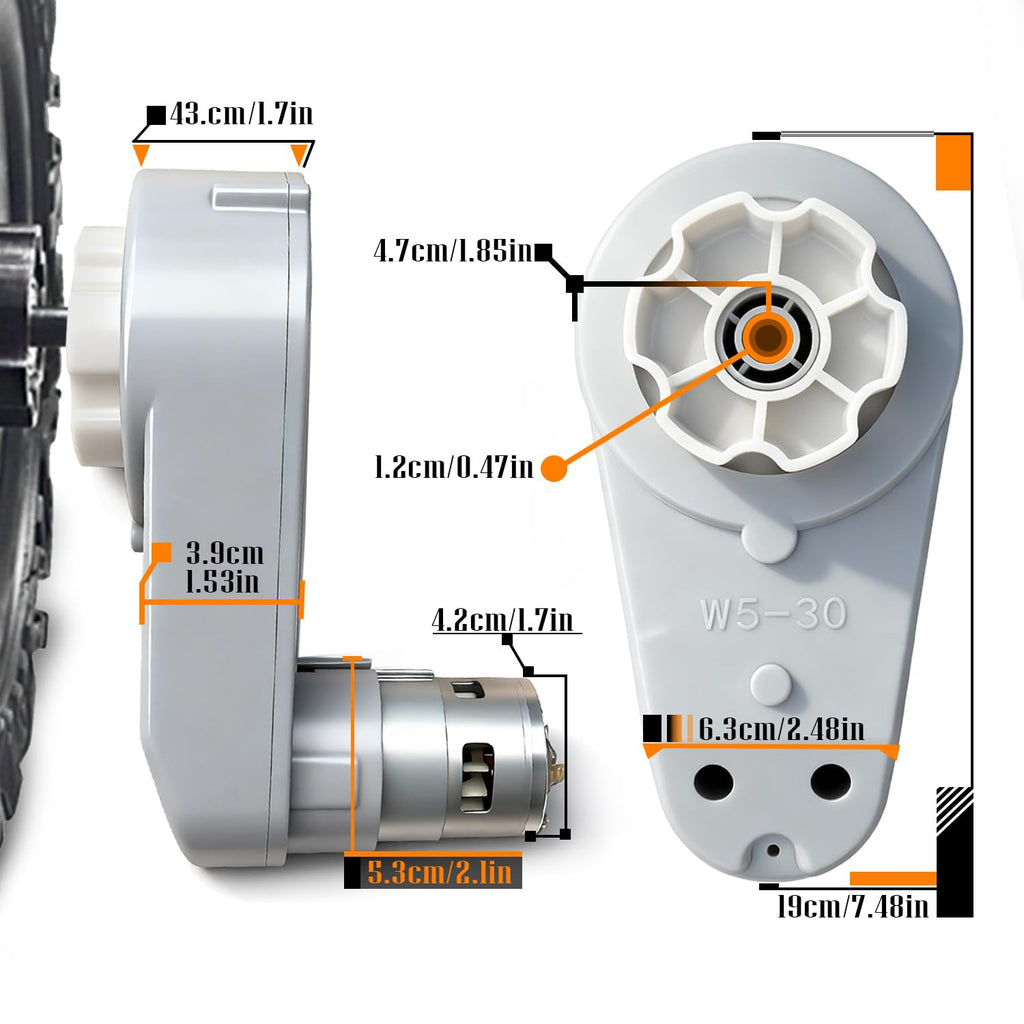

- Shaft Hole Diameter: 12mm (0.47"), Length: 185mm (7.28"), Max Width: 92mm (3.62"), Motor Diameter: 40mm (1.574").
- The installation holes may be larger than those of the RS550 model due to motor size.
Usage Guidelines
- This motor is suitable for outdoor use in power wheels and various DIY electrical projects.
- When using a 12V battery, speed will be reduced; optimal performance is at 24V.
Customer Feedback
Customers have noted the importance of comparing size data before installation, as the RS775 motor is larger than the RS550 gearbox.
