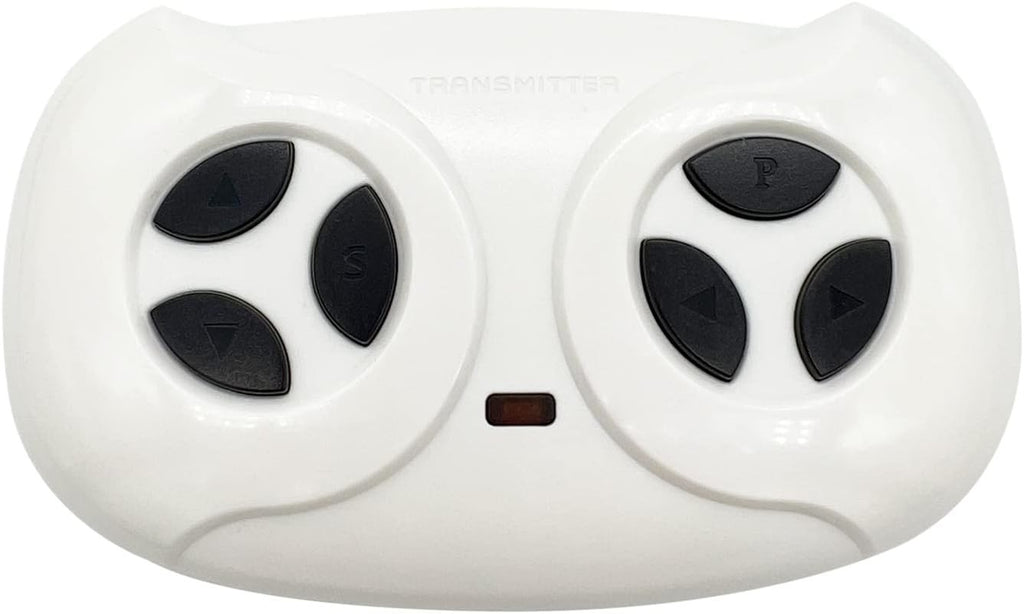

2.4G Bluetooth Remote Control Transmitter for Ride-On Car

Bluetooth Remote Control for Ride-On Car - JR1602 Controller Transmitter

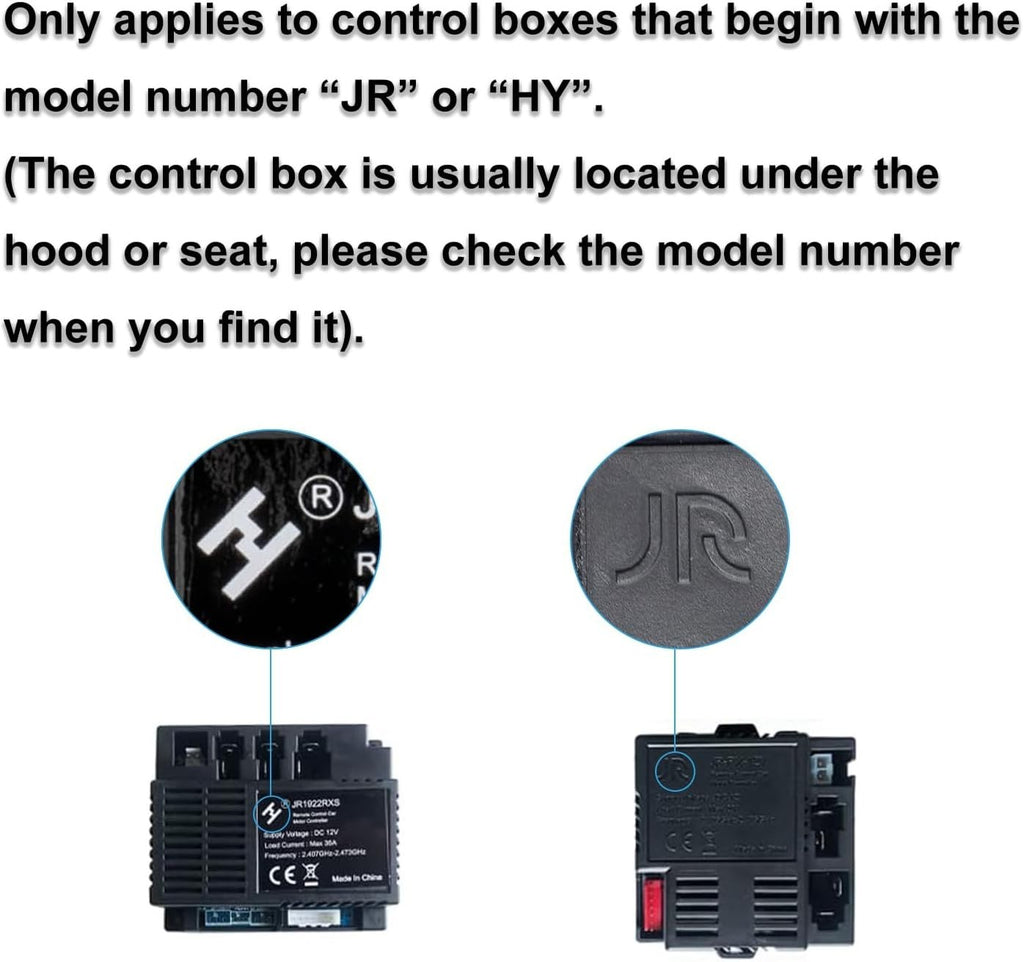

• Compatibility: Designed specifically for children's electric vehicles with JR receiver models. Please ensure your control box model matches the following: WEEL YE and CSR are not universal models.

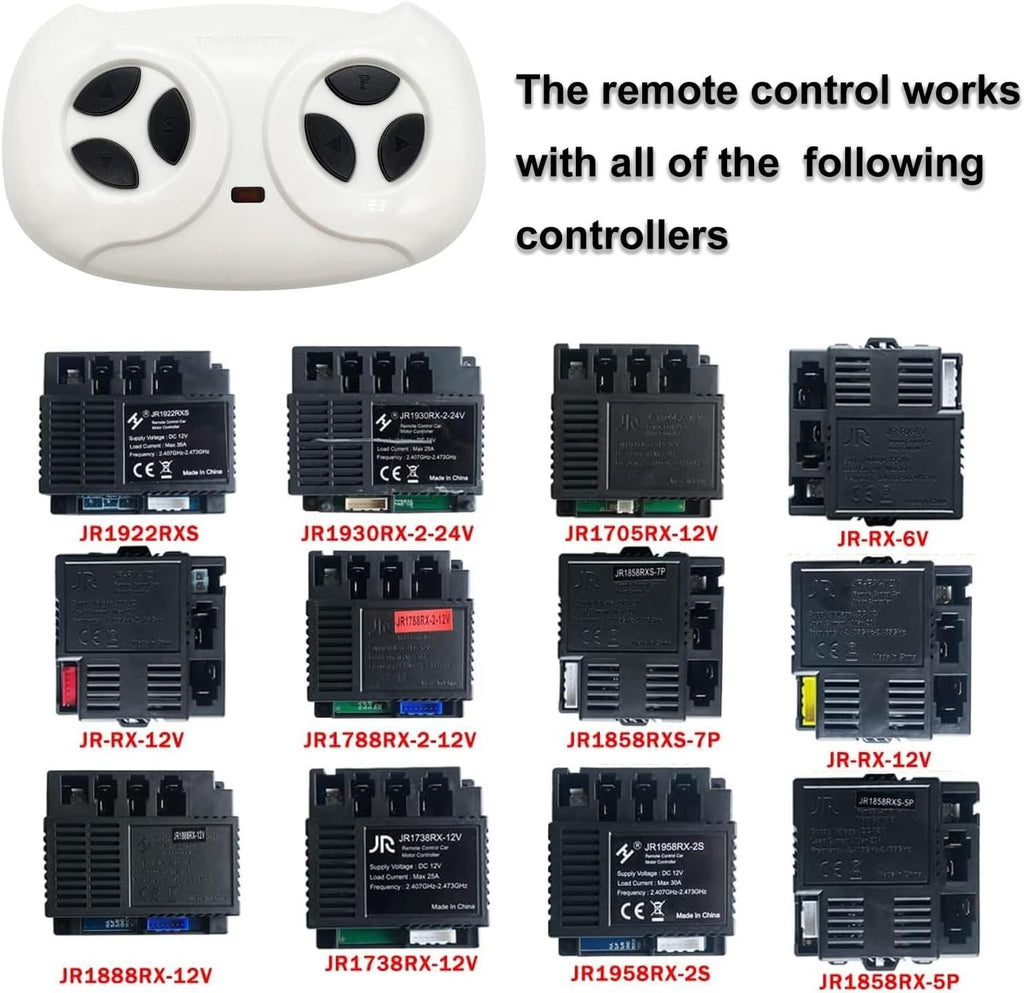

• Compatible JR Receiver Models:
  • JR1922RXS-2
  • JR1930RX-2-24V
  • JR1630RX
  • JR1625RX
  • JR1801RX-1S-12V
  • JR1930RXZ-24V
  • JR1930RX-3-24V
  • JR1930RX-4P-24V
  • HY2005RX-2-24V
  • JR1922RXS-3W-12V
  • JR1922RXS-AD
  • HY2025RX-se-12V
  • JR1816RXS
  • JR1807RX
  • ZCY1810RX
  • JR1858RX
  • JR1958RX-2S
  • JR1810RX
  • 1922RXS
  • 1922RXZ
  • JR1738RX
  • JR1936RX-3W
  • JR1543RX
  • HY2005RX-RM-24V
  • HY2005RX-24V/40A
  • JR1932RX-24V

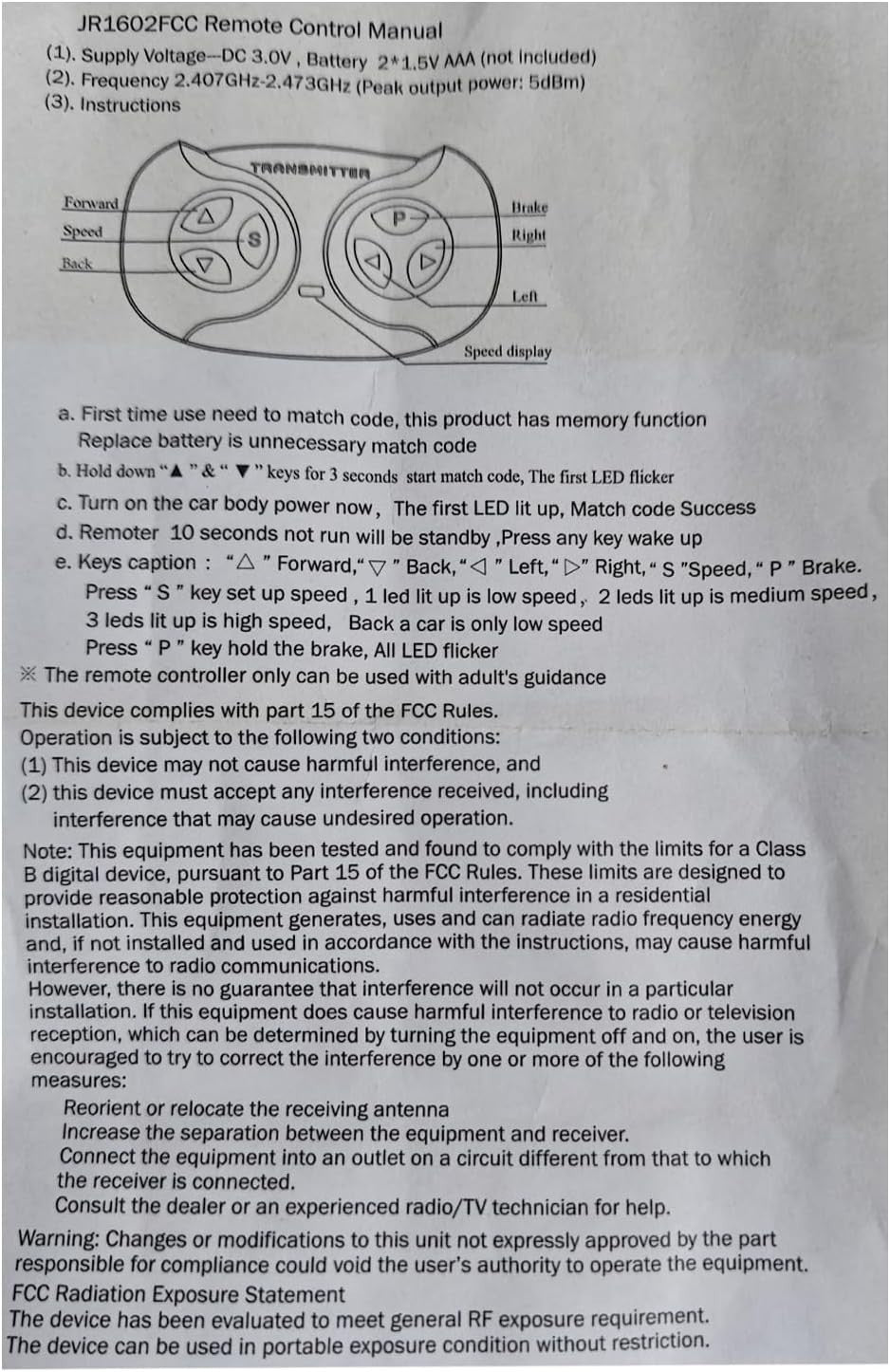

• Remote Control Setup:
  1. Insert two AAA batteries into the remote control.
  2. Ensure the vehicle's power switch is turned off.
  3. Press and hold the “▲” and “▼” buttons for 3-5 seconds until the first LED flickers.
  4. Turn on the vehicle's power switch. When the red light stops flashing, pairing is successful. If pairing fails, repeat the steps.
• Usage Note: The receiver and remote control are paired components. If the receiver is damaged, the remote will become unusable. Verify the receiver is functioning before purchasing.
• Package Contents: 1 x Remote Control

Control Functions:

• Speed Setting:
  • 1 LED lit - Low Speed
  • 2 LEDs lit - Medium Speed
  • 3 LEDs lit - High Speed
• Direction Control:
  • “▲” - Forward
  • “▼” - Back
  • “ ” - Left
  • “ ” - Right
• Brake: Press and hold “P” key to activate brake; all LEDs will flicker.
