2.4G Bluetooth Remote Control and JR1922RXS-3W-12V Receiver Kit

Product Description:
Ensure compatibility with your electric ride-on car by checking the control box inside your vehicle. If the appearance matches your existing control box, this part will fit your car.

Specifications:

• Model Number: JR1922RXS-3W-12V
• Voltage: 12V
• Control Method: 2.4G Bluetooth

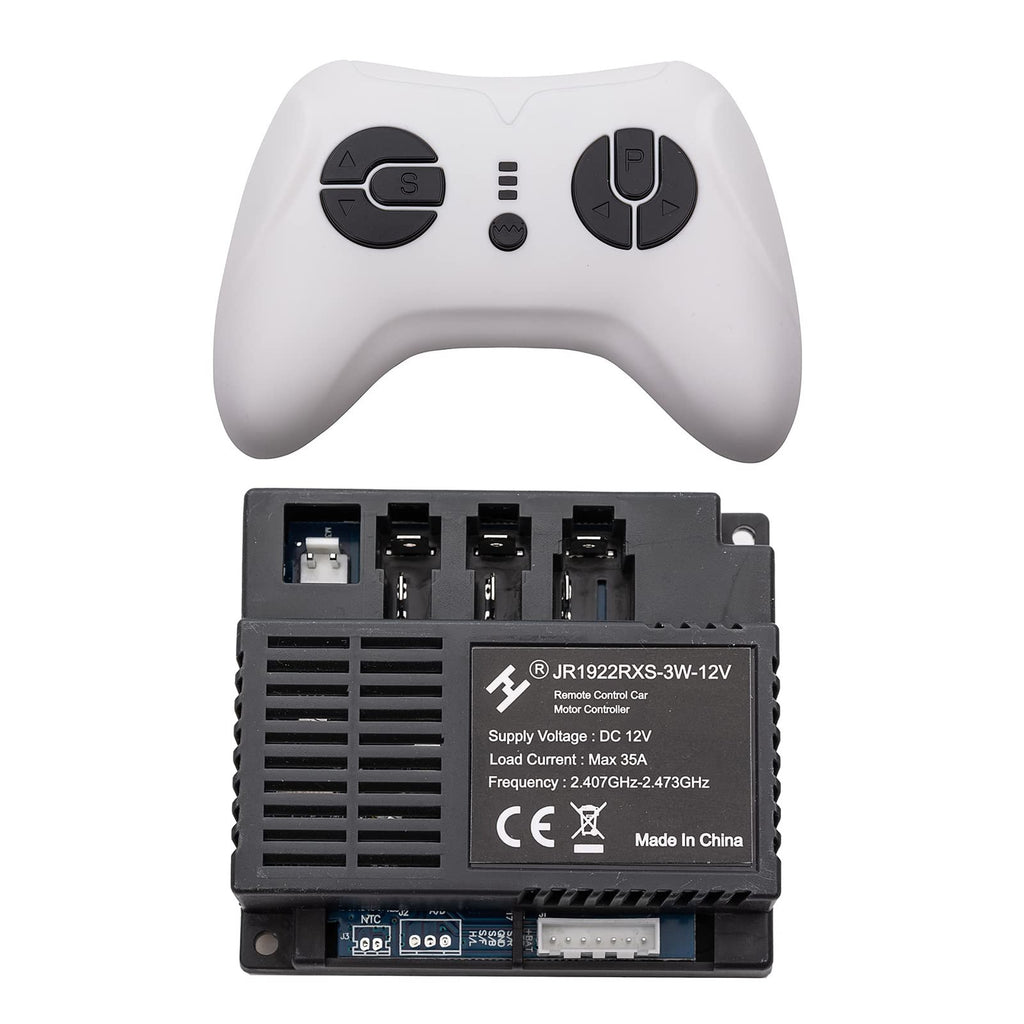

Package Content:

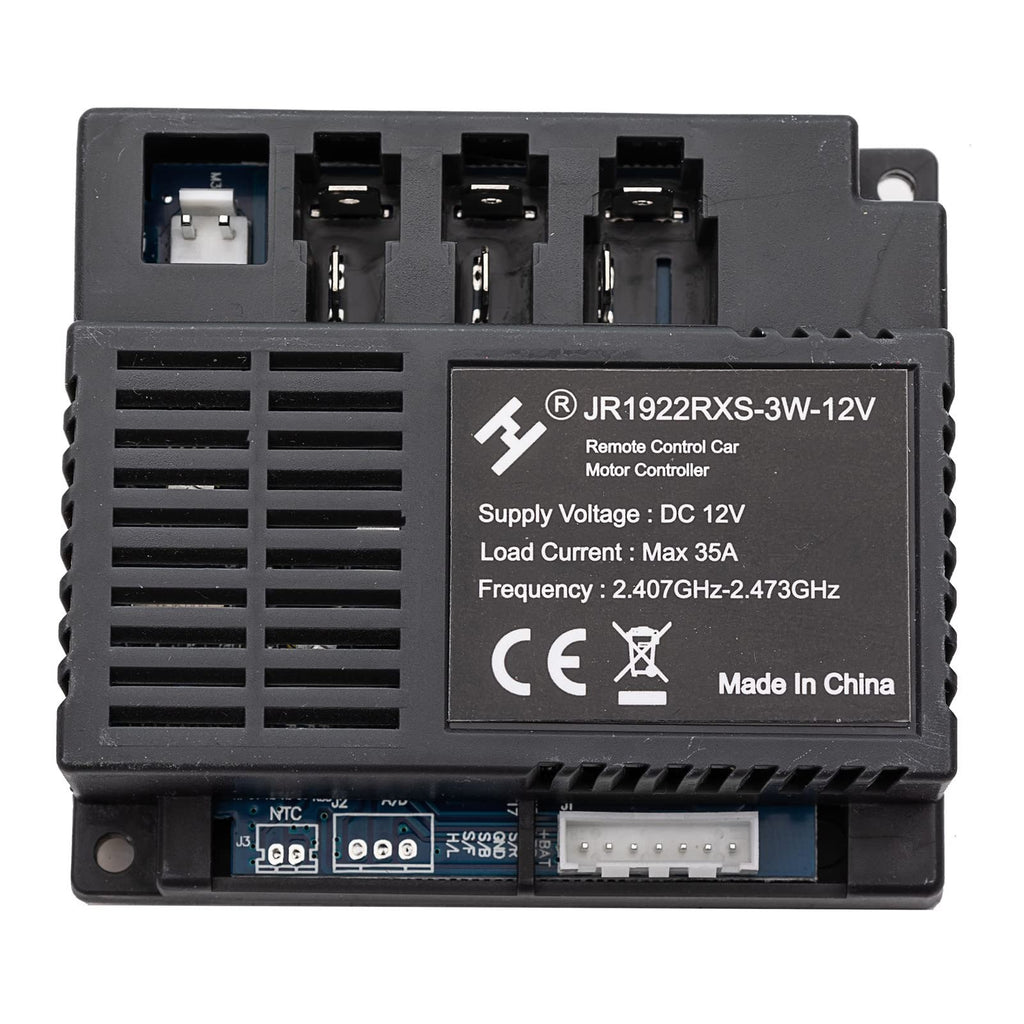

• 1 x Control Box

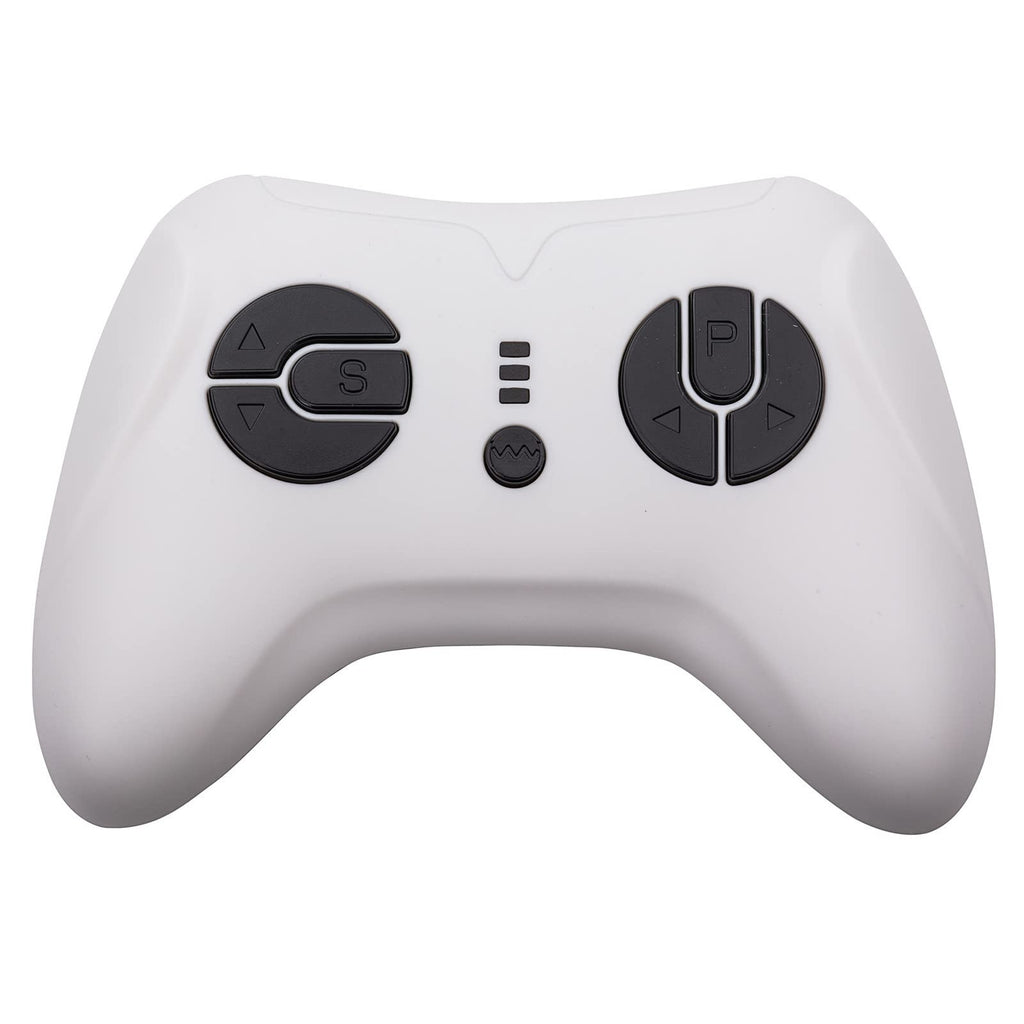

• 1 x Remote Control

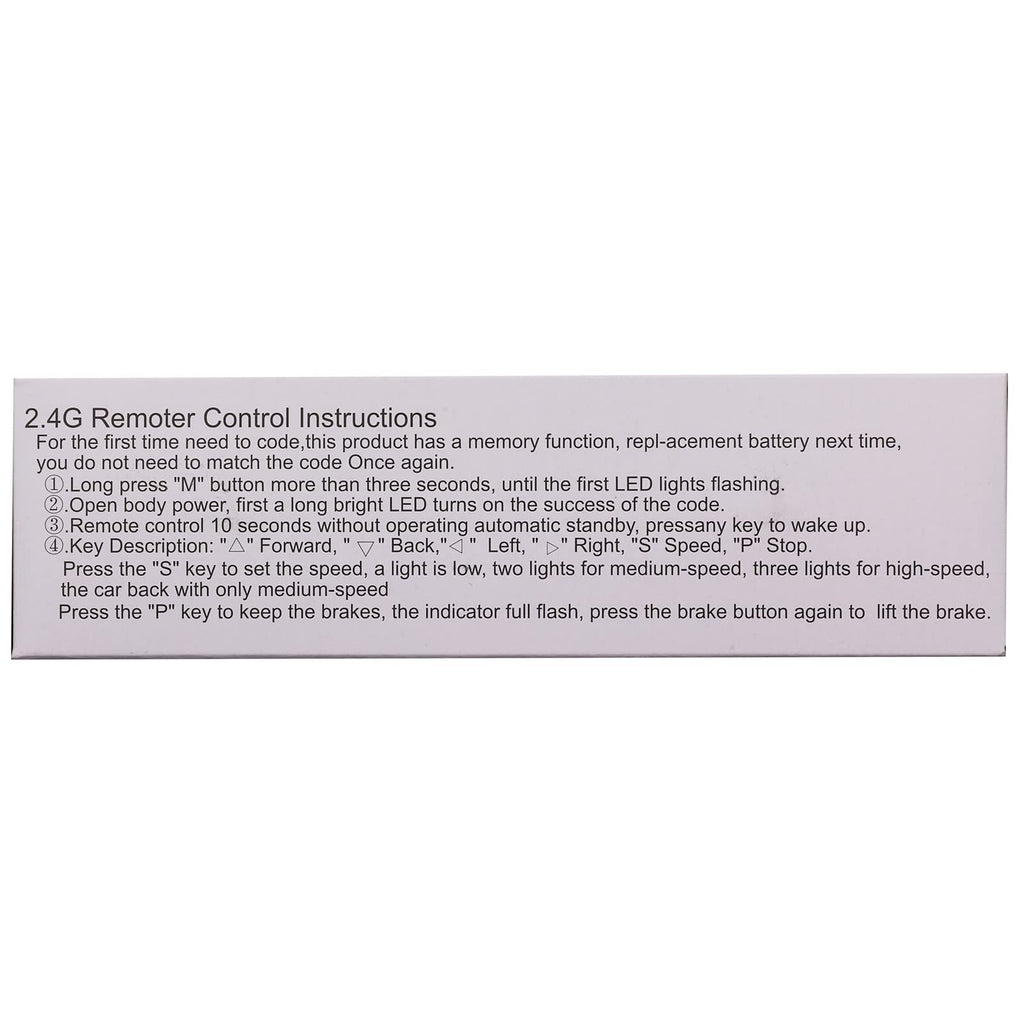

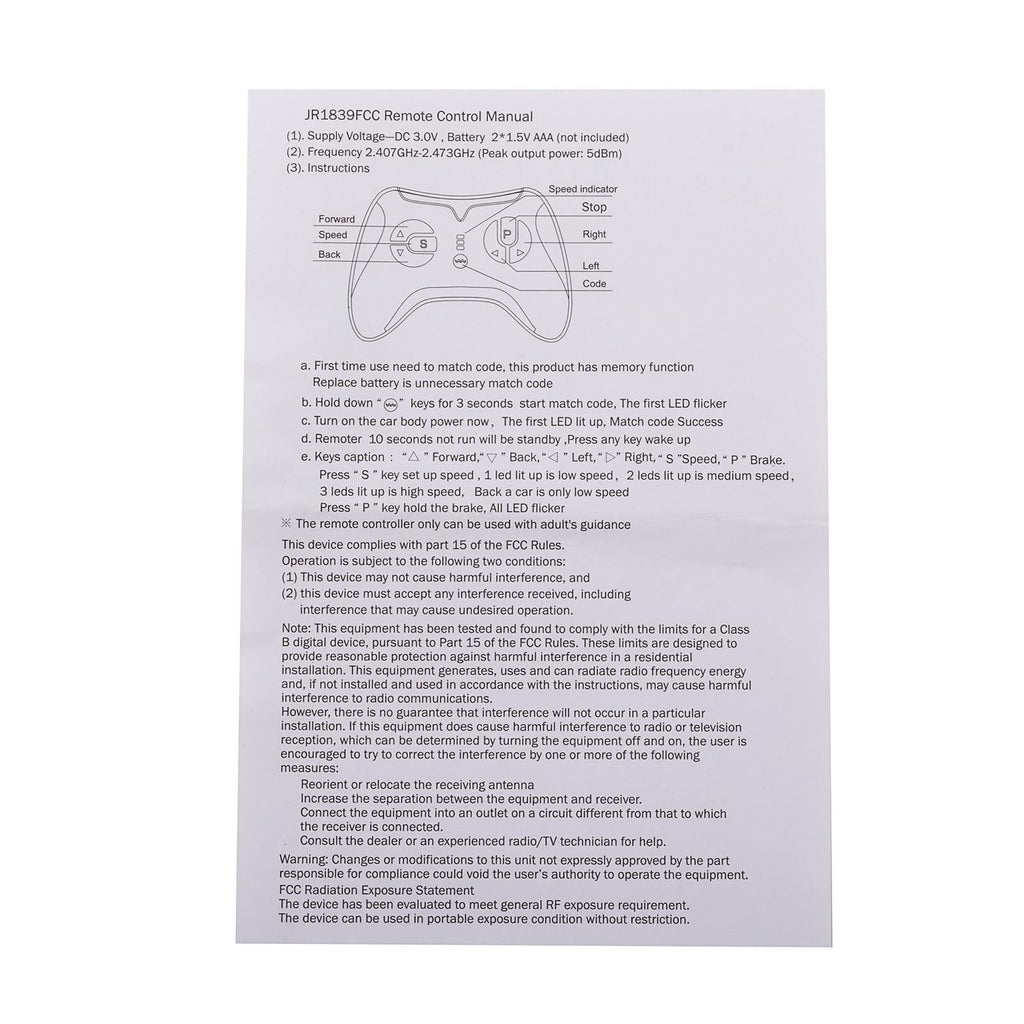

Instructions:

1. The Remote Controller requires two AAA batteries (not included).
2. Turn off the power switch on the vehicle.
3. Hold down the “▲” and “▼” keys for 3 seconds to start pairing. The first LED will flicker.
4. Turn on the vehicle's power switch. When the red indicator light stops flashing, the pairing is successful.

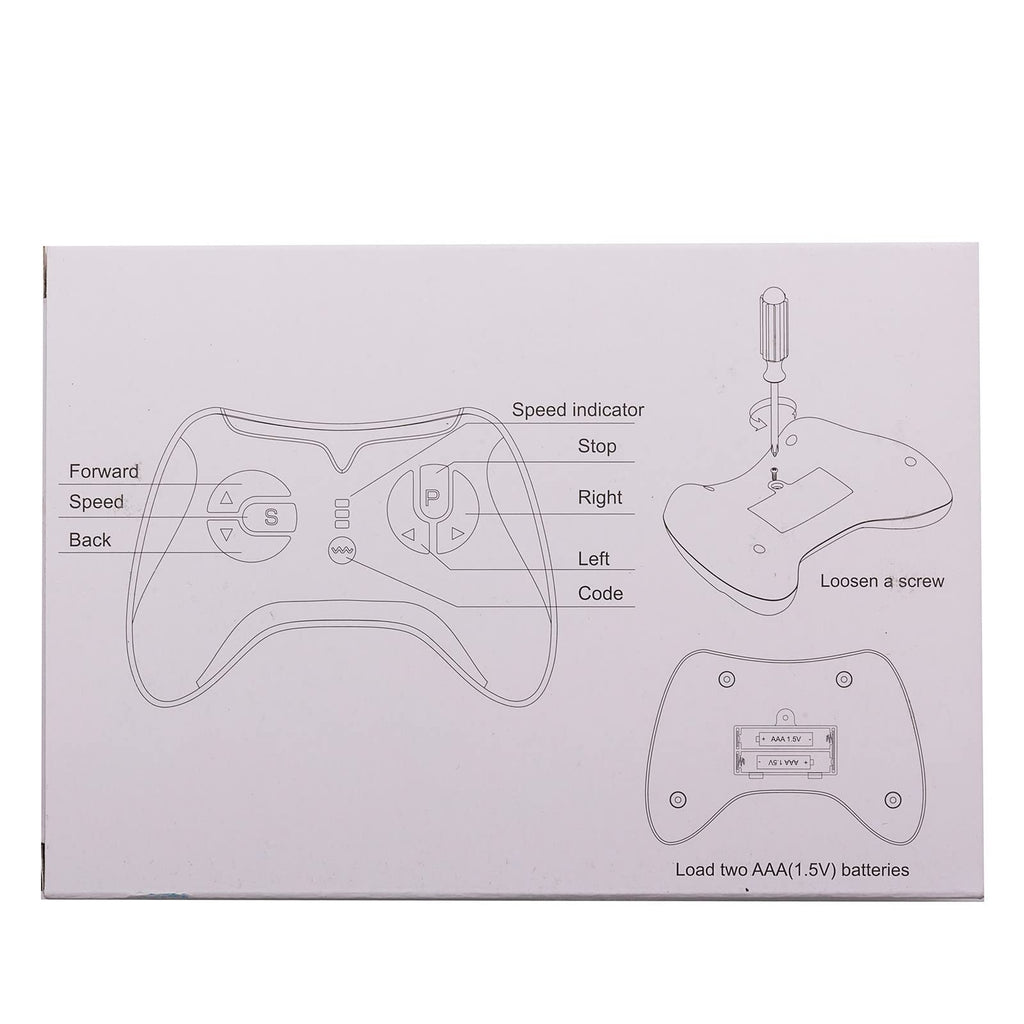

Key Functions:

• S - Set up speed:
  • 1 LED lit = Low speed
  • 2 LEDs lit = Medium speed
  • 3 LEDs lit = High speed
• ▲ - Forward
• ▼ - Back
• ◀ - Left
• ▶ - Right
• P - Press to hold the brake; all LEDs will flicker.

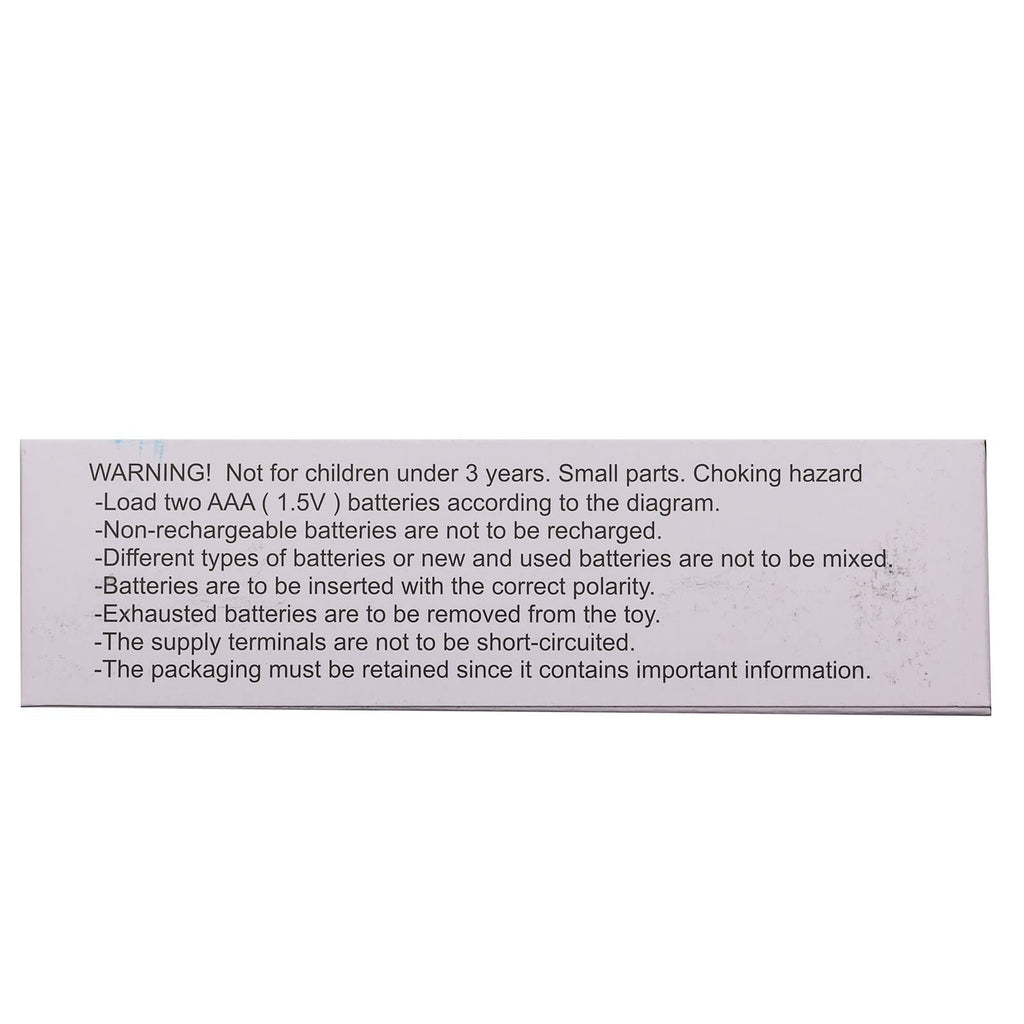

Warnings:

• Not suitable for children under 3 years. Small parts present a choking hazard.
• Use two AAA (1.5V) batteries as per the diagram.
• Do not recharge non-rechargeable batteries.
• Do not mix different battery types or new and used batteries.
• Insert batteries with correct polarity.
• Remove exhausted batteries from the toy.
• Do not short-circuit the supply terminals.
• Keep the packaging for important information.

Note: The 2.4G Bluetooth Remote Control and JR1922RXS-3W-12V Control Box Kit includes a slow start function, eliminating the need for additional slow starter installation. Ensure that the appearance of the purchased part matches the original.

Batteries are not included.

To sync with your car, simultaneously hold down the “▲” and “▼” keys for 3-5 seconds.
