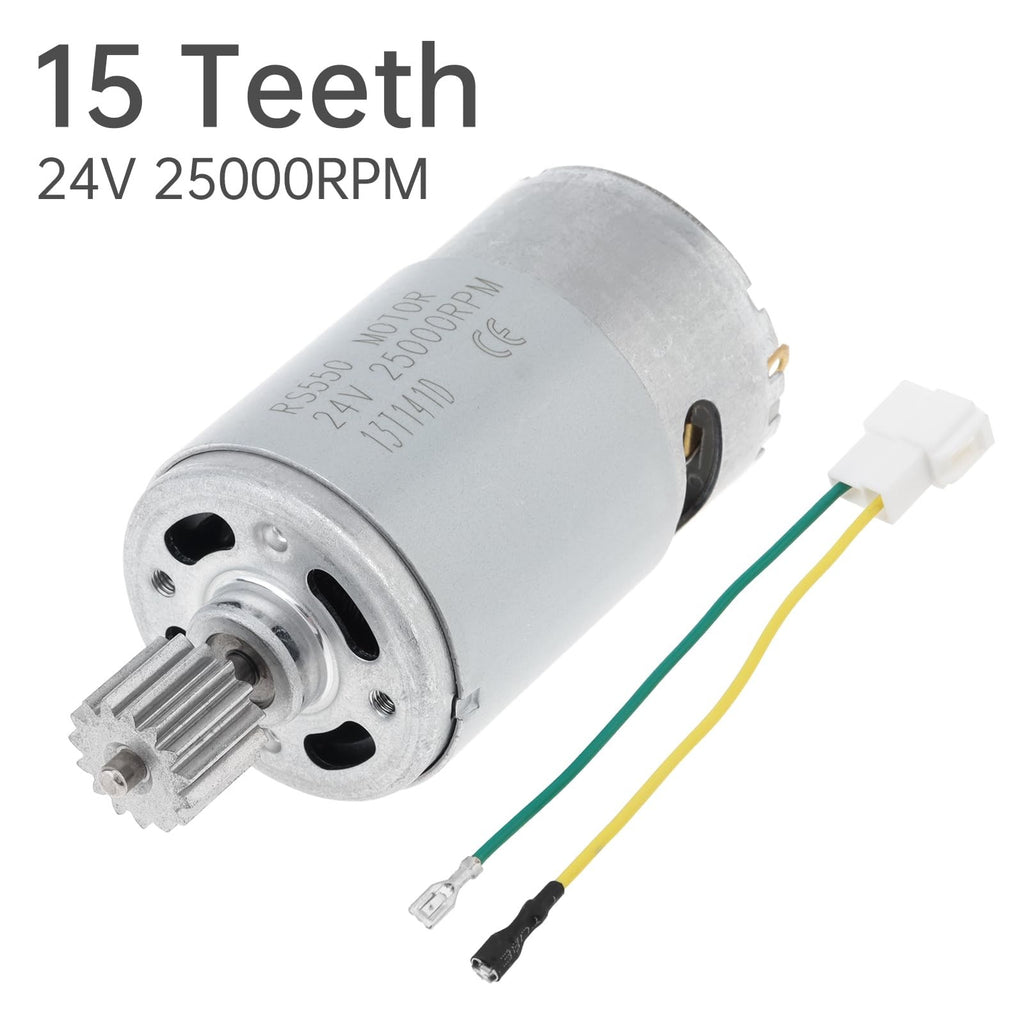

15 Teeth RS550 DC Motor 24V 25000RPM High Speed Electric Motor

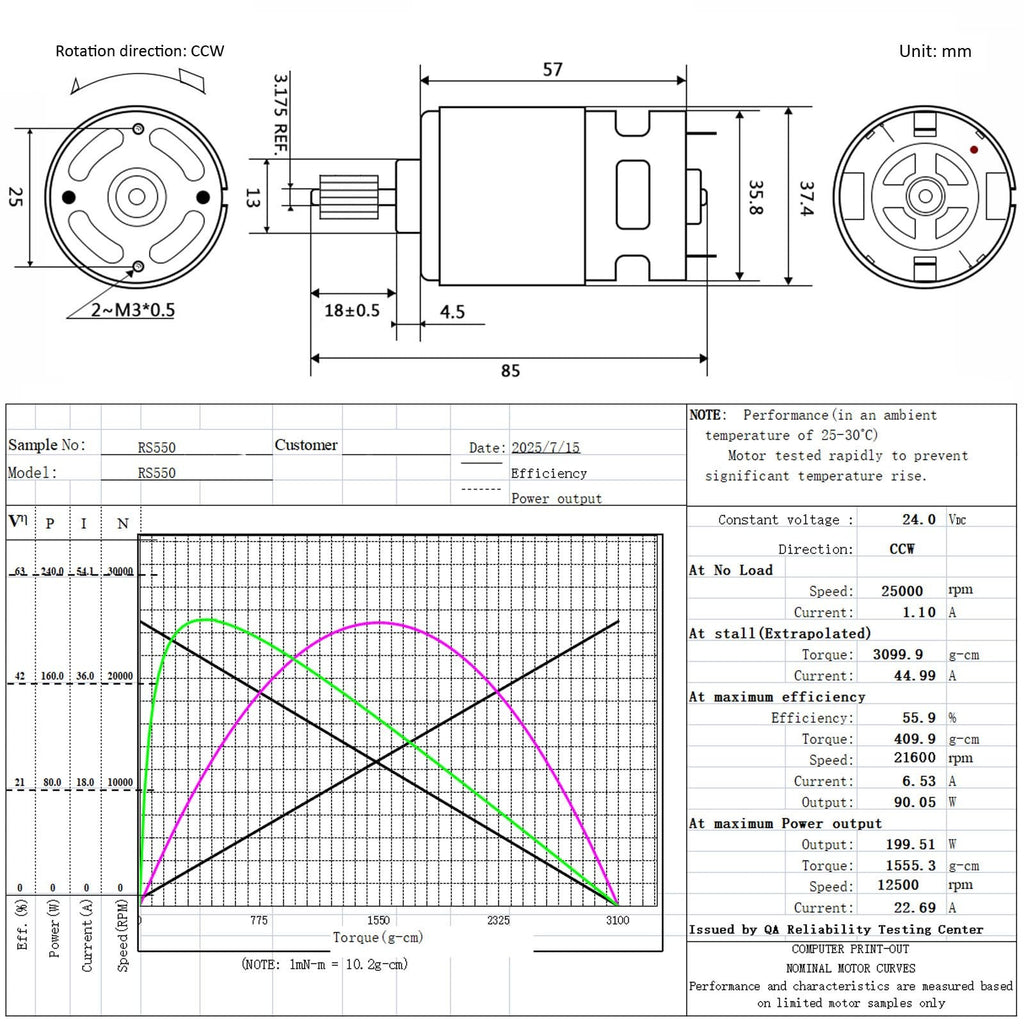

Product Name: 8-19 Teeth RS550 DC Motor

Model Number: RS550

Voltage: 24V DC

No Load Current: 1.1A

Working Current: 6.53A

No Load Speed: 25000RPM

Torque: 1555.3g.cm

Power: Max. 200W

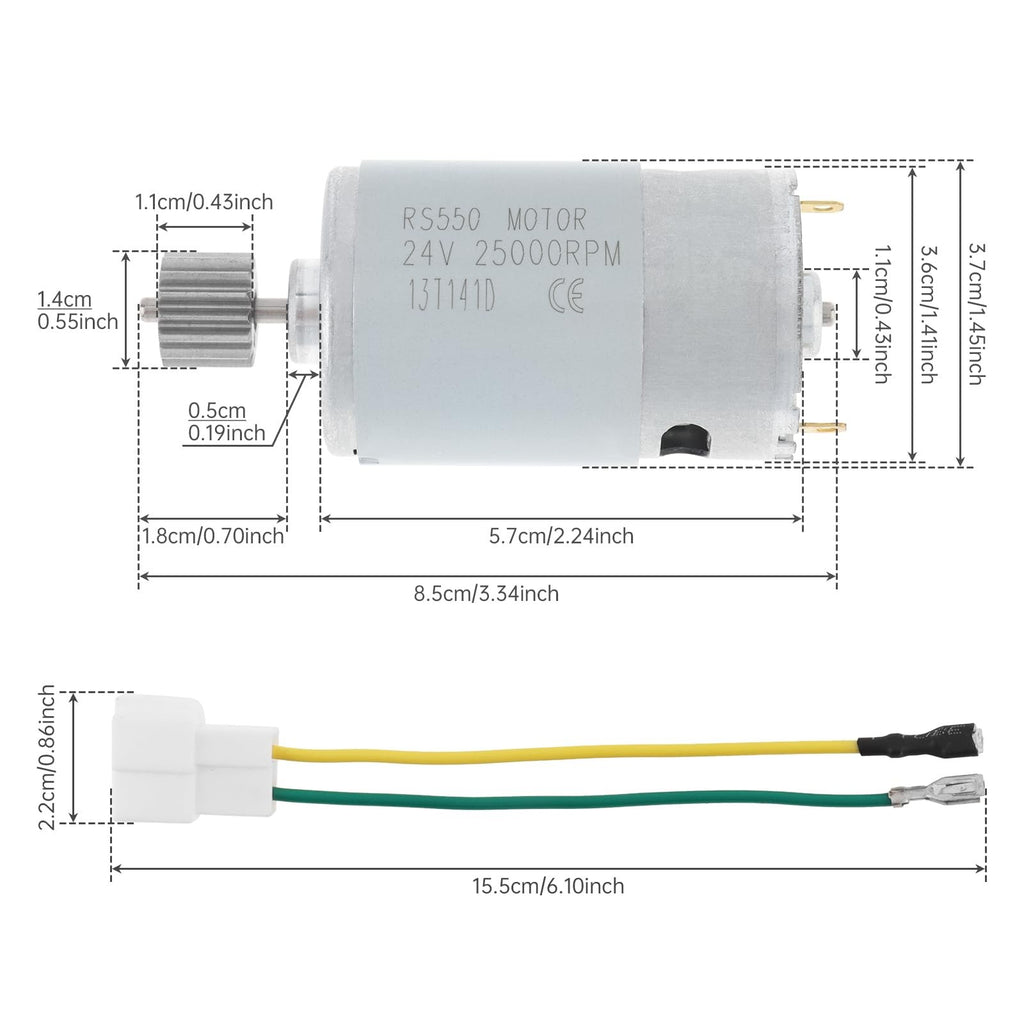

Shaft Diameter: 3.17mm

Shaft Total Length: 85mm

Output Shaft Length: 18mm

Gear Teeth: 19 Teeth

Gear Diameter: 16.8mm

Gear Face Width: 11.3mm

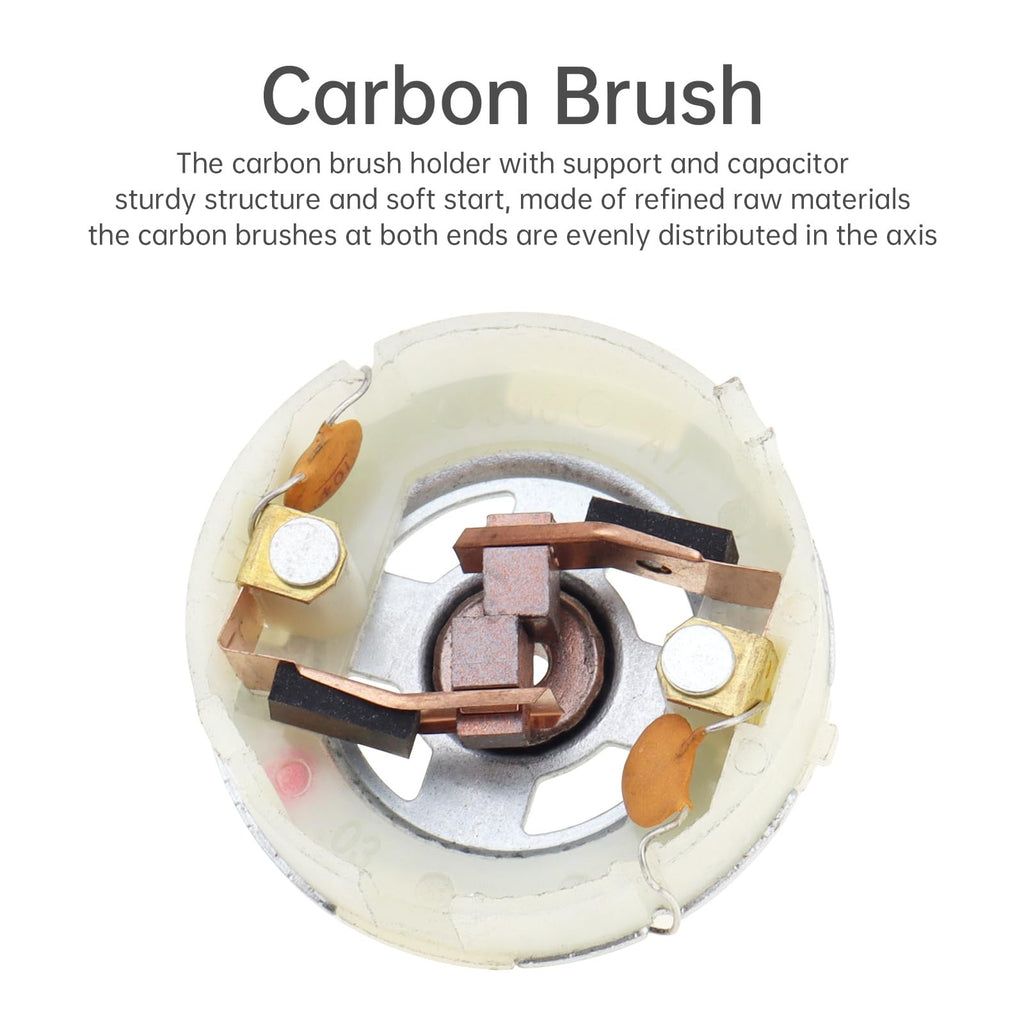

Commutation: Brush

Installation Screw Size: M3 (Not included)

Installation Screw Spacing: 25mm

Rotation Direction: CW/CCW

Stall Current: 45A

• 24V 25000RPM high-speed DC motor, applicable voltage range: 12-24V. At 12V, speed is approximately 12000RPM, effectively increasing torque and enhancing climbing ability for ride-on vehicles.

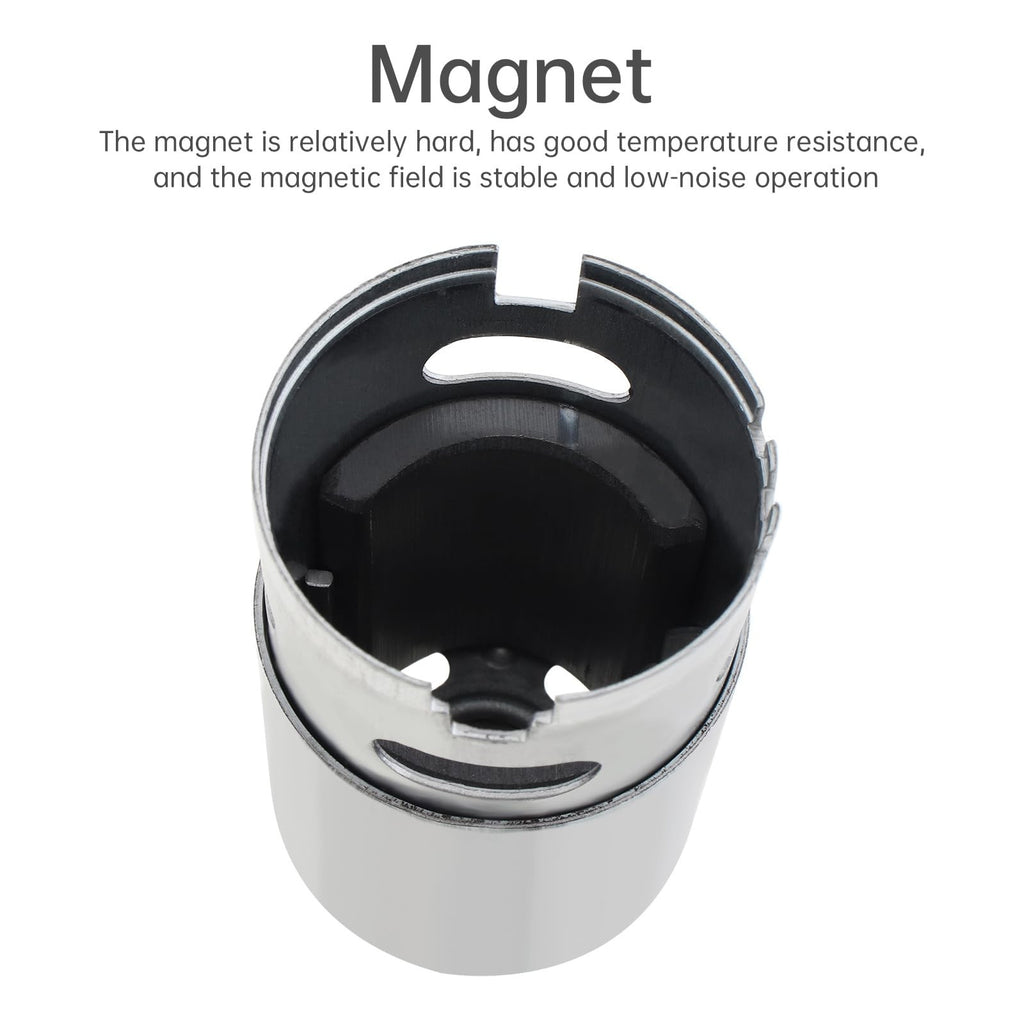

• Constructed with a stainless steel shell, pure copper coil for high efficiency, strong output power, and stable performance. Features a cooling fan for optimal heat dissipation.

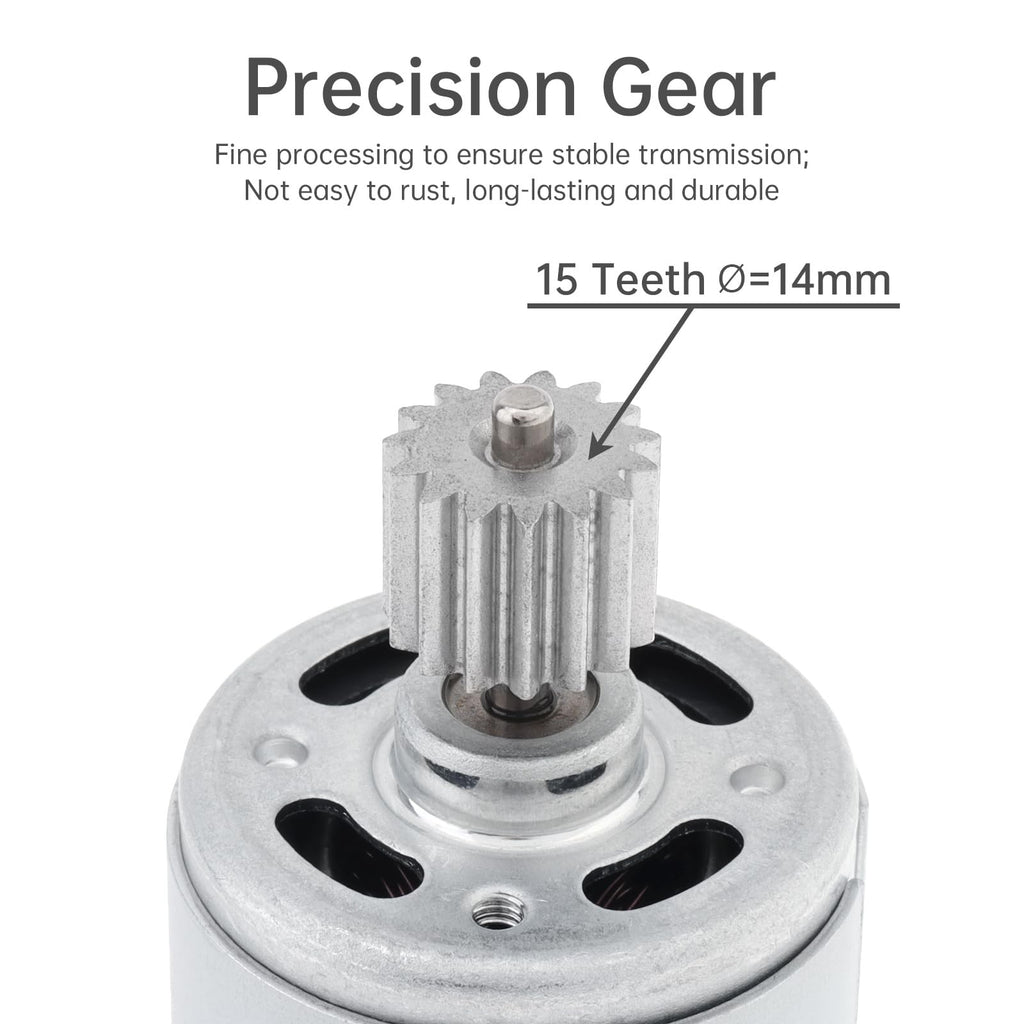

• Precision machined 8-19 Teeth Metal Gear, sturdy and wear-resistant, securely assembled on the motor shaft, requiring no manual assembly.

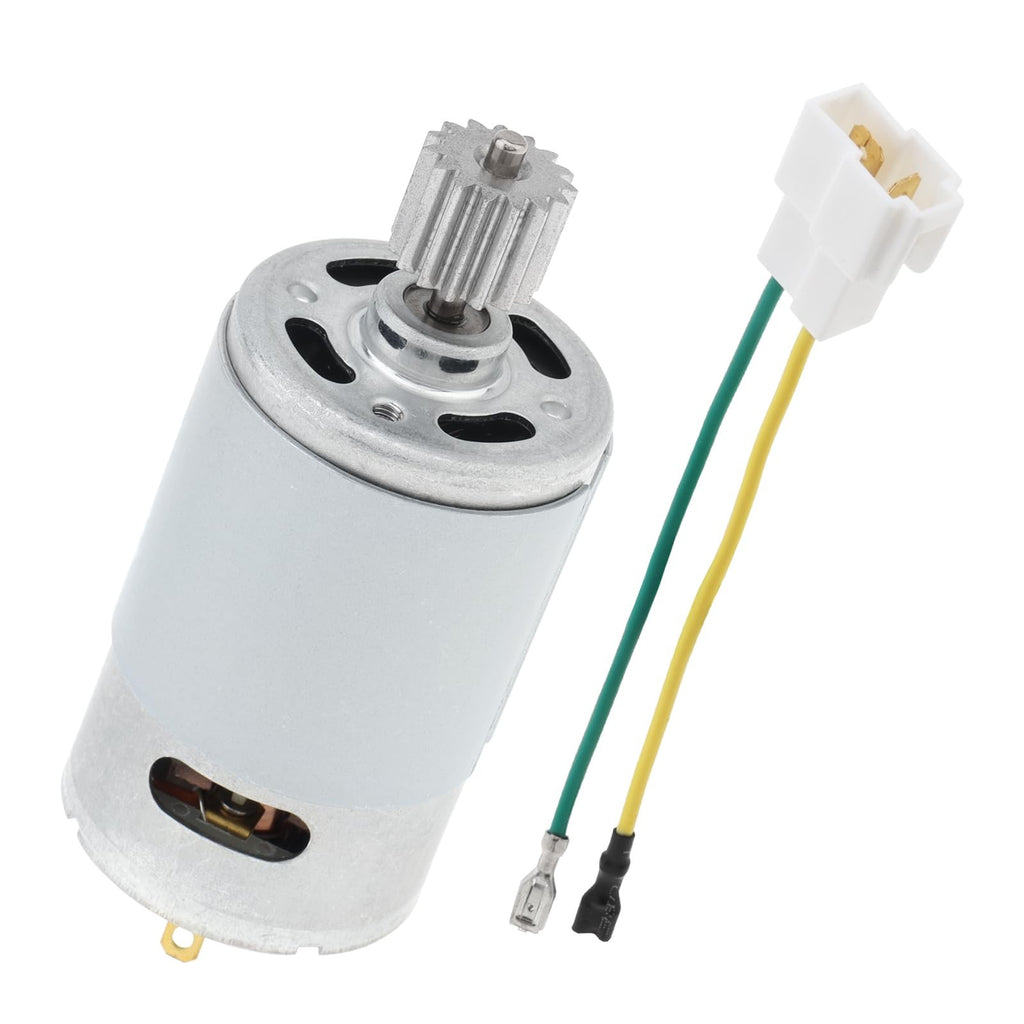

• Easy installation with the motor front fixed using 2 x M3 screws. Welding-free connecting wire included for straightforward replacement and installation.
• Ideal for electric ride-on vehicles, battery-powered cars, electric go-karts, electric ATVs, electric rock crawlers, and various DIY electrical projects. Perfect for replacing damaged or rusty motors.

How to Choose a Motor for Electric Ride-On Vehicles:

1. Confirm motor model is RS550/RS555, or measure motor diameter (approx. 37.2mm), body length (approx. 57mm), and shaft total length (approx. 85mm).
2. Confirm original motor voltage and choose a motor with the same or similar voltage.
3. Confirm gear teeth count and verify outer diameter and face width of gears are the same or similar.

Note:

• RS550 motors have multi-voltage and multi-gear teeth combinations, adaptable to many electric vehicles. Please compare original motor model and gear before purchasing to ensure compatibility.
• Rated voltage is 24V, with a normal operating range of 12-24V DC. Lower voltage reduces speed; do not exceed 24V to avoid damage.

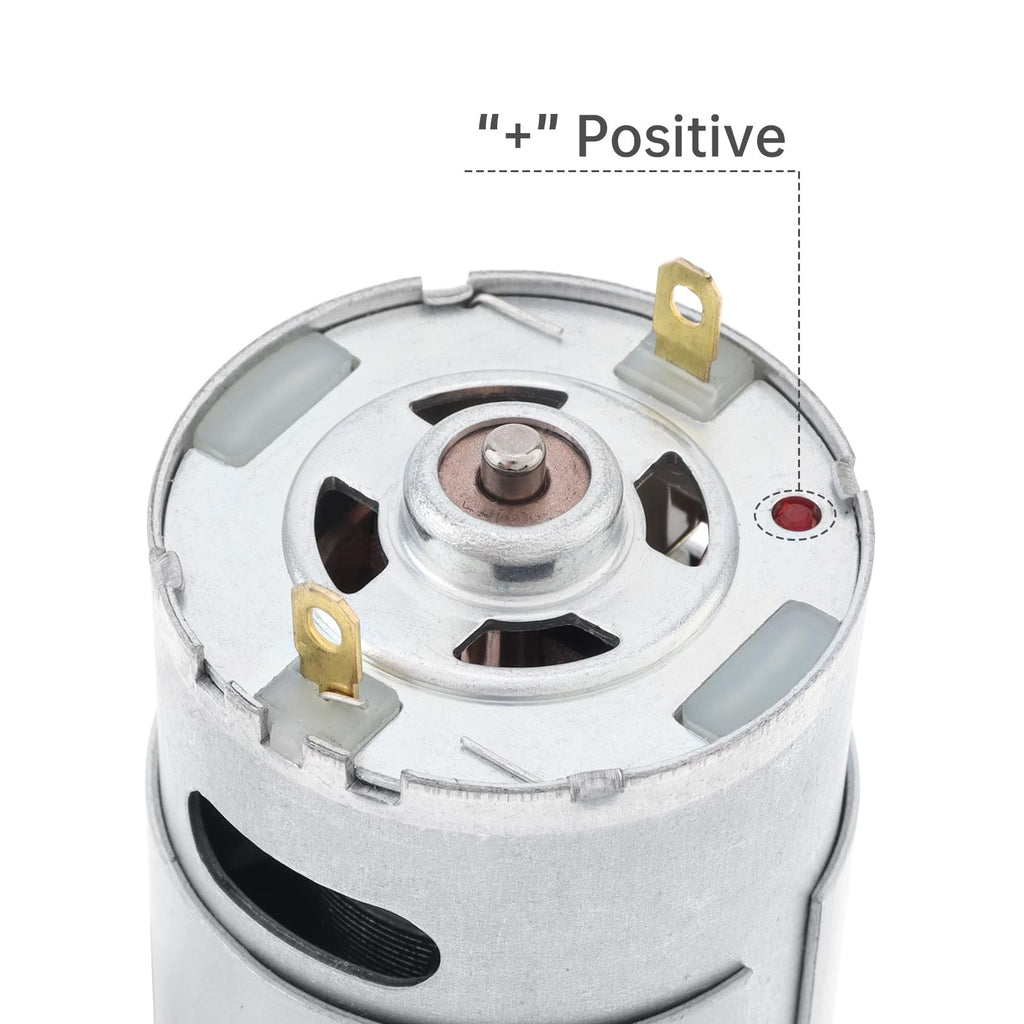

• Supports forward/reverse rotation; reverse direction by swapping positive/negative connections.
• Can replace RS550 and RS555 model motors (interchangeable).
