12Volt 24Volt Steering Wheel

Specifications

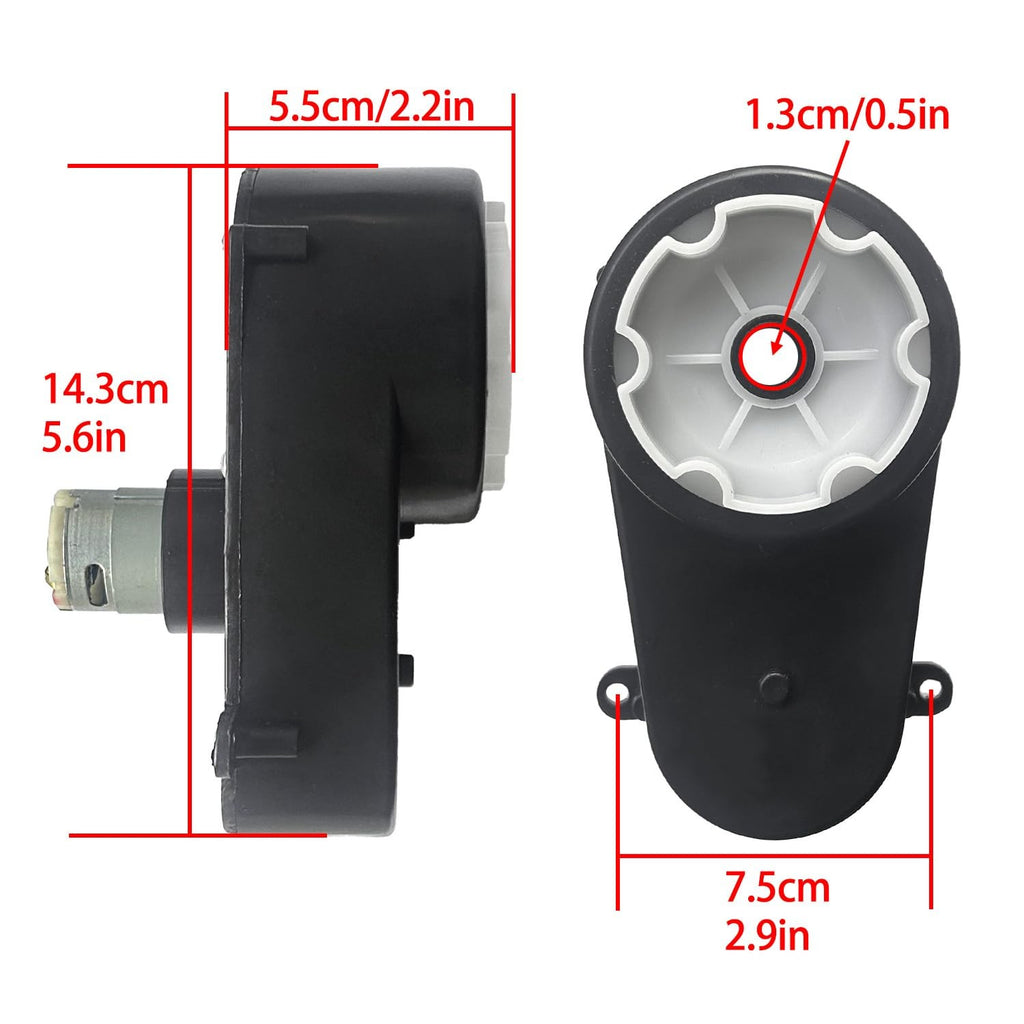

• Dimensions: 9.5 x 11.5 x 17.5 cm

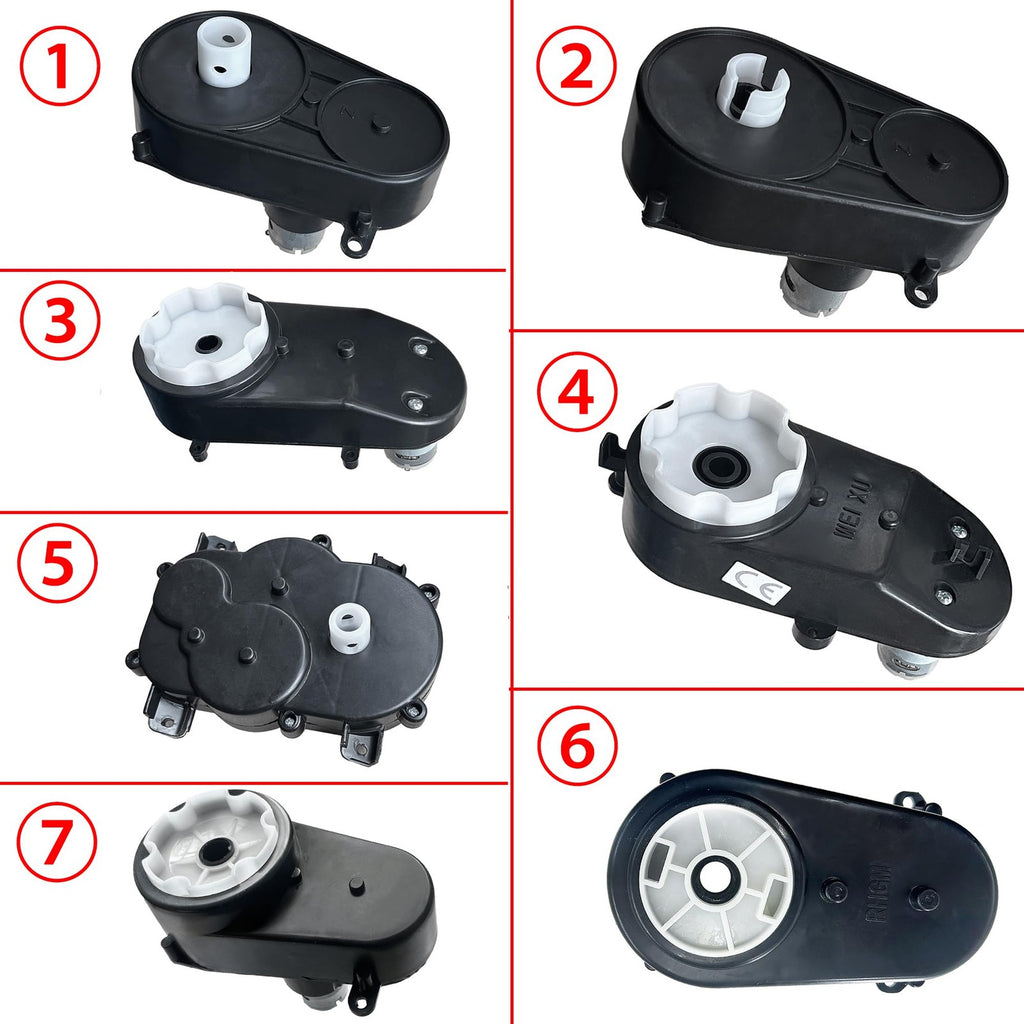

• Available Apertures:
  • NO.1, NO.2, NO.7: 1.3cm / 0.5in
  • NO.3, NO.4, NO.5: 1.0cm / 0.4in
  • NO.6: 1.2cm / 0.48in
• Material: High-quality composite materials

Features

• Compatible with 12V-24V RS8380 RS390 Steering Wheel Motor Gearbox for Kids' Power Wheels Ride-On Toys.
• Micro-steering motor gearbox allows for smooth left and right turns.
• Wide variety of options, suitable for 90% of Power Wheels toy cars.
• Enhanced gearbox shell and internal gears for improved durability.

Installation Guidelines

• Inspect the original steering motor gearbox (typically located under the steering wheel).
• Ensure consistent appearance and correct dimensions, especially the gearbox aperture.
• The diameter of the steering shaft must be smaller than the gearbox aperture for installation.
• For 12V power supply, select the 12V motor gearbox; for 18V-24V power supply, select the 24V gearbox.
• Before installation, verify the steering sequence. If the motor operates incorrectly, swap the cables on the steering motor.

Important Notes

• Purchase based on the original gearbox appearance.
• Pay attention to size and voltage before purchasing.
• Test the turning sequence before connecting cables.
