12V Key Ignition Start Switch
Item ships from the U.S.
1-5 Days Delivery
Product Description
- Power Switch: 1
- Red LED Light: 2

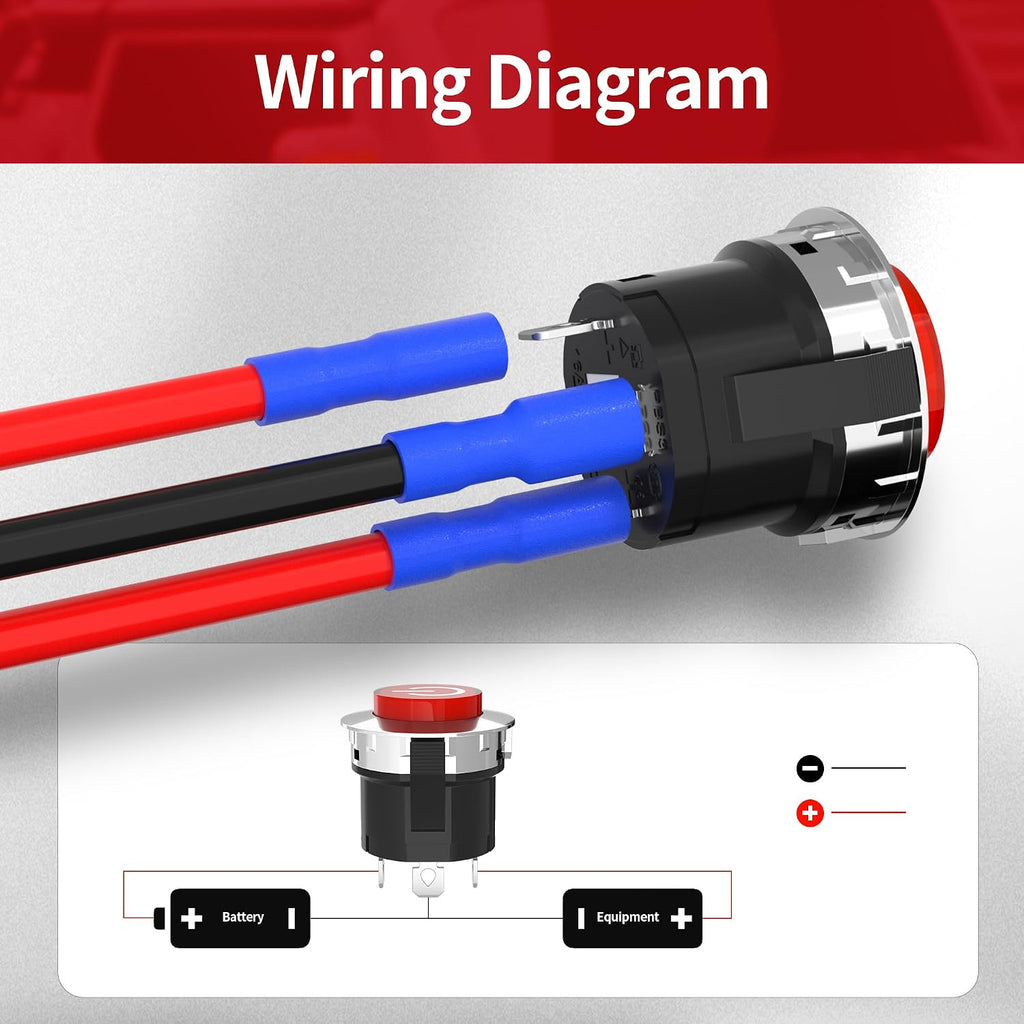

- Circuit Diagram: Included
Features
- Works Perfect: 12V key start power switch; press the button for a moment to start powered wheel cars.

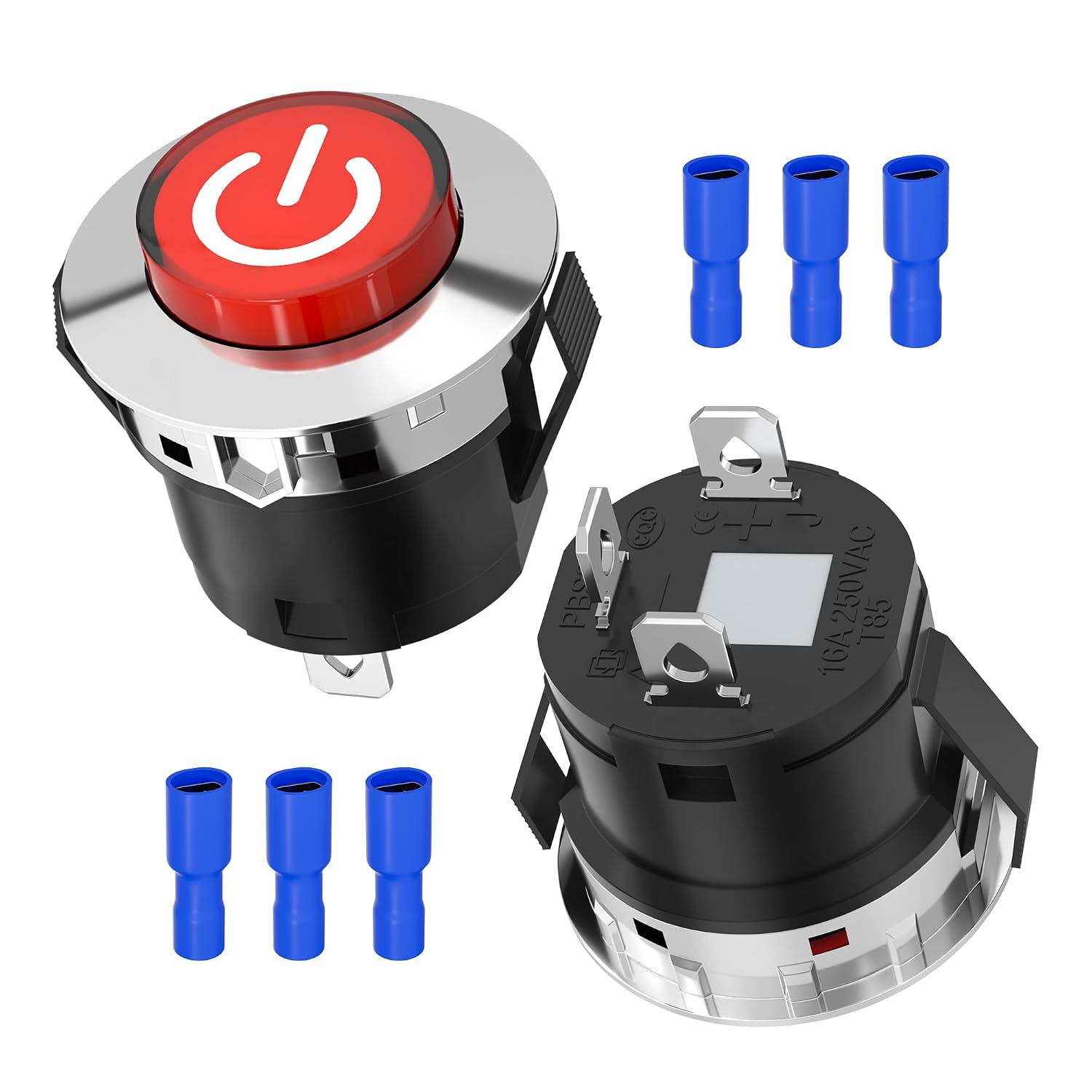

- What You Get: 2 x 12 volt push button switches and 6 x terminals.

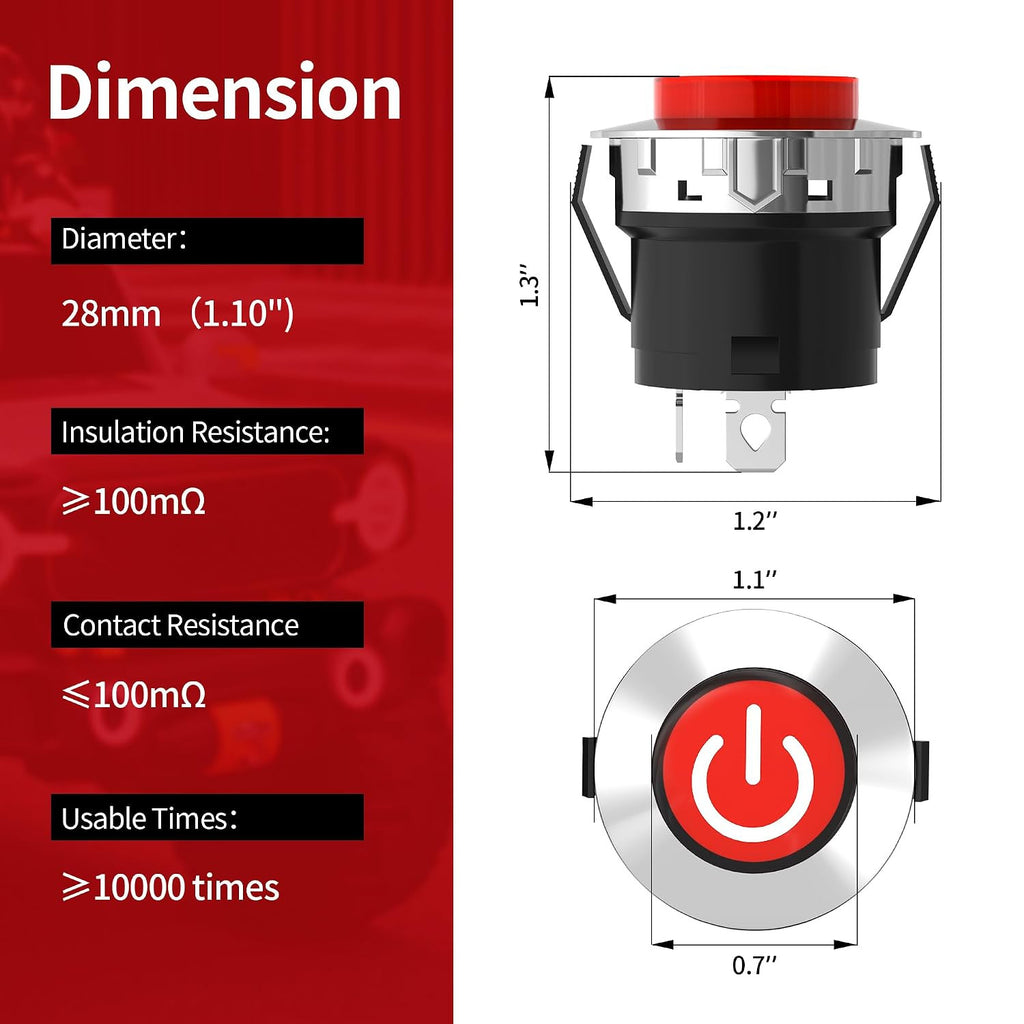

- Easy Installation: Outer switch diameter is 28mm (1.1"). Remove existing switch and unplug 3 quick connectors to replace with new switch.
- Compatibility: Ensure your car is compatible with this one-button start switch and has the same appearance as the original parts.
- Wide Application: Suitable for specific ride-on cars.
Specifications
| Operation Mode | ON-OFF |
| Current Rating | 20 A |
| Operating Voltage | 12 volts |
| Contact Type | Normally Open |
| Connector Type | Plug In |
| Switch Type | Push Button |
| Terminal | Blade |
| Circuit Type | 1-way |
| Mounting Type | Surface Mount |
| Actuator Type | Push Button |
| Insulation Resistance | 100 ohm |
| Number of Positions | 2 |
| Controller Type | Push Button |
| Control Method | Touch |
| Compatibility | Universal |
| Control Type | Button Press |
| Color | Start Power Switch for Car |
| Item Dimensions | 1 x 1 x 0.68 inches |
| Unit Count | 1 Count |
| Material Type | Plastic |
| Contact Material | Silver |
| Model | PBS-426AD-C+FDFD2-187(8) |
| Included Components | 2 x Button Start Switch |
| Part Number | PBS-426AD-C+FDFD2-187(8) |
