Description
12V JGY370 DC Gearmotor with 40:1 Worm Reducer - 150RPM No Load Performance
Features:
- High Torque Output: Delivers robust torque up to 30kg cm for demanding applications requiring strong rotational force.
- Self-Locking Function: Features a FOR worm gear design that stops reverse rotation for safety and stability.

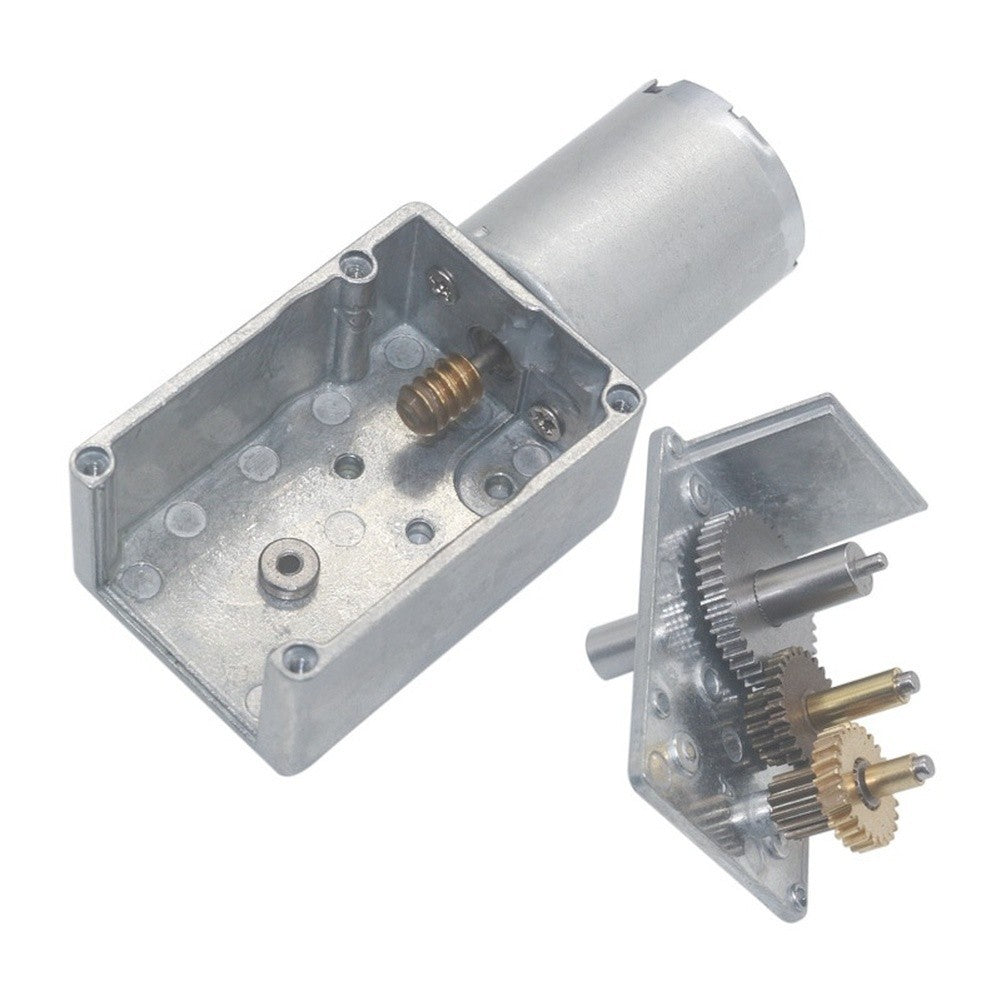

- All-Metal Gear Construction: Built with metal gears and a copper worm shaft to endure heavy loads and resist wear.
- Control Capability: Works with external controllers to adjust from 0 to the chosen no-load RPM for versatile use.
- Wide Voltage Compatibility: Operates efficiently at 12V with low current draw, suitable for continuous operation in smart devices.
Specifications:
- Product Name: Metal gear reduction motor
- Material: Metal
- Gear Ratio: 40:1
- No-load Current: ≤60mA
- No-load RPM: 150
- Rated Torque: 1.2 kg·cm
- Rated RPM: 100
- Rated Current: 0.5A
- Maximum Torque: 2.5A
- Stall Current: 1.3A
- Color: Silver

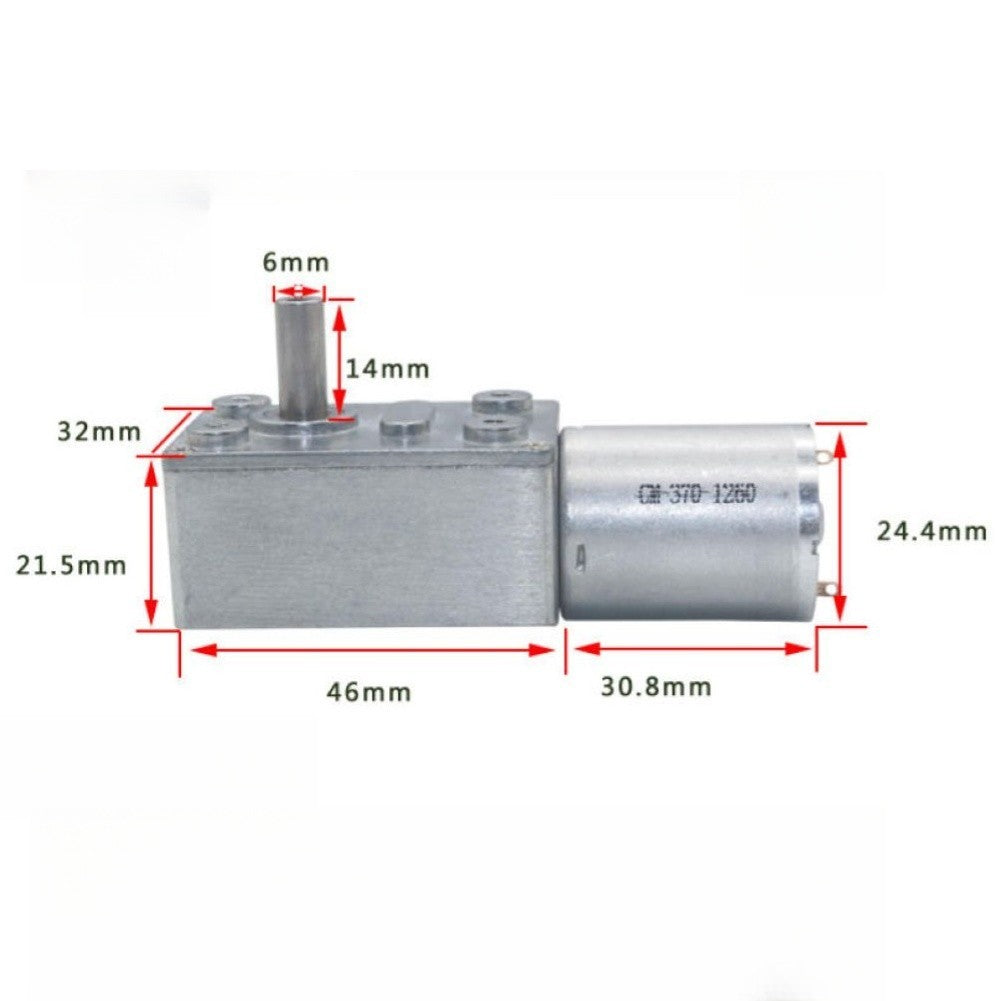

- Size: 28 x 15.5 x 4.5 cm
Package Content:
- 1 x Metal gear reduction motor
Note:
- The actual color of the item may be slightly different from the pictures shown on the website due to various factors such as display brightness.
- Please allow slight manual measurement deviation for the data.
