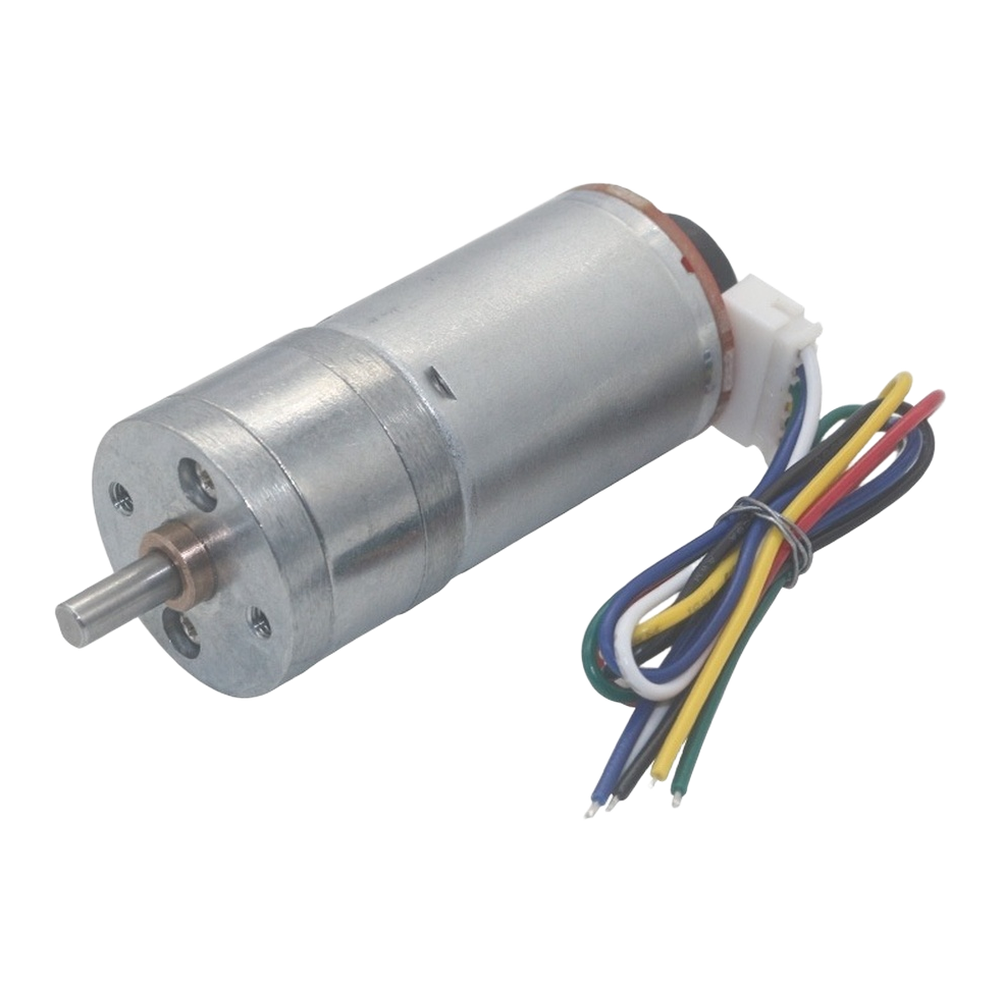

12V High Torque DC Gear Motor with Encoder for DIY Robot Motion Control

Product Description

Features:

• Multiple Gear Ratio Options & Stable No-Load: This 12V JGA25-370-EN DC reduction motor provides various gear ratios for selection. The 21.3K version delivers 260-280 RPM no-load; 34K runs at 150-180 RPM; 45K reaches 110-130 RPM; 75K offers 70-85 RPM. Ideal for self-balancing trolley projects.
• Built-in Encoder for Real-Time Detection: Equipped with an encoder for precise closed-loop control and position tracking, enhancing motion control accuracy for smart vehicles, robotic arms, and automated equipment.
• High Torque & Reliable Gear Structure: Features a robust 25GA370 gear reduction structure with a sturdy metal gear set, maintaining strong continuous torque and reducing vibration and noise during operation.
• DC 12V Standard Working Voltage: Designed for standard DC 12V power supply input, compatible with common lithium batteries, DC adapters, and mobile robot power systems. Compact 25mm housing for easy installation.
• Extensive DIY & Automated Equipment Applications: Ideal for self-balancing cars, smart tracked cars, robotic arms, rotating monitoring brackets, and various small automated control projects.

Specifications:

• Product Name: JGA25-370 series DC geared motor
• Rated Voltage: DC 12V
• No-load Current: 0.07 A
• Rated Current: 0.3 A
• Stall Current: 1.8 A
• Motor Weight: 83g - 90g
• Gear Ratio 21.4K: No-load 280RPM, Rated 215RPM, Rated torque 0.4Kg.cm, Stall torque 2Kg.cm, Length: 19mm
• Gear Ratio 34K: No-load 170RPM, Rated 131RPM, Rated torque 0.69Kg.cm, Stall torque 3.3Kg.cm, Length: 21mm
• Gear Ratio 45K: No-load 130RPM, Rated 100RPM, Rated torque 0.9Kg.cm, Stall torque 4.4Kg.cm, Length: 21mm
• Gear Ratio 74.8K: No-load 77RPM, Rated 59RPM, Rated torque 1.5Kg.cm, Stall torque 5.5Kg.cm, Length: 23mm
• Material: Iron, aluminum alloys
• Color: Silver
• Size: 31 x 24.4 x 24.4 mm

Package Content:

1 motor + 1 encoder

Note:

1. The actual color of the item may vary slightly from the pictures due to display brightness and lighting.
2. Please allow slight manual measurement deviation for the data.
